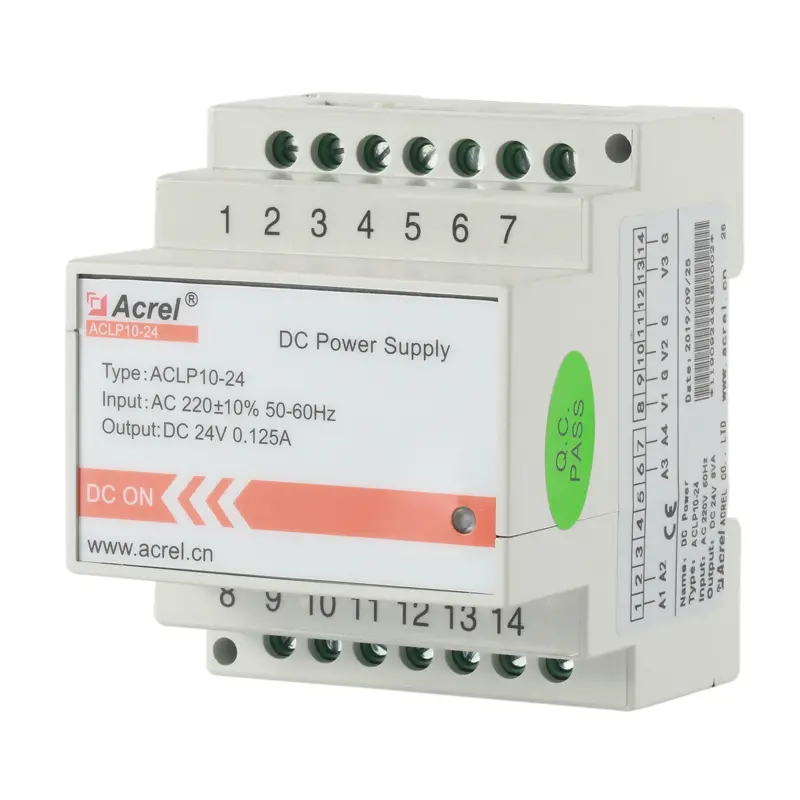

ACLP10-24 DC power supply
The Acrel ACLP10-24 auxiliary power supply provides 24 V DC power to Acrel AID series devices with a maximum total power consumption of 3 VA. The module is rail-mounted and installed on the same rail as the insulation monitors.
Product info
Technical data
|
Input voltage |
AC 220V±10% |
|
frequency |
50/60Hz |
|
Rated power |
3W |
|
Output voltage |
DC 24V±5% |
|
Voltage regulation factor |
≤30% |
|
Temperature rise |
≤20℃ |
|
dielectric strength |
4000 V AC/minute |
Product display
