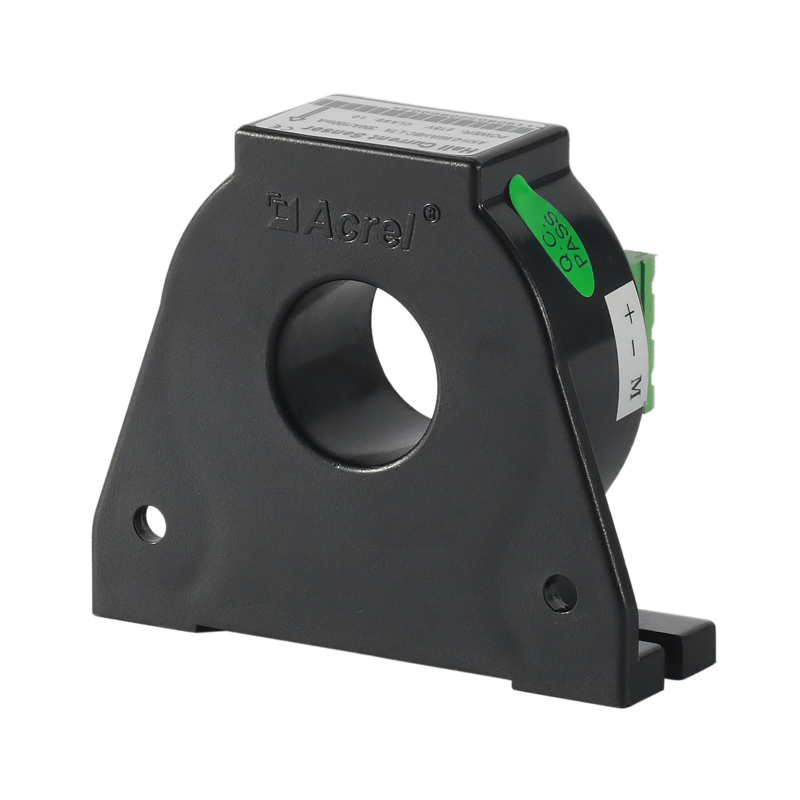

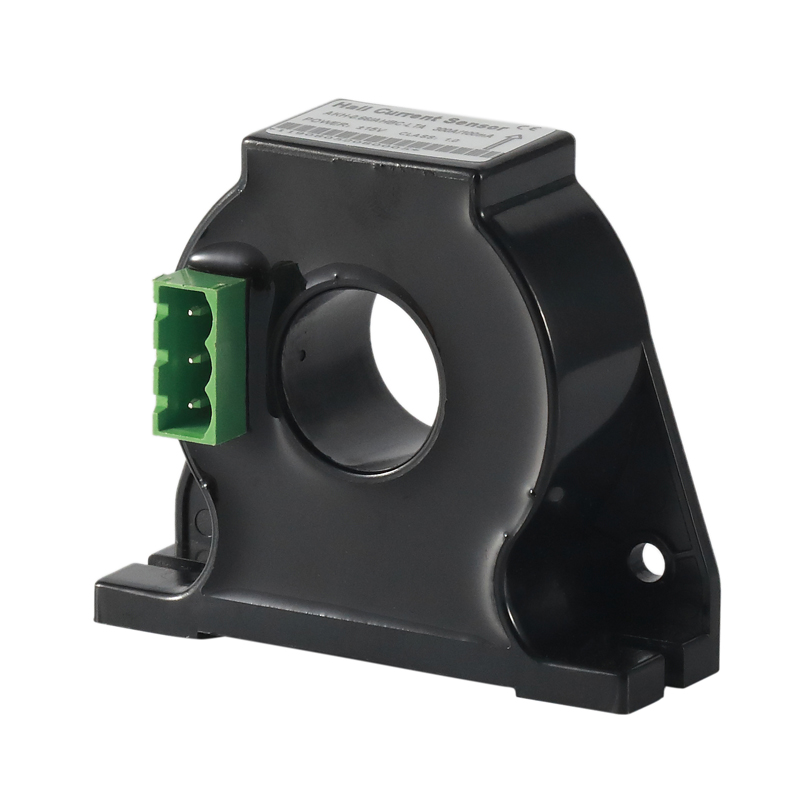

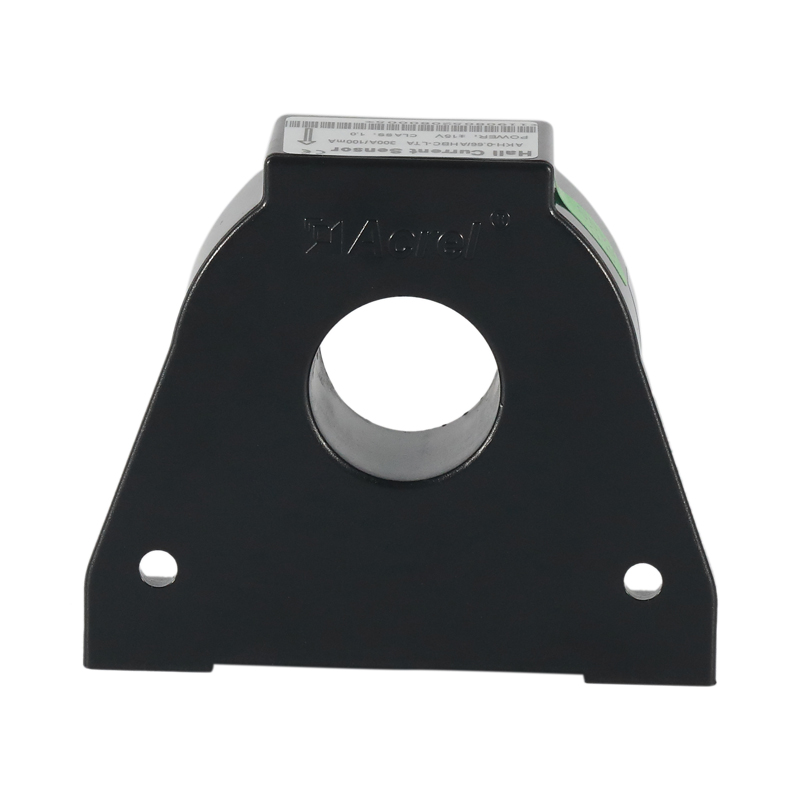

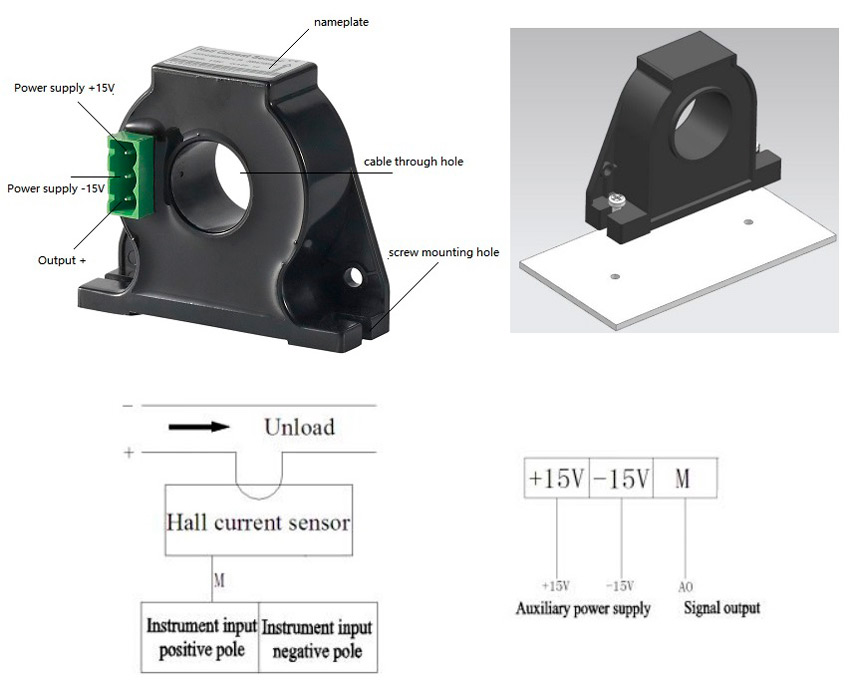

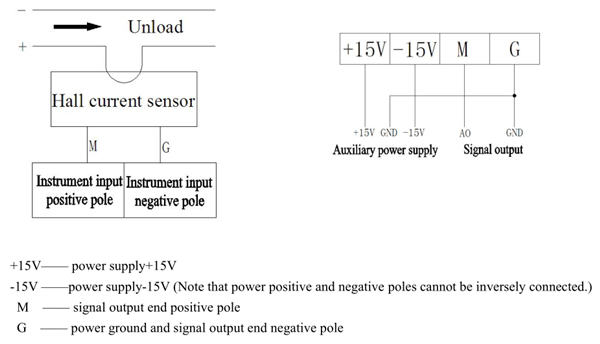

Acrel AHKC series Hall Effect current sensors are mainly suitable for the isolation conversion of complex signals such as AC, DC, and pulse. Adopting the Hall effect principle, the converted signal can be directly captured and accepted by various acquisition devices such as AD, DSP, PLC, and secondary instruments. It features fast response time, wide current measurement range, high precision, strong overload capacity, good linearity, and strong anti-interference ability. The AHBC-LTA closed-loop Hall Effect current sensor can measure AC, DC, pulse, and other complex current signals. It features excellent accuracy, low temperature drift, wide frequency bandwidth, and optimized response time.

Closed type Hall current sensor, accuracy class: 0.5 class
Rated input current: 100–300 A
Rated output current: 50mA/100mA
Opening: 20 mm
Supply voltage: ±15 V
Excellent accuracy, low temperature drift, wide frequency bandwidth, optimized response time

PRODUCT INFO
TECHNICAL DATA
Product display
DOWNLOAD

Offer

Product info

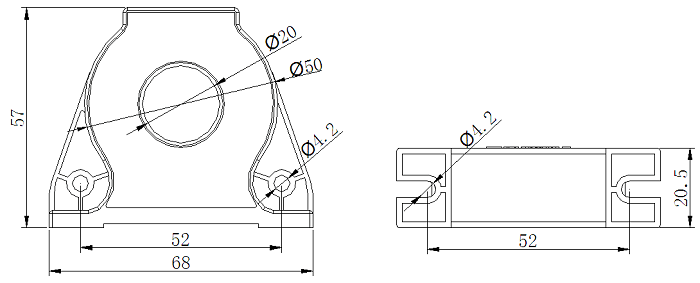

Size specification	Outline size (mm)	Diameter (mm)	figure
AHKC-E	537216	Φ20mm	Fig.1
AHKC-EA	537216	Φ40mm	Fig.1
AHKC-EB	537216	Φ60mm	Fig.1
AHKC-LT	9073.525	Φ32.5mm	Fig.2
AHKC-C	/	31*13	Fig.3
AHKC-BS	4332.519	20.5*10.5	Fig.3
AHKC-BSA	4332.519	20.5*10.5	Fig.3
AHKC-F	745722	43*13	Fig.4
AHKC-FA	9460.526.5	52*15	Fig.4
AHKC-HAT	9476.524	52*32	Fig.4
AHBC-LTA	*685720.5*	Φ20mm	Fig.2
AHBC-LT1005	11911240	Φ40mm	Fig.2
AHBC-LF	15513545	Φ60mm	Fig.2

Technical data

Nominal input current RMS	100	200	300	A
Measure current range	300 (±18V, 20Ω)	600 (±18V, 30Ω)	900 (±18V, 20Ω)	A
Turns Ratio	1:1000	1:2000	1:3000
Resistance measurement ± 12V	@±100Amax 80(max)	@±200Amax 80(max)	@±300Amax 76(max)	Ω
	@±200Amax 25(max)	@±500Amax 20(max)	@±600Amax 22 (max)	Ω
±15V	@±100Amax 110(max)	@±200Amax 120(max)	@±300Amax 100(max)	Ω
	@±200Amax 40(max)	@±500Amax 30(max)	@±600Amax 36(max)	Ω
Rated power currents RMS	50±0.5%	100±0.5%	100±0.5%	mA
precision	0.5			Class
Tension	±15			V
Electricity consumption current	20+Is			mA
Zero current displacement	±0.2			mA
reaction time	＜1			µs
linearity	≤0.05			%FS
Insulation voltage	3.5kV/50Hz/1min			kV
bandwidth	100			kHz
Secondary coil resistance	26	26	56	Ω
operating temperatur	-40～85			℃
Storage temperature	-40～85			℃
