| Hall sensor | |
| Rated input current: | AC/DC 0~1000A |
| Nominal output voltage: | DC ±5V/±4V |

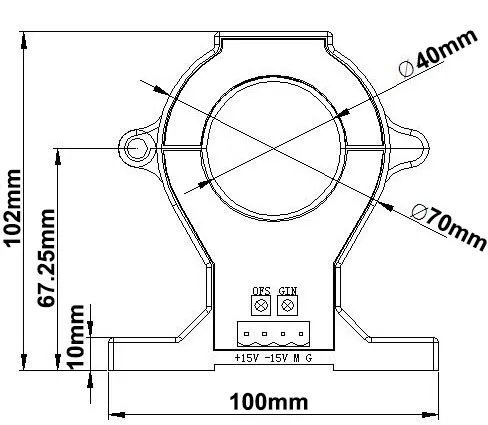

| Hole diameter: | φ40mm |
| Measurement accuracy: | Class 1.0 |
| Power supply: | DC ±12V/±15V |
| Zero point shift voltage: | ±20mV |
| Offset voltage drift: | ≤±1.0mV/℃ |
| Linearity: | ≤0.2%FS |
| Response time: | ≤5us |
| Bandwidth: | 0～20kHz |
| Insulation voltage: | 3.5kV/50Hz/1min |
| Operating temperatur: | -40℃～85℃ |
| Storage temperature: | -40℃～85℃ |
| Consumption: | ≤0.5W |

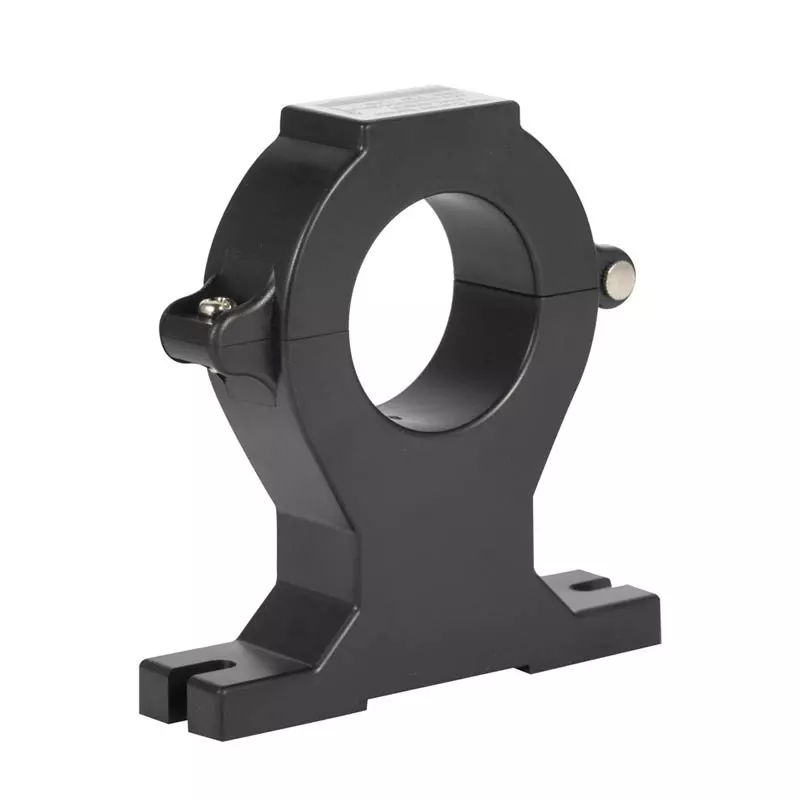

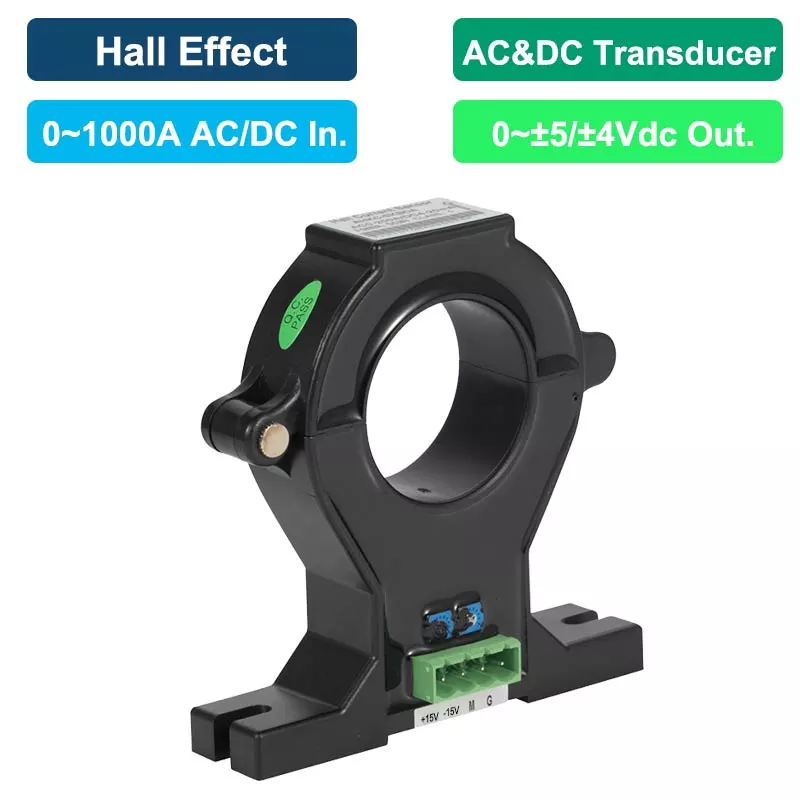

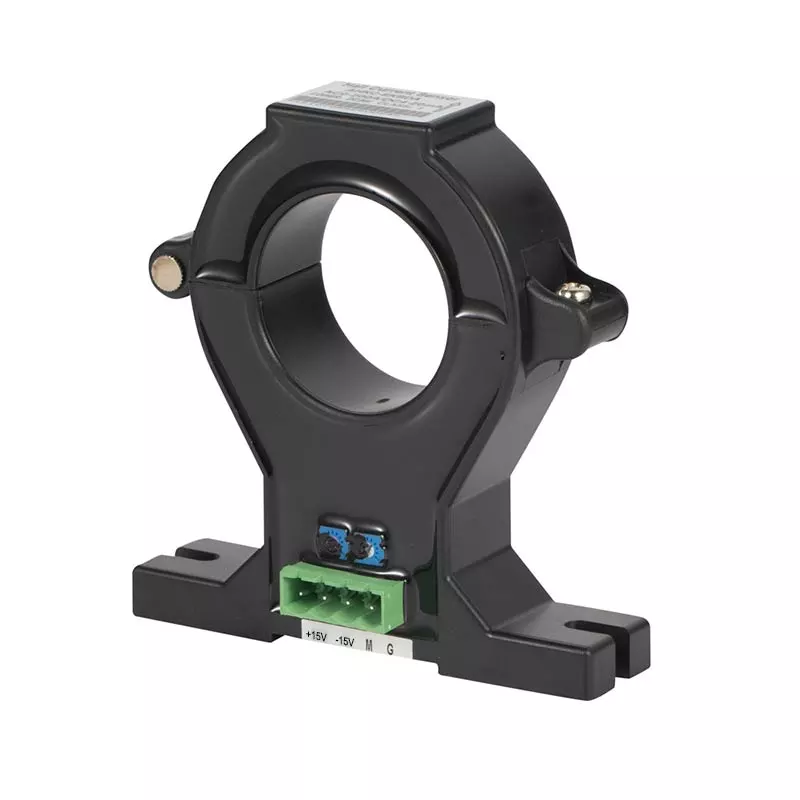

AHKC-EKB split-core Hall-effect current sensor
AHKC-EKB split core hall effect current sensor, suitable for current monitoring and battery application, inverter power supply and solar power management system, DC panel and DC motor drive, electroplating, welding application, frequency converter, UPS servo control and other system current signal acquisition and feedback control.
Product info
Technical data
Product display
