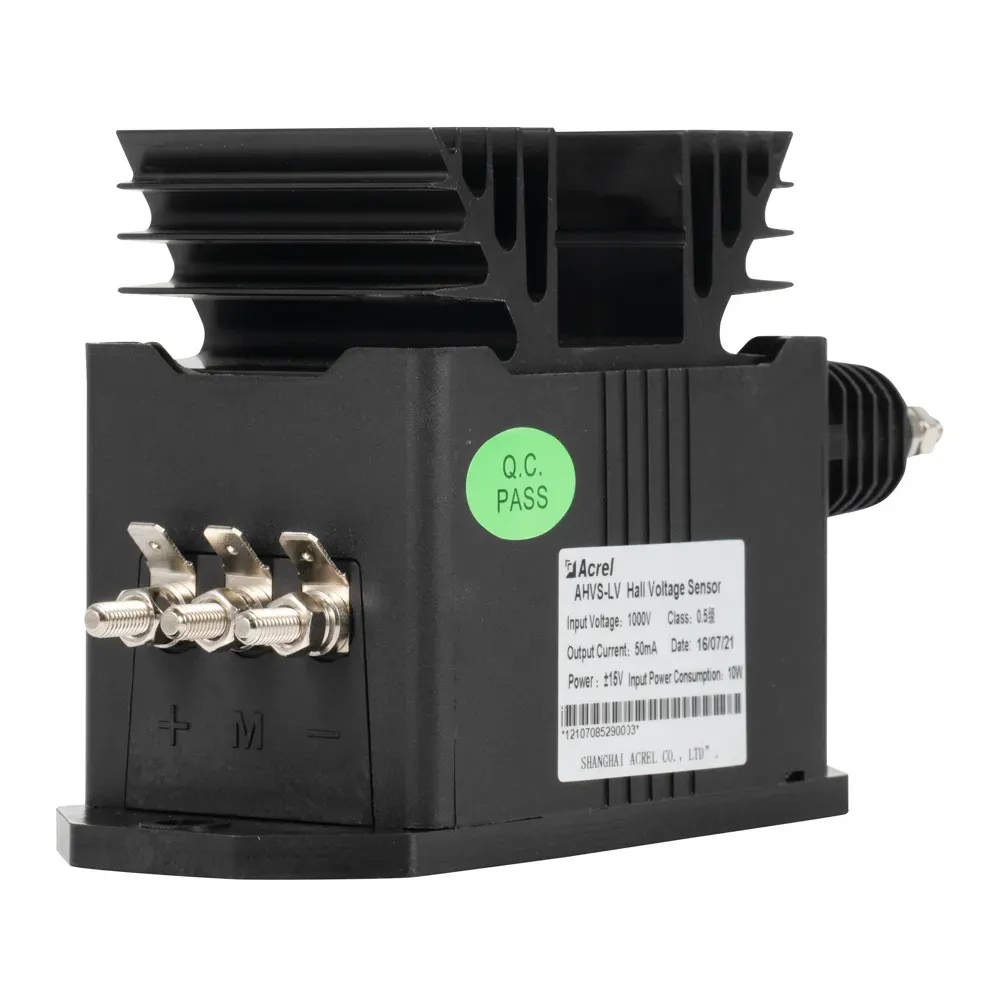

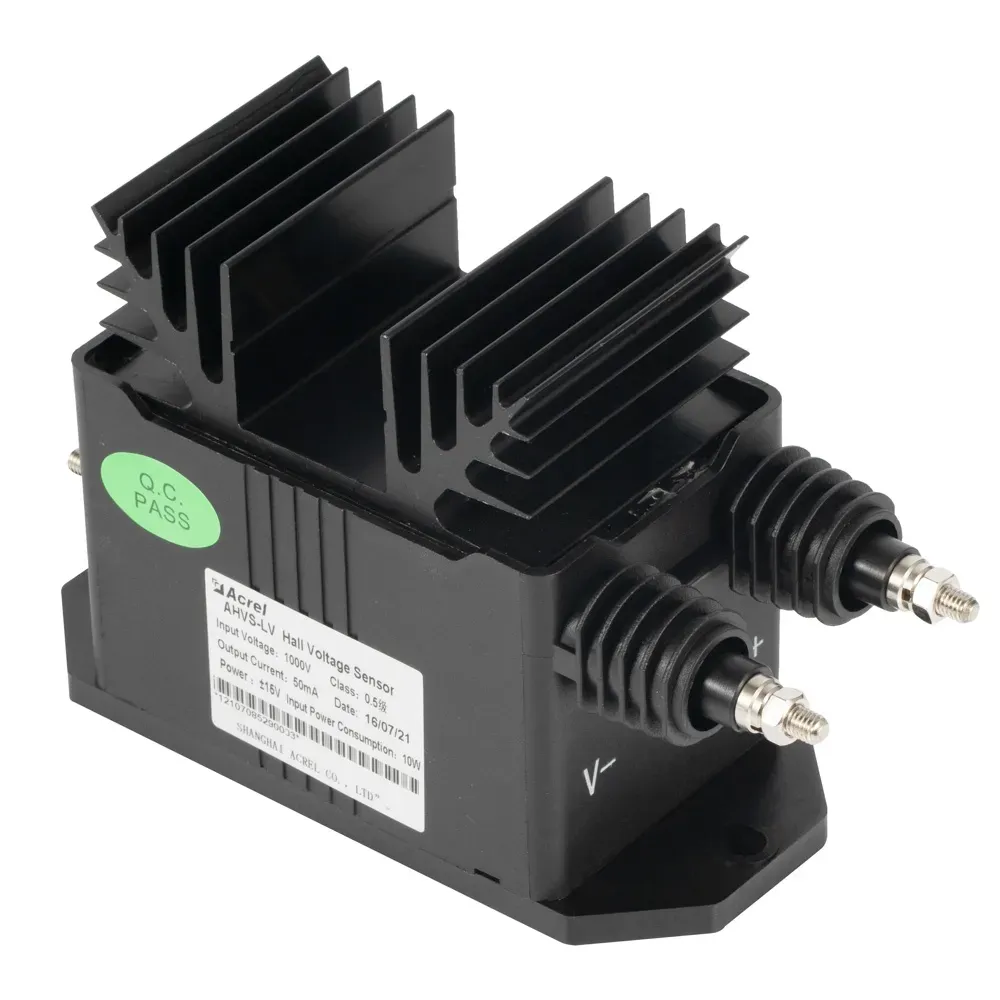

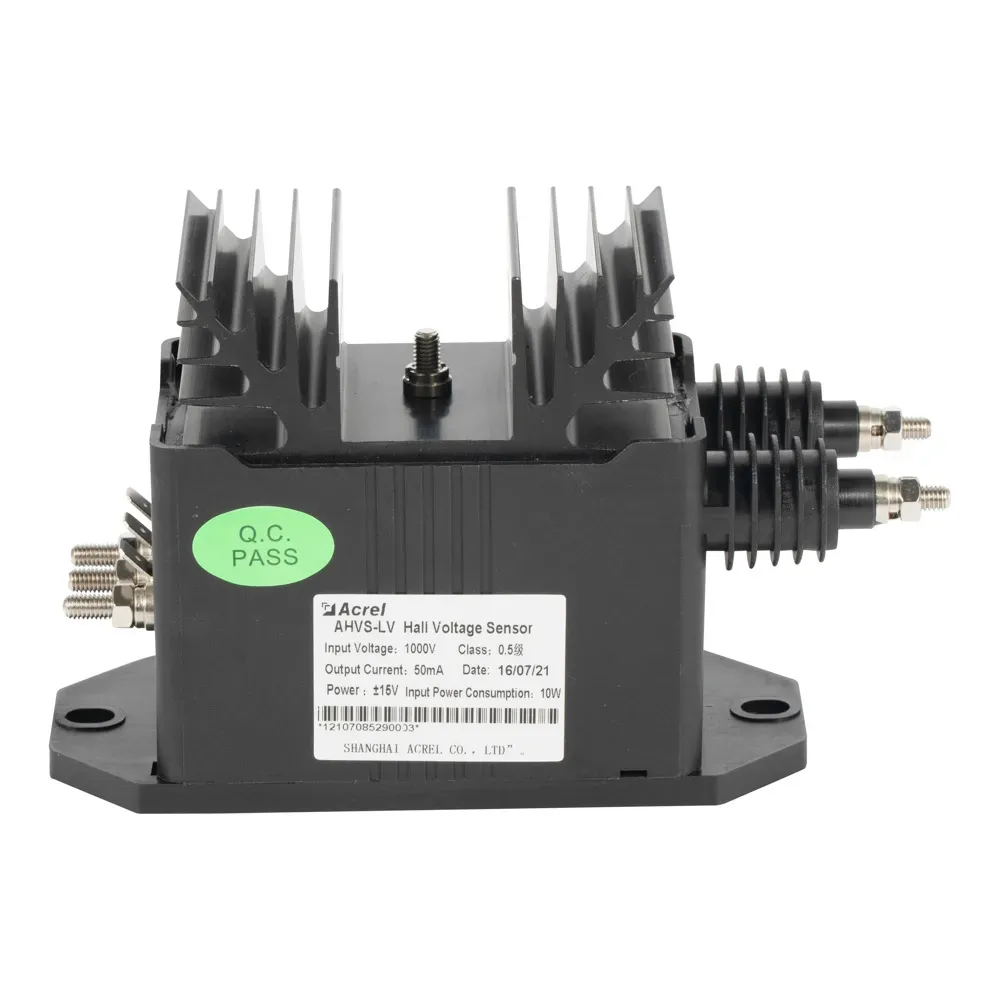

AHVS-LV DC Hall voltage sensor

The AHVS-LV series Hall voltage sensors are isolated between the primary and secondary stages and can be used to measure DC, AC, and pulse voltages. They feature high accuracy, high linearity, high integration, small size, and simple structure, stable long-term operation, and adapt to various working environments. They are widely used in electrical equipment system control and testing in electric power, petroleum, coal mining, chemical industry, railway, communications, building automation, and other industries.

  • Rated input: DC1000-4000V
  • Auxiliary power: ±15V-±24V
  • Nominal output: ±50mA
  • Used for measuring voltage, Fast response, High overload capacity, High precision, The primary and secondary sides are highly insulated

Offer

Product info

Technical data

Nominal input voltage 1000 2000 3000 4000 V
Measure the voltage range 2000 4000 6000 6400 V
Total input power 10 10 10 10 W
Rated input current 10 5 3.33 2.5 mA
Turns Ratio 10000:2000 20000:2000 30000:2000 40000:2000
Rated output current 50±0.5%FS mA
Supply voltage ±15～±24(±10%) V
Output load Power supply ±15V Power supply ±24V
0～230 0～390 Ω
Offset current ±0.1 mA
Temperature drift ≤200 ppm/℃
linearity ≤0.1 %FS
response time ≤200 US
Insulation voltage Withstands a pressure between primary and (secondary pole + heat sink) of 12 kV, leakage current setting 2 mA 1 min
operating temperatur -40~+85 ℃
Storage temperature -40~+85 ℃
Weight 850 G
