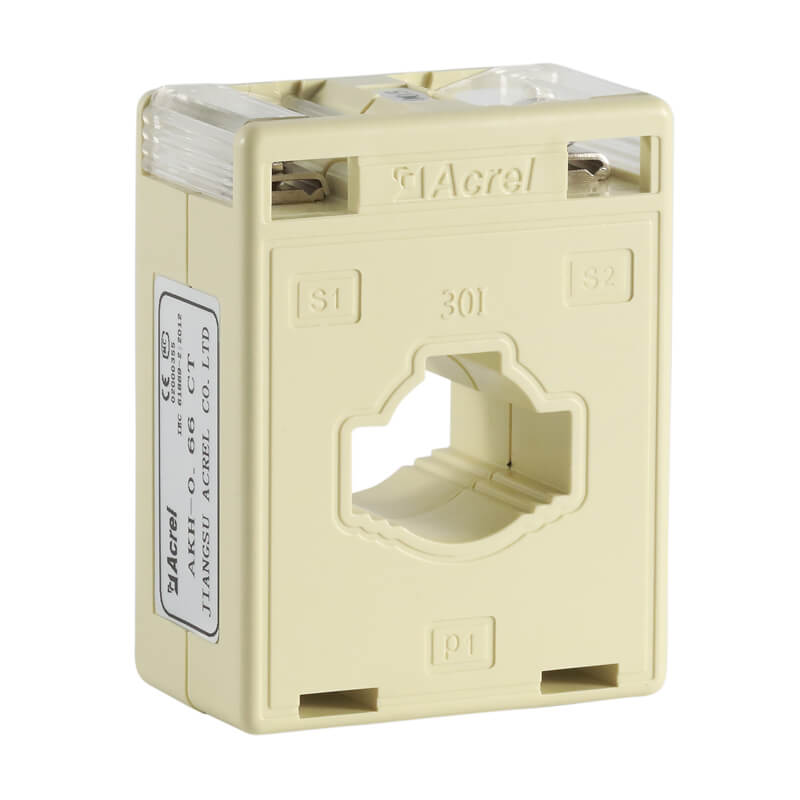

AKH-0.66/I series measuring current transformer

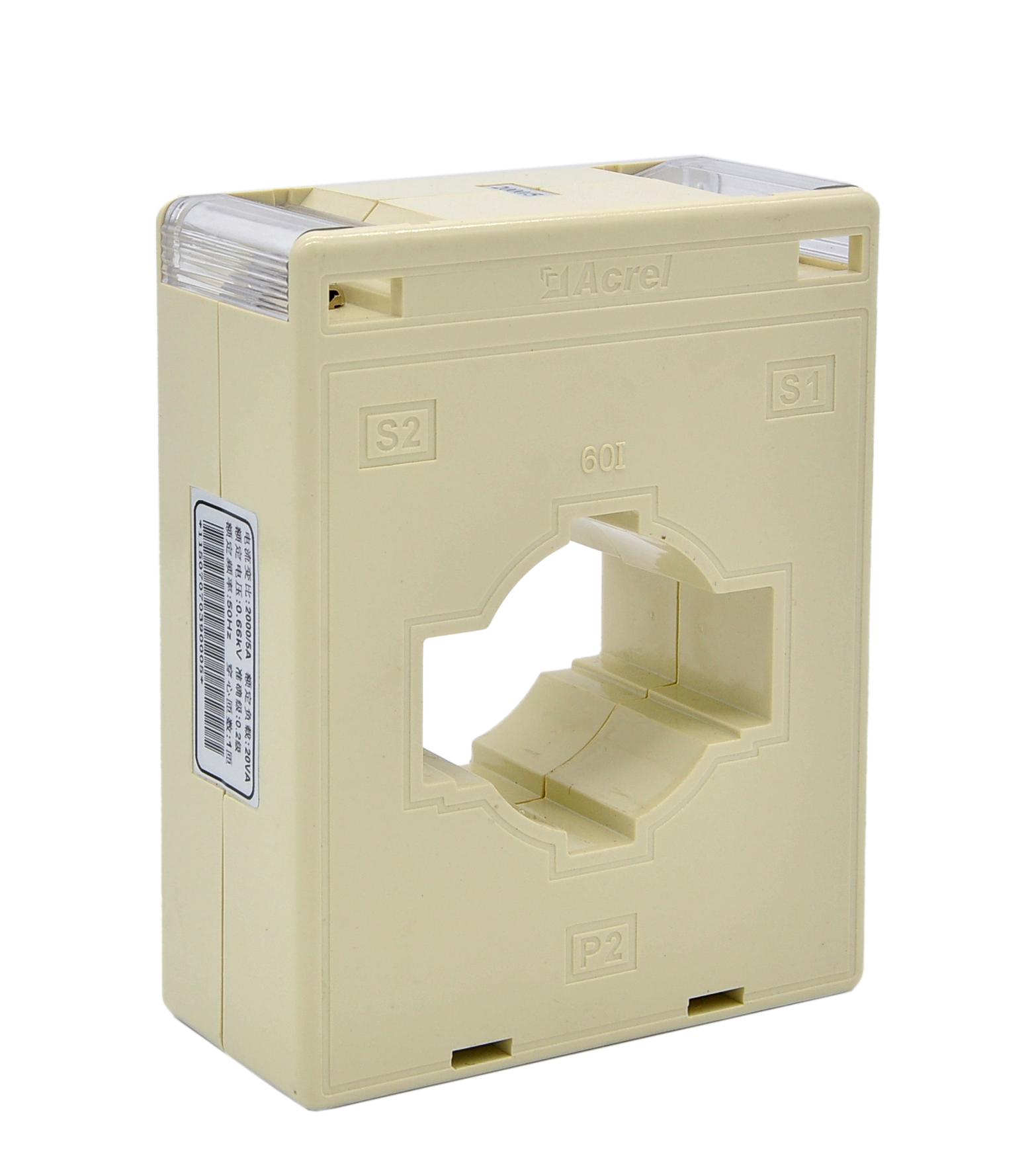

The Acrel AKH-0.66/I series current transformer can be used with measuring instruments by capturing AC signals. The primary current measuring range is 15-3000A, and the secondary current output is 5A or 1A. The measuring range is 5-1201T of the rated current. Its clamshell design offers an attractive appearance and convenient wiring. The cover material is transparent polycarbonate, allowing the secondary lead wiring to be clearly visible. The square and square hole combination allows for both cable and busbar penetration. The Acrel AKH-0.66/I series current transformer can be used with measuring instruments by capturing AC signals.

  • Low Voltage Solid Core Measurement CT
  • Current transformer for alternating current measurement
  • Suitable for cable or copper bus; Used with energy meters or relays
  • Aperture: 22mm, 30mm, 44mm, 50mm; Ratio: 10 ~ 3000 / 5 (1) A
  • 30 I, 40I, 60I, 80I Optional Din rail mounted

Offer

Product info

Model: AKH-0.66 I Series
Rated current Secondary current: 1A or 5A
Rated current: 10 ~ 3000A
nominal voltage: 660V AC
Test voltage: 3kV AC (1min)
Nominal frequency: 50/60Hz
Safety factor: FS<5
Continuous overload: 120%In
Protection level: IP30
operating temperatur: -25 ℃ ~ + 50 ℃
Storage temperature: -40 ℃ ~ + 80 ℃
Relative humidity: ≤90%RH, no condensation

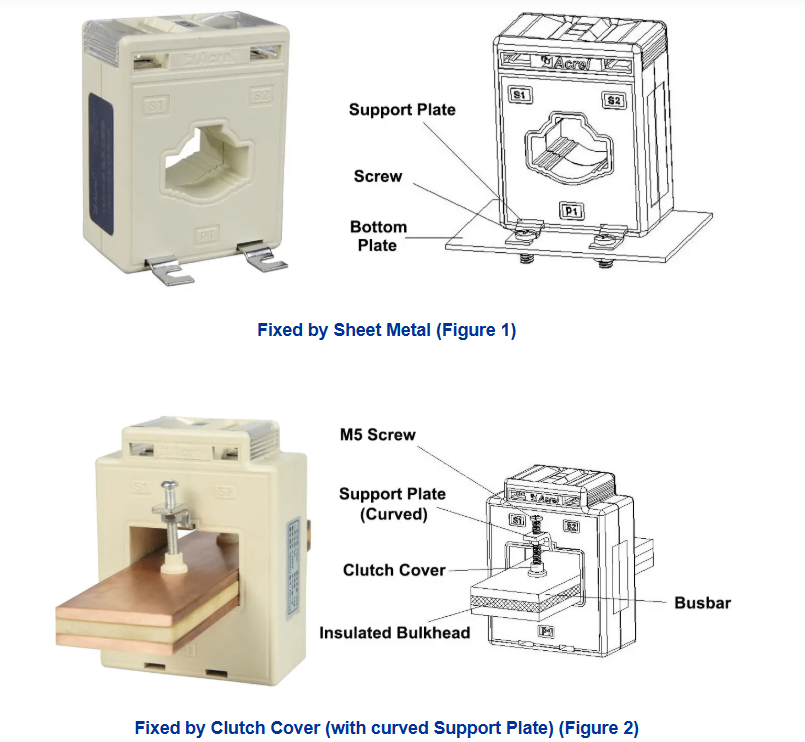

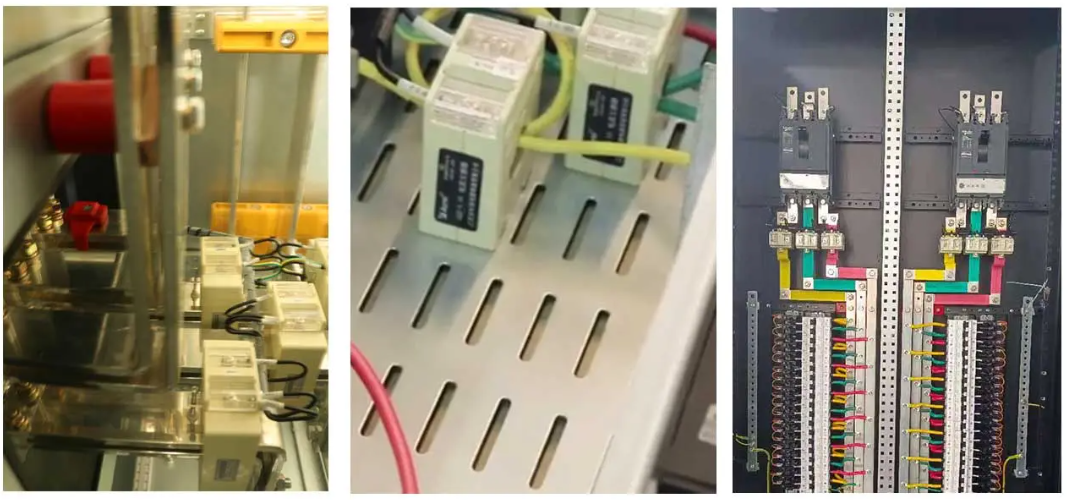

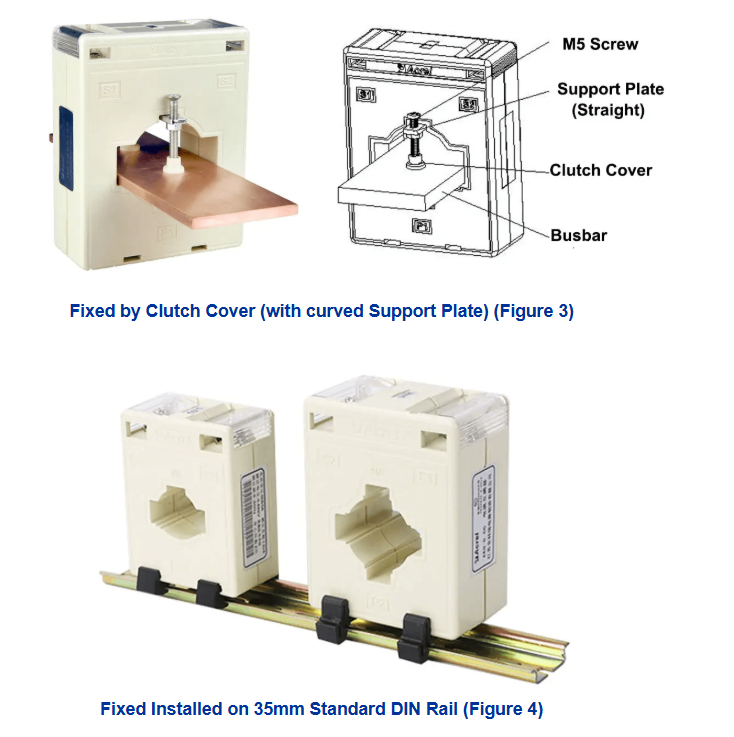

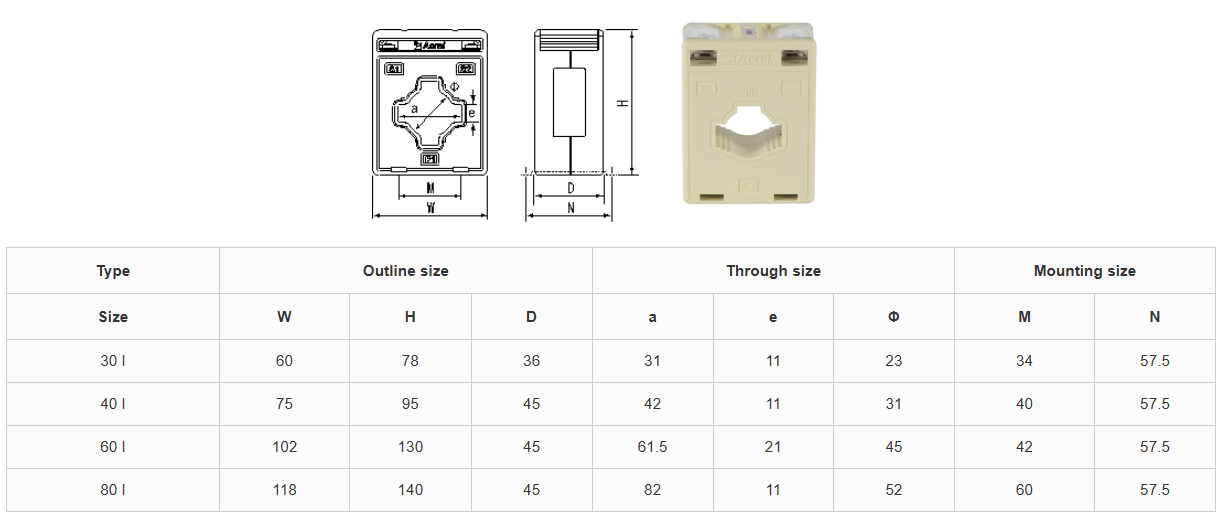

Technical data

form specification Rated current ratio (A) Rated current ratio (A) Straight-through tums Bus spec(mm)/number Maximum cable outer diameter (mm) installation
0.2
0.5
1

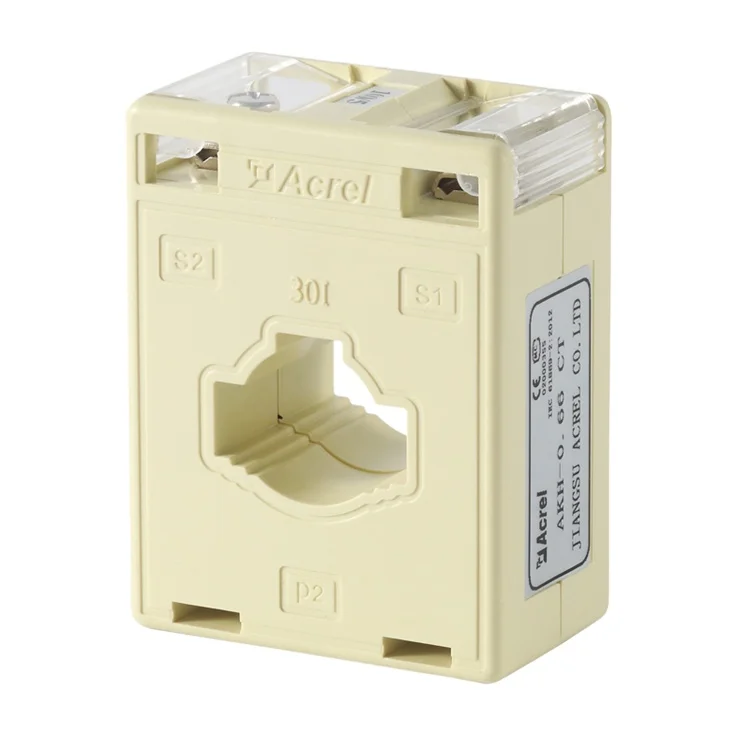

 30I_副本 30I 15/5(1)     1.5
5
 / F22 A
20/5(1)     1.5
4
25-30/5(1)     1.5
3
40-60/5(1)     1.5
2
75-100/5(1)     1.5
1
 30×10/1 AWAY
150-200/5(1)   2.5
250/5(1)   3.75
300-450/5(1)   5
500/5(1)   10
600/5   10

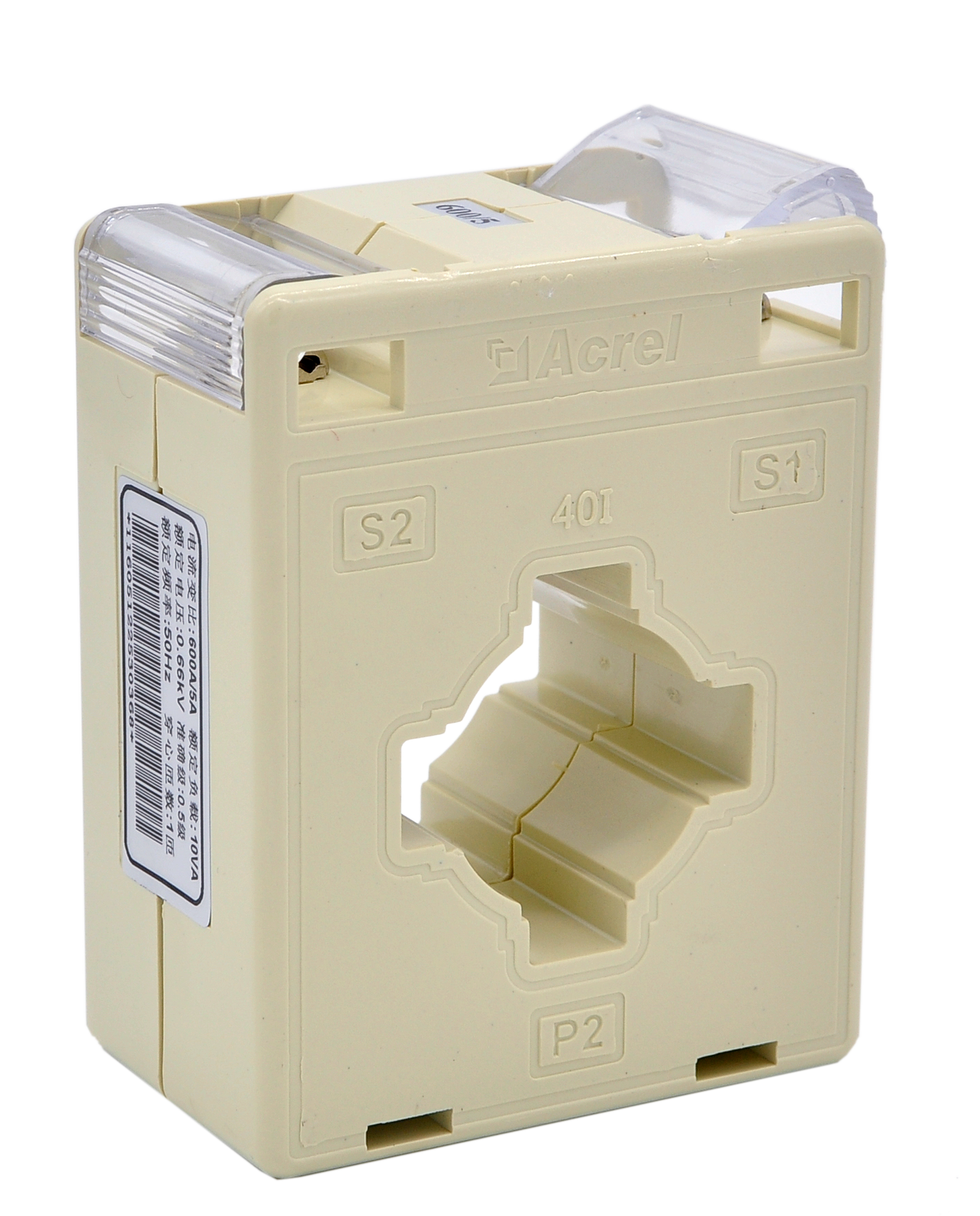

40I_副本 40I 10/5(1)     1.5
10
 / F30 A
15/5(1)     1.5
8
20/5(1)     1.5
5
25-30/5(1)     1.5
4
40/5(1)     1.5 3
50-75/5(1)     1.5
2
100/5(1)     1.5
1
 40×10/1 A、C
150/5(1)     2.5
1
200/5(1)   2.5
1
250/5(1)   3.75   1
300-450/5(1)   5   1
500-800/5(1)   10   1
1000/5(1) 10     1
60I_副本 60I 150/5(1)     2.5 1 60×10/160×6/1-2 F44 A、C
200-250/5(1)   2.5   1
300-450/5(1)   5   1
500-800/5(1)   10   1
1000-1250/5(1) 10     1
1500-2000/5(1) 20     1
2500/5(1) 30     1

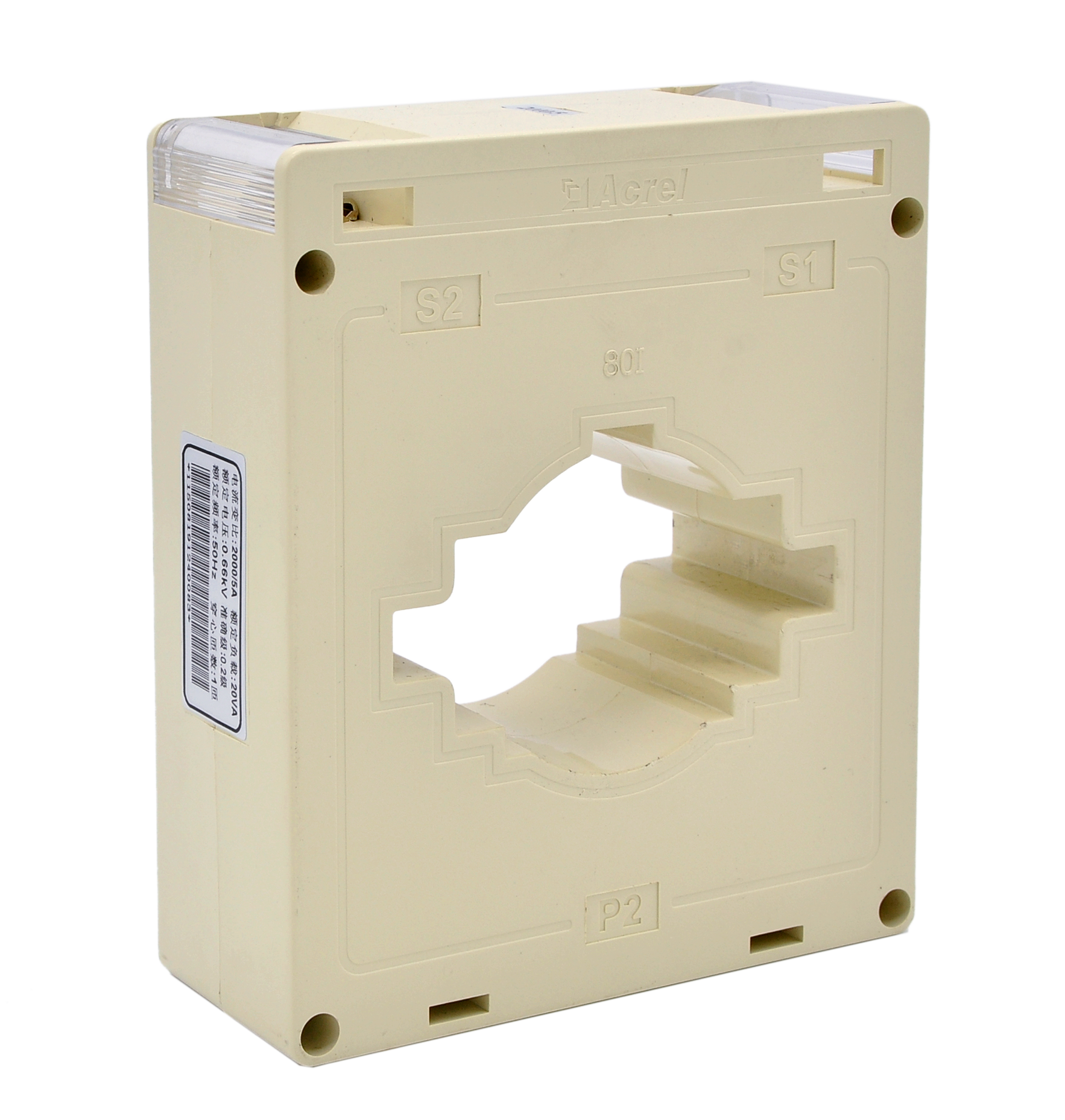

 80I_副本 80I 150/5(1)     2.5 1 80×10/1 F50 A、C
200-250/5(1)   2.5   1
300-400/5(1)   5   1
500-800/5(1)   10   1
1000-1250/5(1) 10     1
1500-2000/5(1) 20     1
2500-3000/5(1) 30     1
