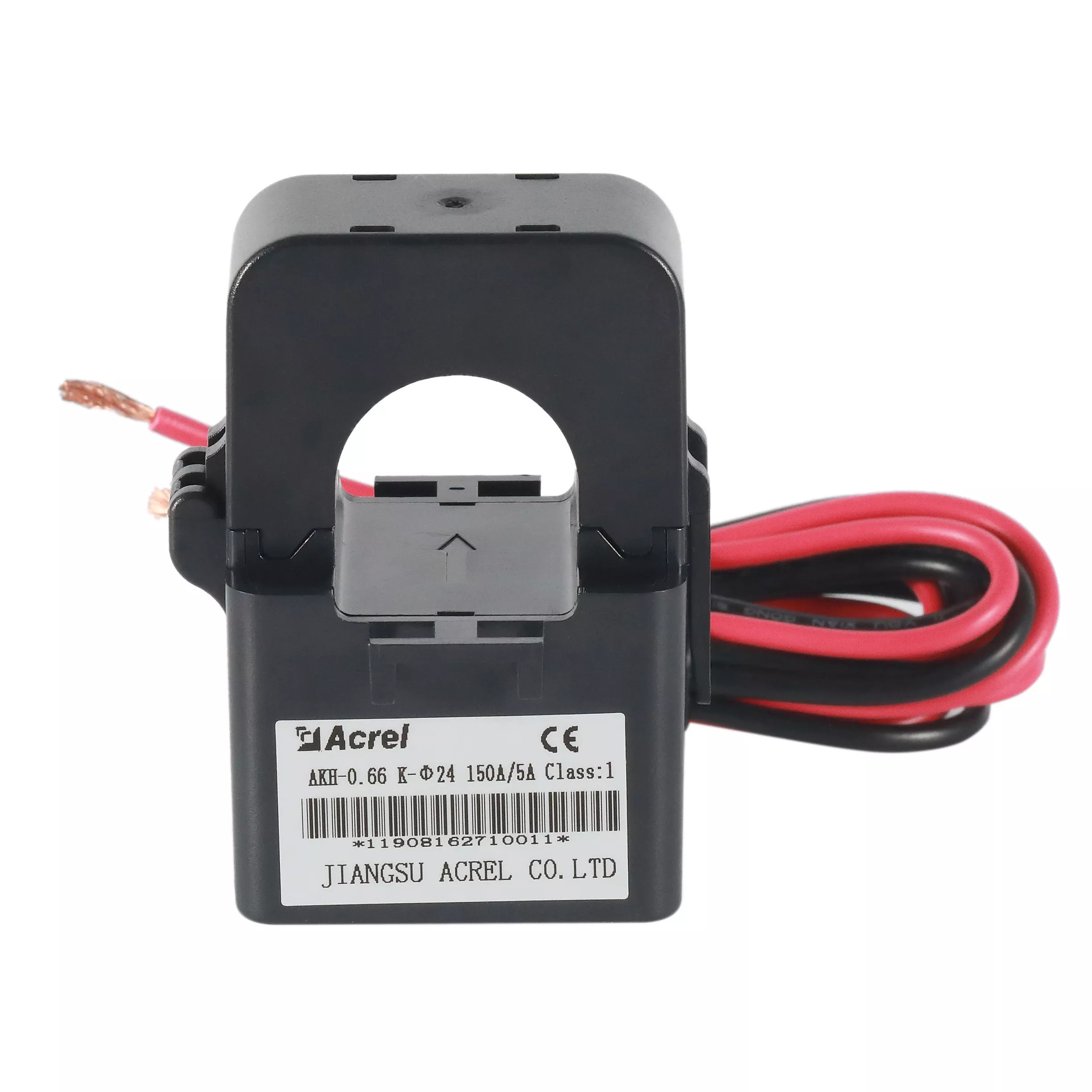

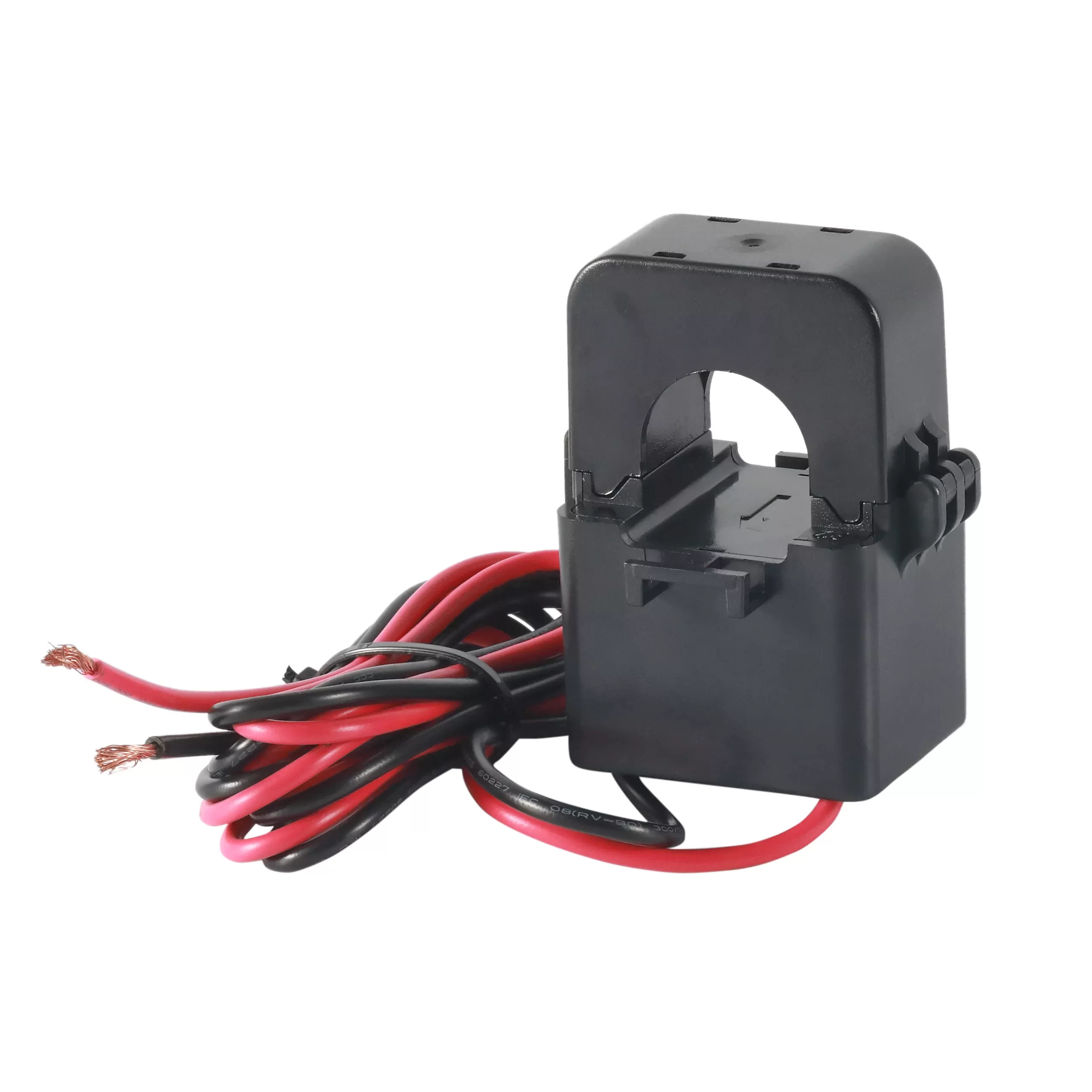

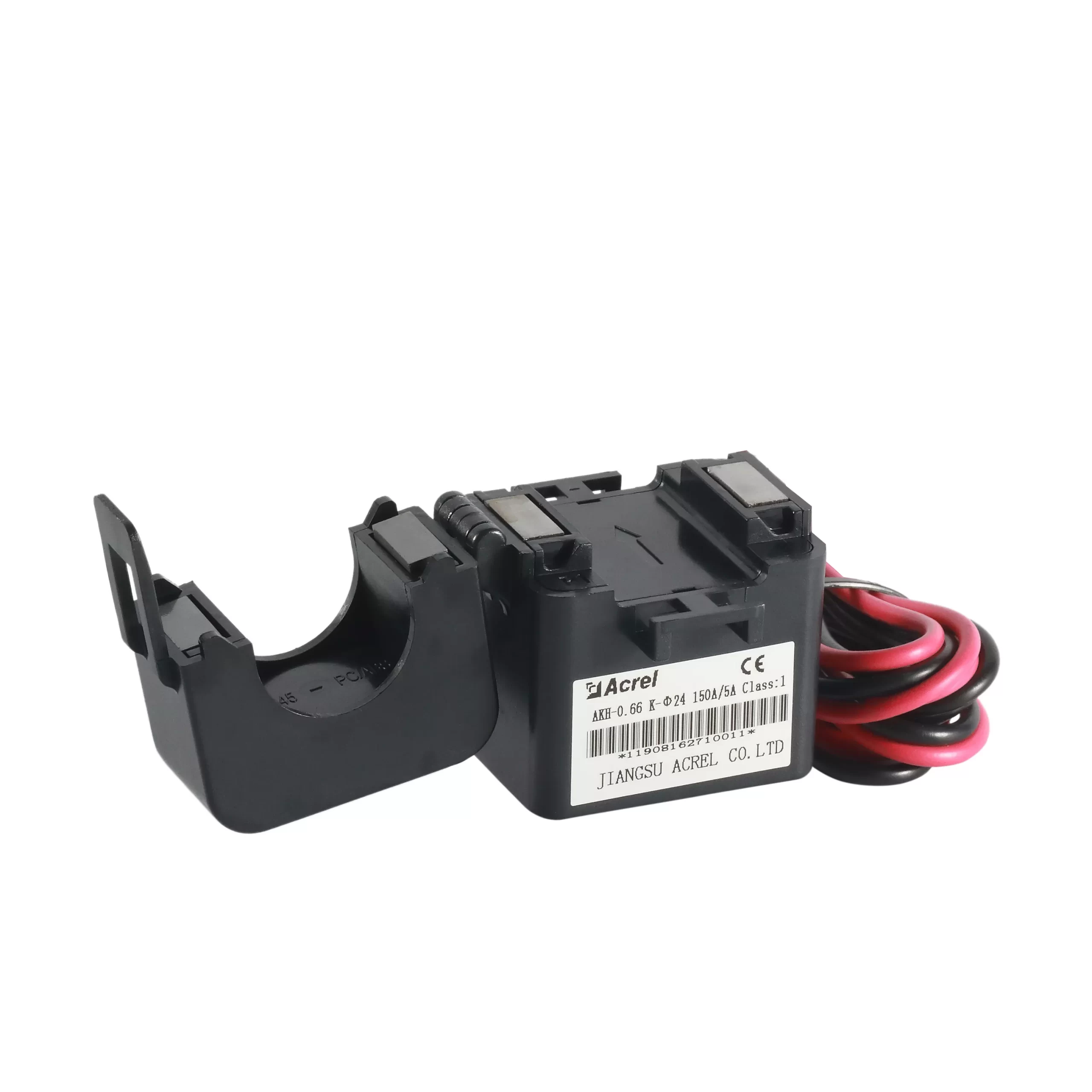

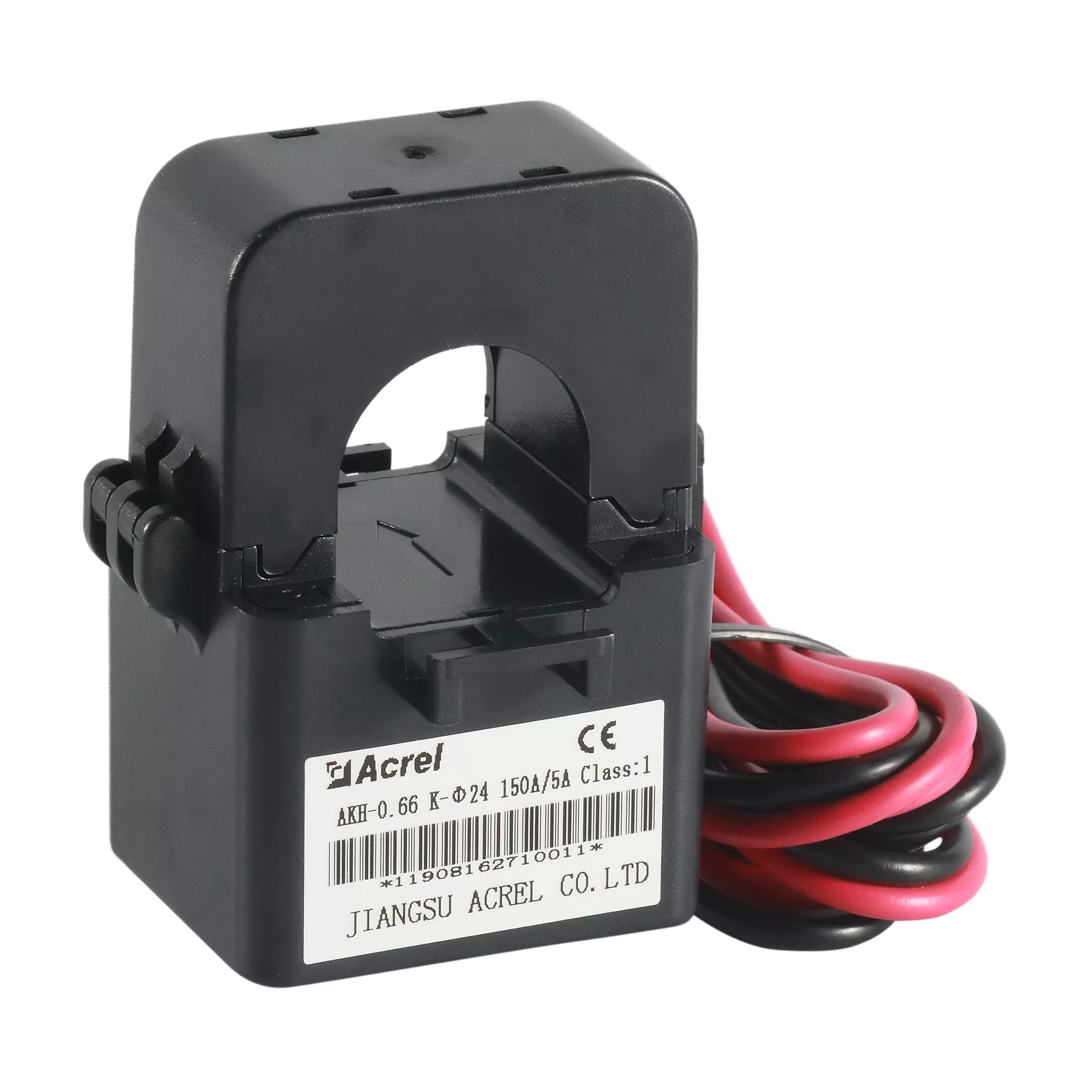

AKH-0.66/K-Φ folding type cable split core current transformer

AKH-0.66/K-Φ current transformer have several types like 1A/5A, mA, mV output can be chosen, it's input range can be from 5A-1000A, the opening size can be choose 10mm, 16mm, 24mm, 36mm, 50mm suitable for all kinds of cables and easy installation.

  • Input: AC 0~1000A
  • Output: 1A, 5A, 20mA, 40mA, 333mV
  • Hole diameter: φ10, φ16, φ24, φ36, φ50
  • Measurement accuracy: Class 0.5, Class 1.0
  • Nominal operating voltage: AC 0.66kV
  • Certificates: UL

Offer

Product info

Cable split core current transformer
Entrance:AC0~1000A
Exit:1A, 5A, 40mA, 333mV
Hole diameter:φ10, φ16, φ24, φ36, φ50
Measurement accuracy:Class 0.5, Class 1.0
Nominal operating voltage:AC 0.66kV
Nominal frequency:50-60Hz
Ambient air temperature:-30℃-70℃
Above sea level:≤3000m
Dielectric strength of the mains frequency:3000v/1min 50Hz

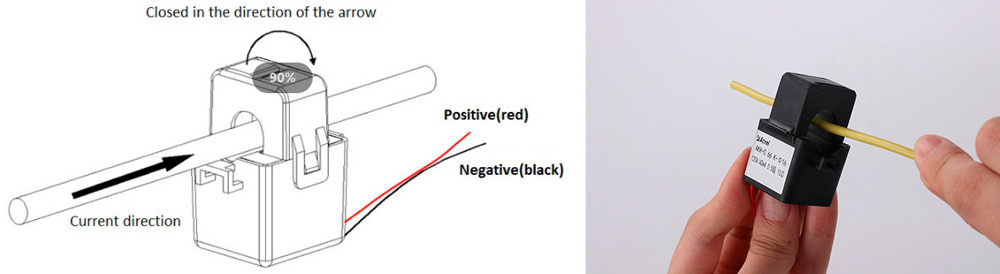

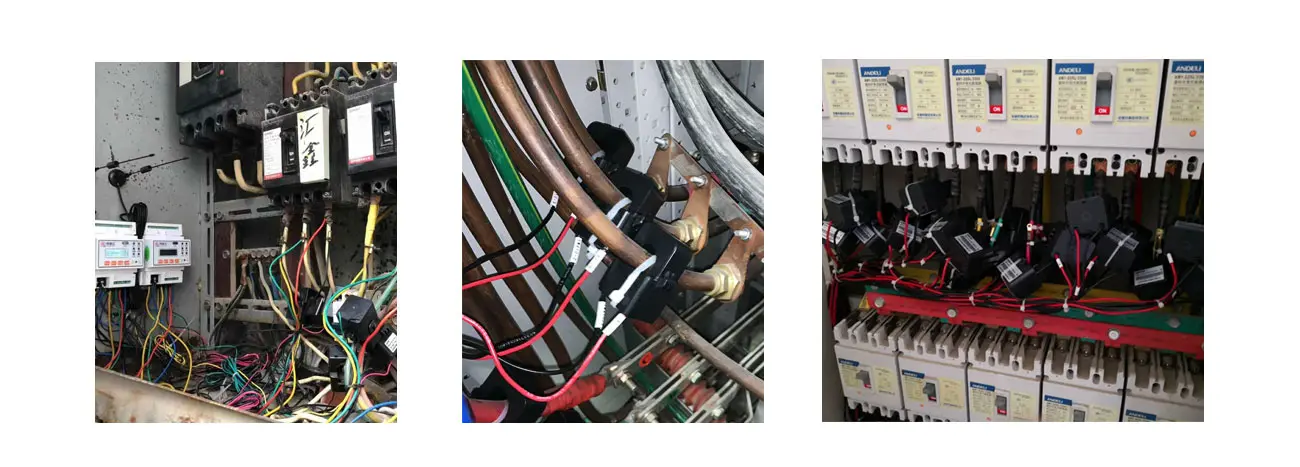

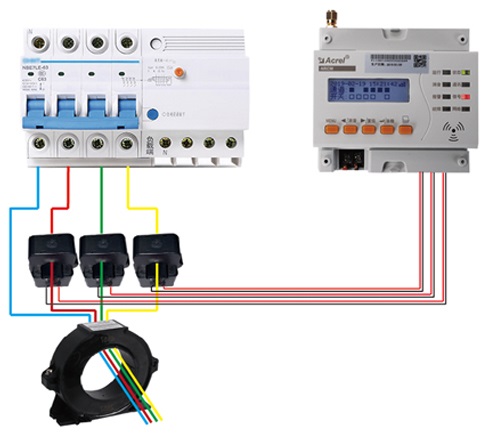

Suitable for electricity renovation project

Technical data

Model  Ratio(A) Class&Load(VA/Ω) revolutions Diameter(mm)
class 0.5 Class 1.0
K-Ø10 5A/1.67mA 10   1 Ø10
5A/2.5mA 10   1
10A/5mA 10   1
40-50A/20mA 10   1
80A/26.7mA 10   1
K-Ø16 120A/40mA 10   1 Ø16
40-100A/20mA 10   1
80A/32mA 10   1
K-Ø24 60-200A/20mA 10   1 Ø24
200A/40mA 10   1
K-Ø36 400A/50mA 10   1 Ø36
400A/40mA 10   1
600A/75mA 10   1
200-400A/20mA 10   1
K-Ø24 150-200/5(1)A   1 1 Ø24
250-300/5(1)A   1.5 1
K-Ø36 300-400/5(1)A   1.5 1 Ø36
500-600/5(1)A 1.5   1
K-Ø50 600-700/5(1)A 2.5   1 Ø50
800-900/5(1)A 5   1
1000/5(1)A 10   1
K-Ø16 100A/333mV 10   1 Ø16
K-Ø24 200A/333mV 10   1 Ø24
300A/333mV 10   1
400A/333mV 10   1
K-Ø36 300A/333mV 10   1 Ø36
400A/333mV 10   1
500A/333mV 10   1
600A/333mV 10   1
