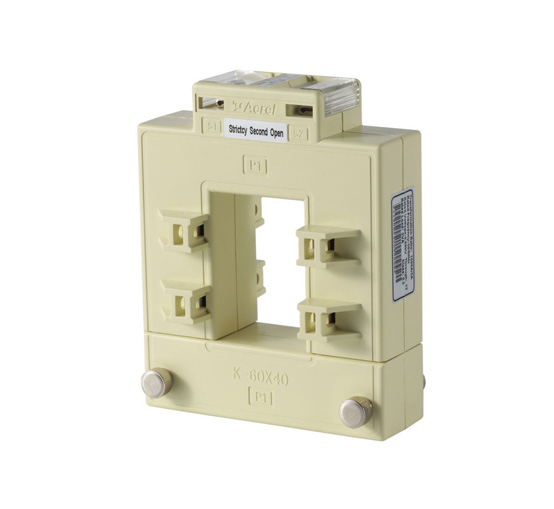

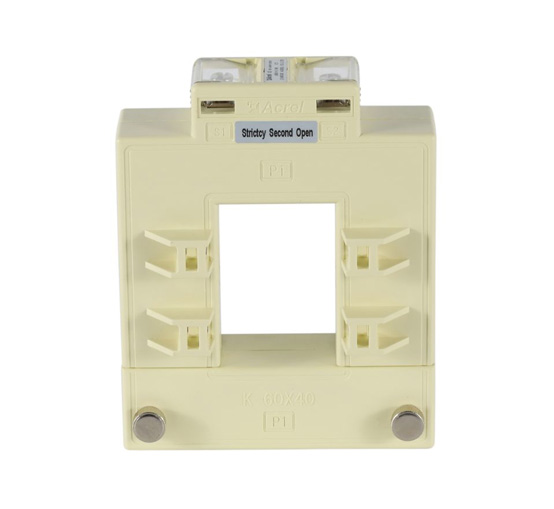

AKH-0.66/K Serie Split Core Stromtransformator

AKH-0.66/K series split core power transformer

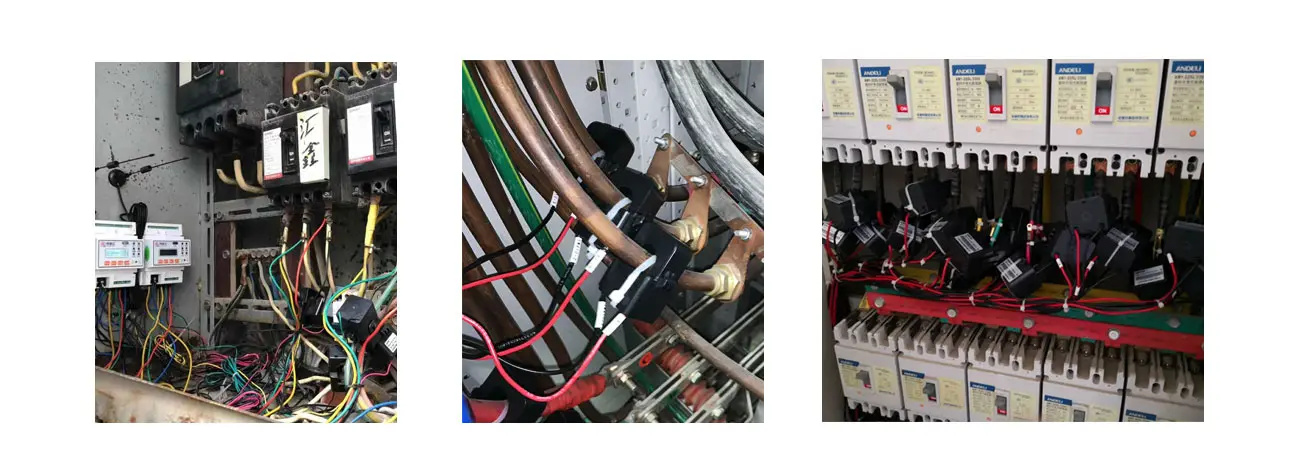

AKH-0.66/K series split core power transformer is mainly used in urban and rural power grid reconstruction projects, without removing a bus line, can be easily installed, also can be loaded without affecting the normal power consumption, thereby saving manpower, material resources and financial resources to improve power efficiency. This series can be combined with relay protection and measuring instruments.

Measurement accuracy: Class 0.5/1
Nominal frequency: 50/60Hz
Maximum system voltage: AC 720V
Nominal primary current: range up to 6000A
Protection level: IP 30
Certificates: CE, LVD

PRODUCT INFO
TECHNICAL DATA
Product display
DOWNLOAD

Offer

Product info

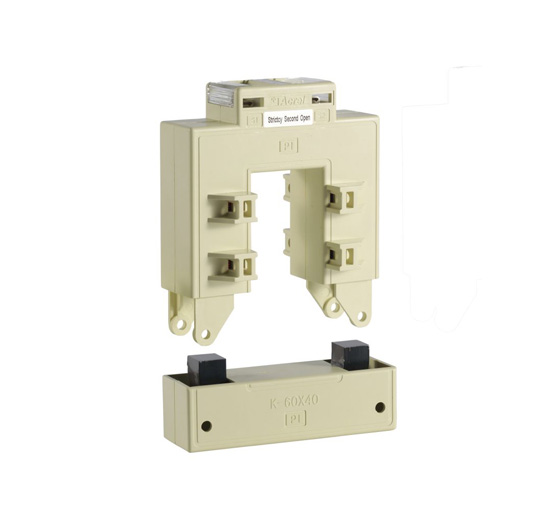

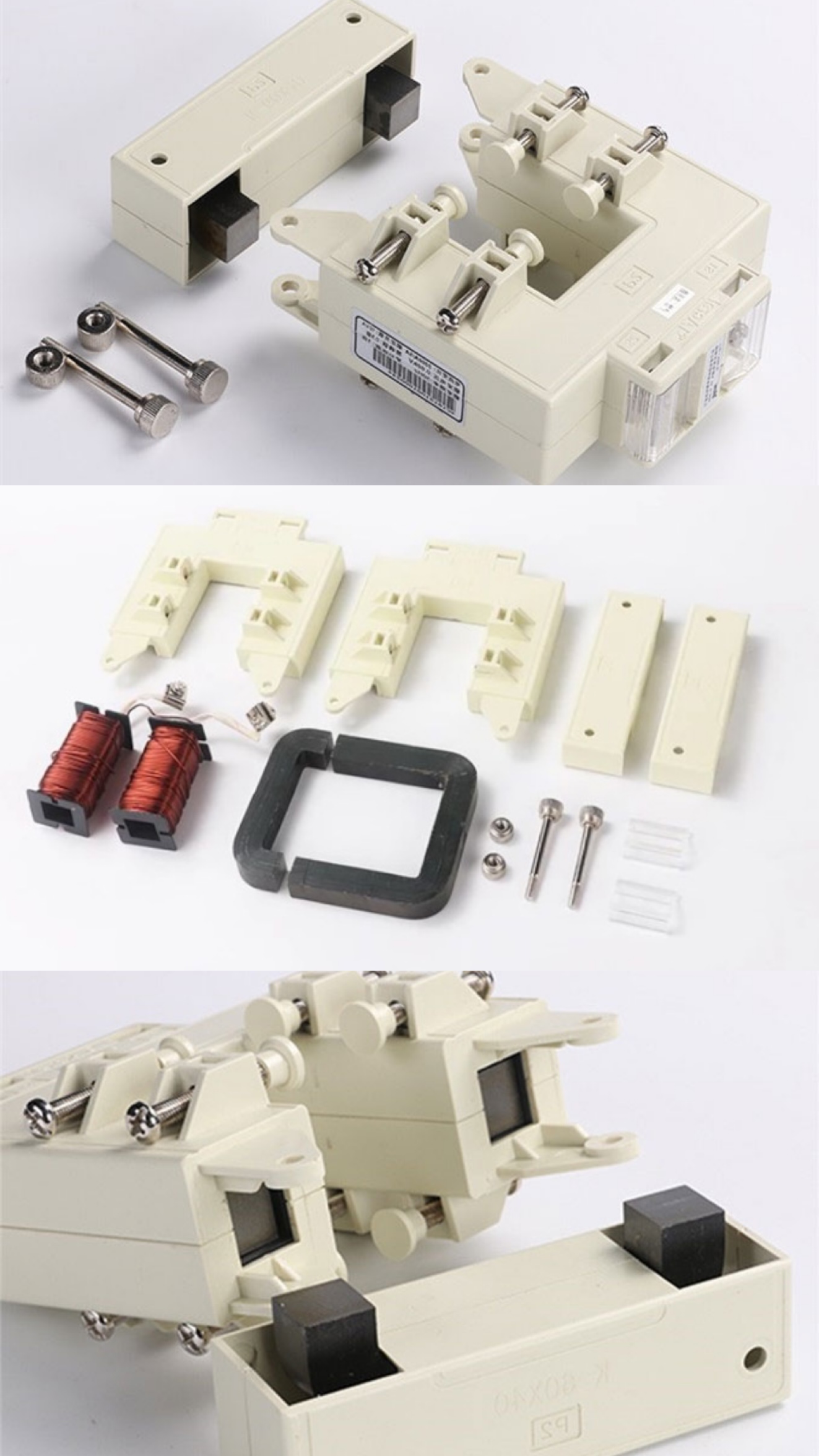

Cable split core current transformer

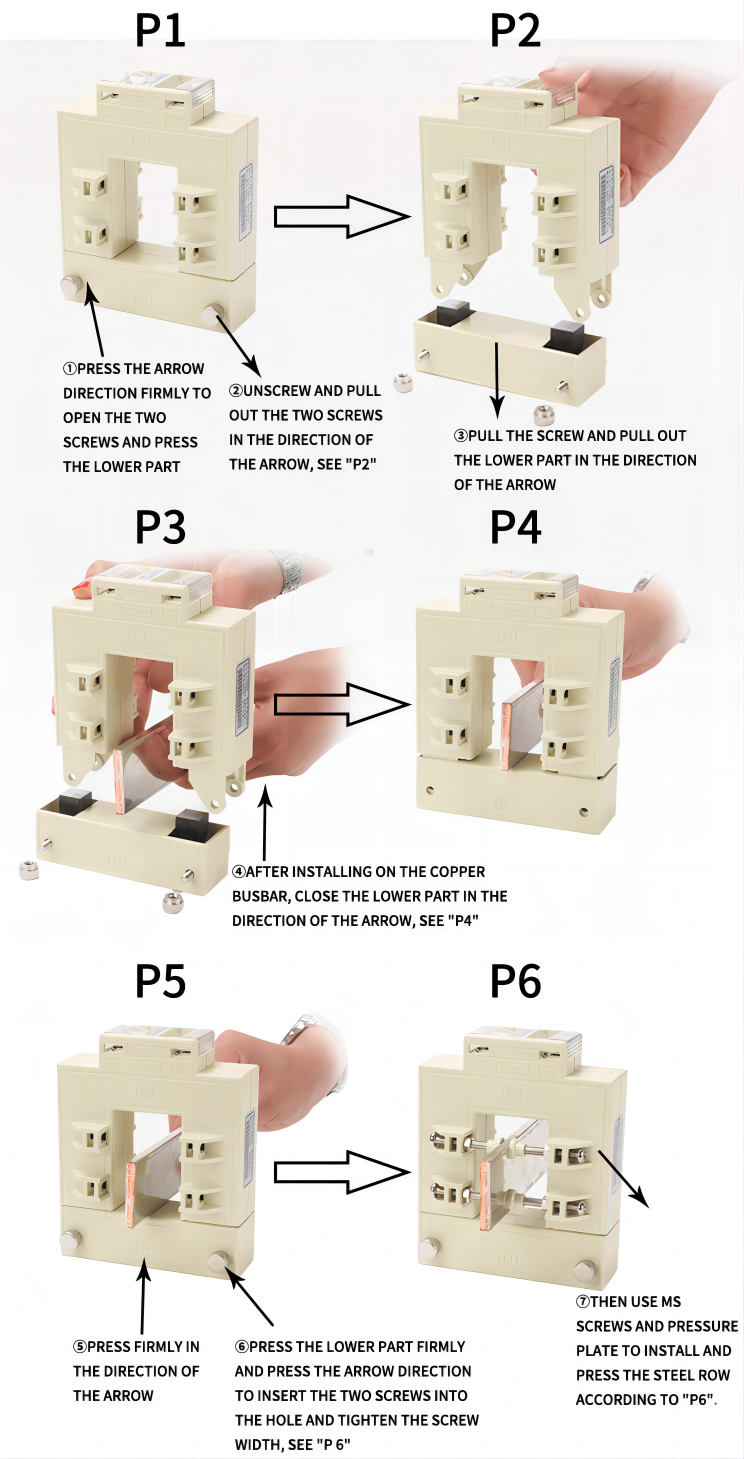

Easy to install without turning off

Nominal frequency: 50/60Hz

Test voltage: 3kV AC(1min)

Ambient air temperature: -25℃-+80℃

Acrel AKH-0.66/K series current transformers save manpower, material resources and financial resources and improve users' efficiency. These split CT transformers match relay protection, measurement and measuring equipment.

Technical data

Model	W(mm)	H(mm)	D(mm)	a	e	primary input (A)	net weight (kg)
K-30×20	90	114	40	22	32	20-400	0.8-0.9
K-60×40	114	140	36	42	62	250-2000	1.0-2.0
K-80×40	122	162	40	42	82	300-3000	1.2-2.4
K-80×50	114	159	36	52	82	250-1000	1.1-1.4
K-80×80	144	159	36	82	82	250-1000	1.3-1.5
K-120×80	144	199	36	82	122	500-1500	1.5-2.3
K-120×60	164	214	52	62	122	400-5000	1.6-3.0
K-100×40	144	194	52	42	102	1000-5000	1.6-3.2
K-130×40	144	224	52	42	132	1000-5000	1.6-3.6
K-140×60	164	234	52	62	142	1000-5000	1.7-3.7
K-160×80	184	254	52	82	162	1000-5000	2.8-3.7
K-200×80	184	294	52	82	202	1000-5000	3.5-4.5
Model				Ratio(A)		Class	load (VA/Ω)
K-30×20				20-75/1		1	0.2
				100-150/5(1)		1	1
				200/5(1)		1	1.5
				250-300/5(1)		0.5	1.5
				350-400/5(1)		0.5	2.5
K-60×40				250-300/5(1)		1	1.5
				350-400/5(1)		0.5	1.5
				500-800/5(1)		0.5	2.5
				1000-1250/5(1)		0.5	5
				1500-2000/5(1)		0.5	10
K-80×40				350/5(1)		1	1.5
				350-450/5(1)		0.5	2.5
				500-800/5(1)		0.5	5
				1000-2000/5(1)		0.5	10
				2500-3000/5(1)		0.2	10
K-80×50				250-300/5(1)		1	1.5
				400-450/5(1)		0.5	1.5
				500-800/5(1)		0.5	2.5
				1000/5(1)		0.5	5
K-80×80				250-300/5(1)		1	1.5
				400-450/5(1)		0.5	1.5
				500-800/5(1)		0.5	2.5
				1000/5(1)		0.5	5
K-100×40				1000-2000/5(1)		0.5	10
				2500-3000/5(1)		0.2	10
				4000-5000/5(1)		0.2	15
K-120×60				400-450/5(1)		0.5	2.5
				500-800/5(1)		0.5	5
				1000-2000/5(1)		0.5	10
				2500-5000/5(1)		0.2	10
K-120×80				500-800/5(1)		0.5	2.5
				1000-1200/5(1)		0.5	5
				1250-1500/5(1)		0.5	7.5
K-130×40				1000-2000/5(1)		0.5	10
K-130×40				2500-5000/5(1)		0.2	10
K-130×60				1000-2000/5(1)		0.5	10
K-130×60				2500-6000/5(1)		0.2	15
K-140×60				1000-2000/5(1)		0.5	10
				2500-3000/5(1)		0.2	10
				4000-5000/5(1)		0.2	15
K-160×80				1000-2000/5(1)		0.5	10
				2500-3000/5(1)		0.2	10
				4000-5000/5(1)		0.2	15
K-200×80				1000-2000/5(1)		0.5	10
				2500-3000/5(1)		0.2	10
				4000-5000/5(1)		0.2	15
K-Φ20				100A/20mA		1	15Ω
K-Φ30				200A/20mA		0.5	10Ω
K-Φ30				300A/20mA		0.5	10Ω
