AKH-0.66/W series mini power transformer

Acrel AKH-0.66/W series mini current transformer is round and the output is small current signal such as 4-20mA. It is matched with multi-channel energy meter (AMC16). Acrel AKH-0.66/W series mini current transformer has the advantages of small size, high accuracy, strong bearing capacity, easy installation, etc., and can save cost to realize multi-channel monitoring for users.

  • Small size
  • High accuracy
  • Strong resilience
  • Easy installation
  • Output: 5-20mA
  • Certificates: CE

Offer

Product info

microcurrent transformer

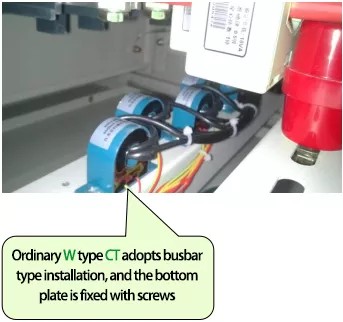

Easy installation

Nominal frequency: 50/60Hz

Saving costs for implementing multi-loop monitoring for users

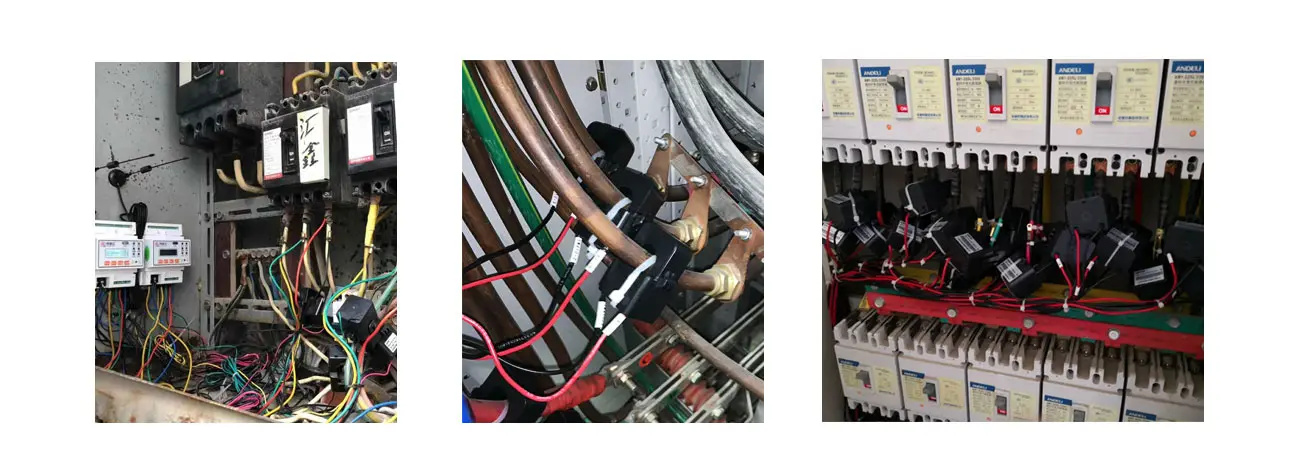

Suitable for data center and column head cabinet

Technical data

Model

 Ratio(A)
 Class & Load(VA/Ω)
 revolutions
 Diameter(mm)
0.2 0.5 1
W-7 5-15A/5mA 10     1 Φ7
10-30A/10mA 10     1
5A/20mA   10   2
10-15A/20mA   10   1
20-60A/20mA 10     1
50A/25mA
10
     1
W-8 5-15A/5mA 10     1

Φ8
10-30A/10mA 10     1
5A/20mA   10   2
5A/20mA 10     4
10-15A/20mA   10   1
20-60A/20mA 10     1
60A/60mA 10     1
W-12 10-15A/20mA   10   2 Φ12
20-100A/20mA 10     1
10-50A/10mA 10     1
W-12N 100A/50mA 10     1 Φ12
W-20 5A/20mA   10   4
Φ20
10-15A/20mA   10   2
30A/10mA 10     1
30-200A/20mA 10     1
W-20N 50-100A/50mA   10   1 20*10/1
W-30N 200-400A/50mA   10   1 31×13

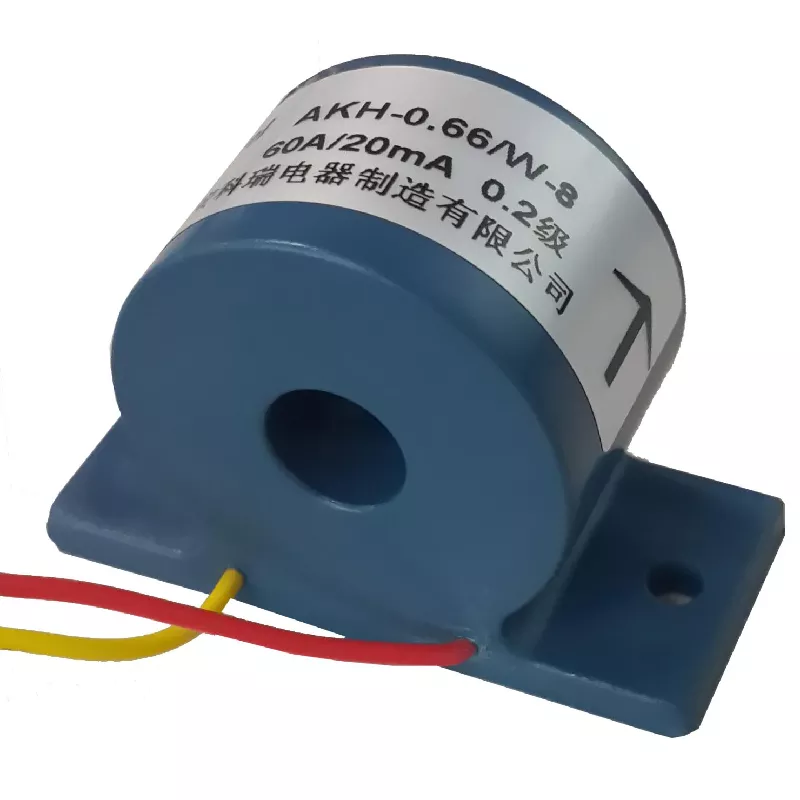

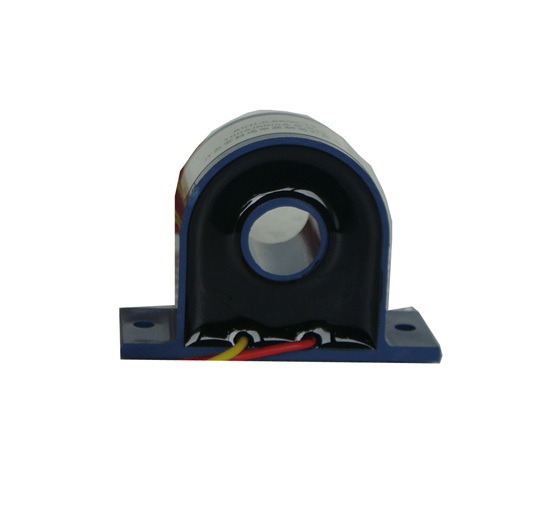

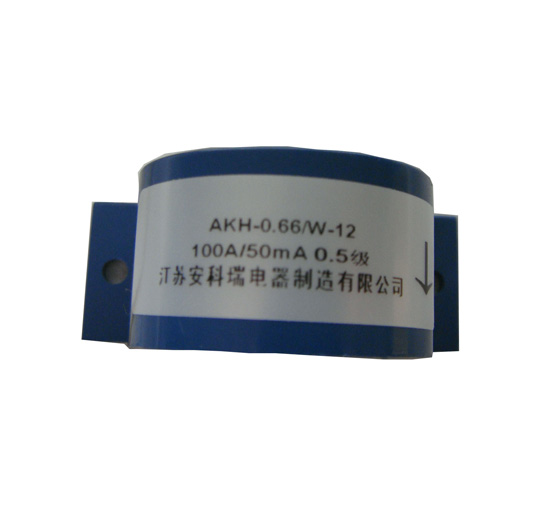

Product display
