Measure primary current 5-1250A
Nominal frequency: 50/60Hz
Ambient air temperature: -25℃-+80℃

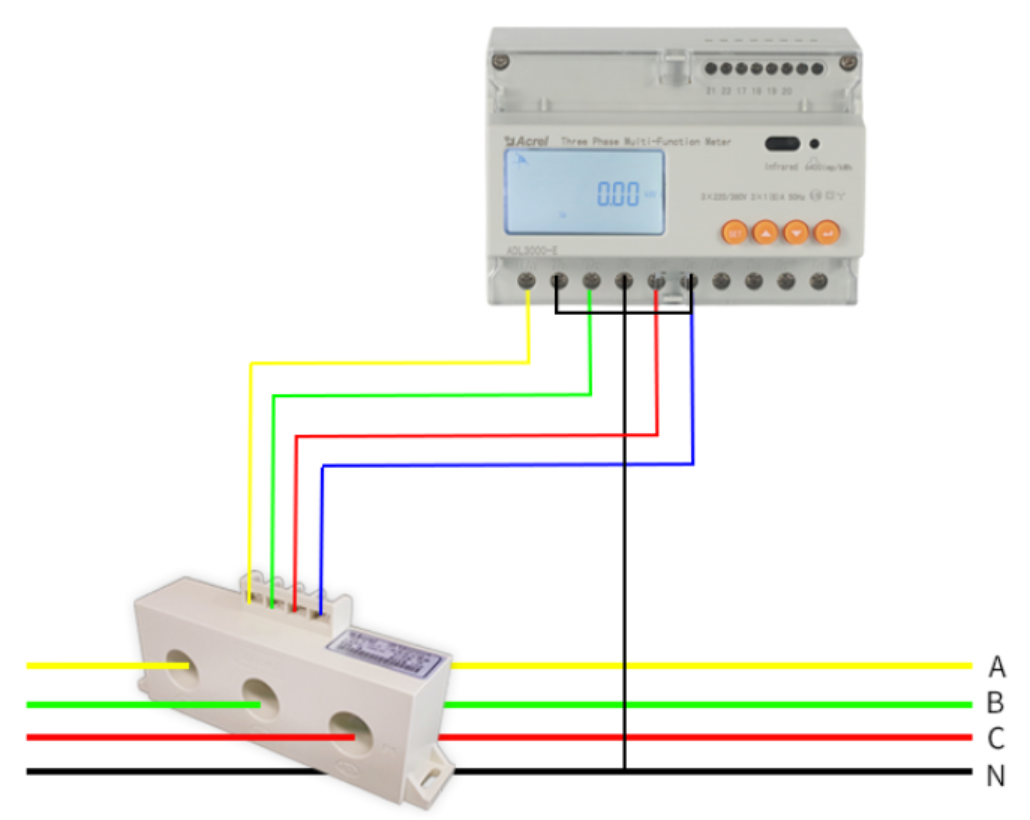

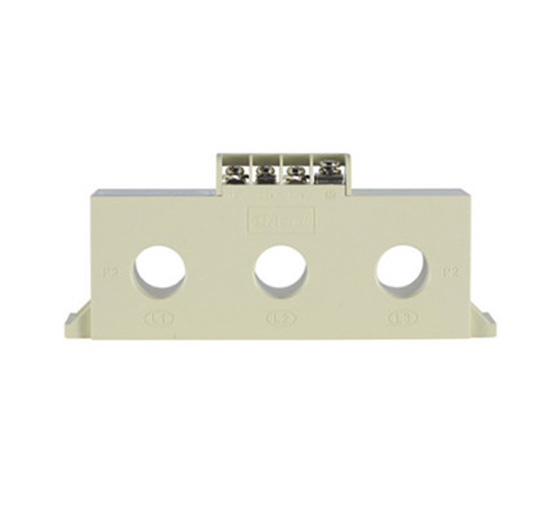

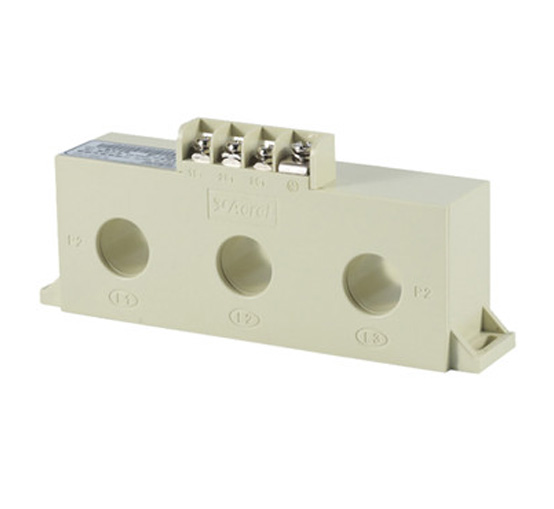

AKH-0.66/Z series combined current transformer is also called three-phase current transformer. As a current signal acquisition device, it is generally matched with multi-loop current monitoring device (AMC16), PZ300, molded case circuit breaker and other products. It can save installation space, reduce cumbersome wiring, convenient to use and effectively reduce the cost.
| Model |
Ratio(A) | Class&Load(VA/Ω) |
Dia.(mm) |
||||
| class 0.2 | class 0.5 | Class 1.0 | |||||

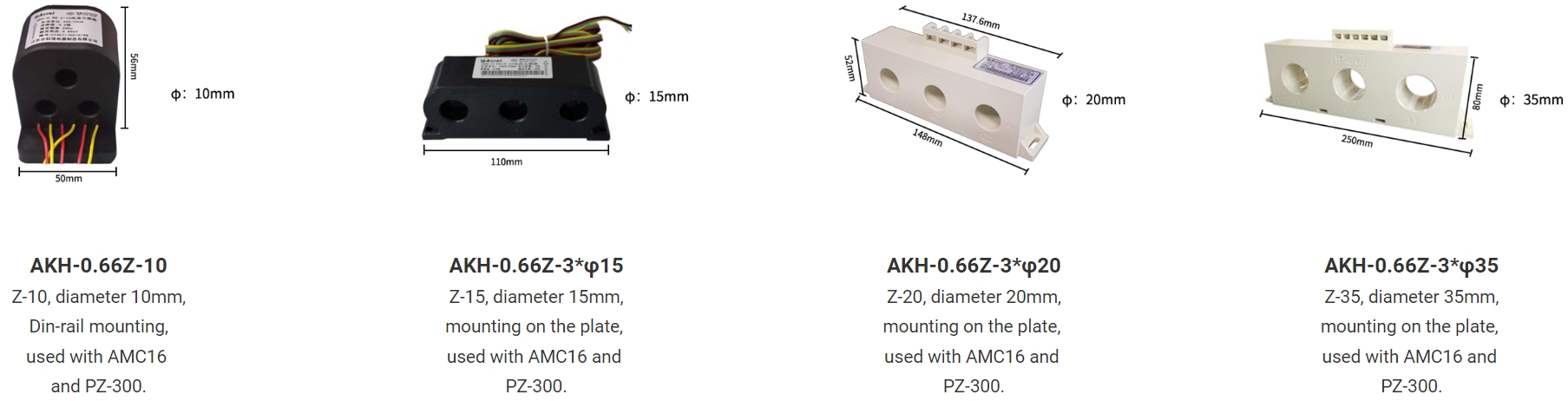

| Z-3*Φ20 | 5-100/5 | 1.5 | Φ20 | ||||
| 150/5 | 1.5 | ||||||
| 200/5 | 2.5 | ||||||
| Z-3*Φ20 | 5-100/1 | 5 | 1.5 | Φ20 |
|||
| 150/1 | 10 | ||||||
| 200/1 | 10 | ||||||
| 5-200/0.05 | 10 | ||||||

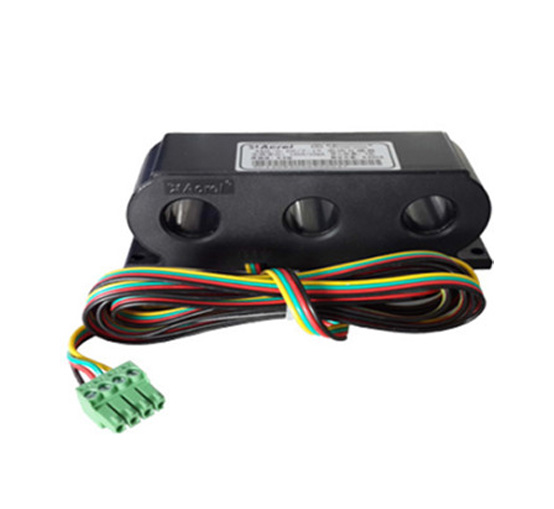

| Z-3*Φ15 | 5-100/0.02 | 10 | 10 | Φ15 | |||
| Z-3*Φ10 | 50/0.025 | 10 | Φ10 | ||||
| Z-3*Φ35 | 100-150/5 | 2.5 |
|
||||
| 200/5 | 1.5 | ||||||
| 250/5 | 3.75 | ||||||
| 300-450/5 | 5 | ||||||
| 500/5 | 10 | ||||||
| 600-800/5 | 10 | ||||||
| 1000-1250/5 | 10 | ||||||
| Z-3*Φ35 | 100-150/1 | 2.5 | |||||
| 200/1 | 1.5 | ||||||
| 250/1 | 3.75 | ||||||
| 300-450/1 | 5 | ||||||
| 500/1 | 10 | ||||||
| 600-800/1 | 10 | ||||||
| 1000-1250/1 | 10 | ||||||
