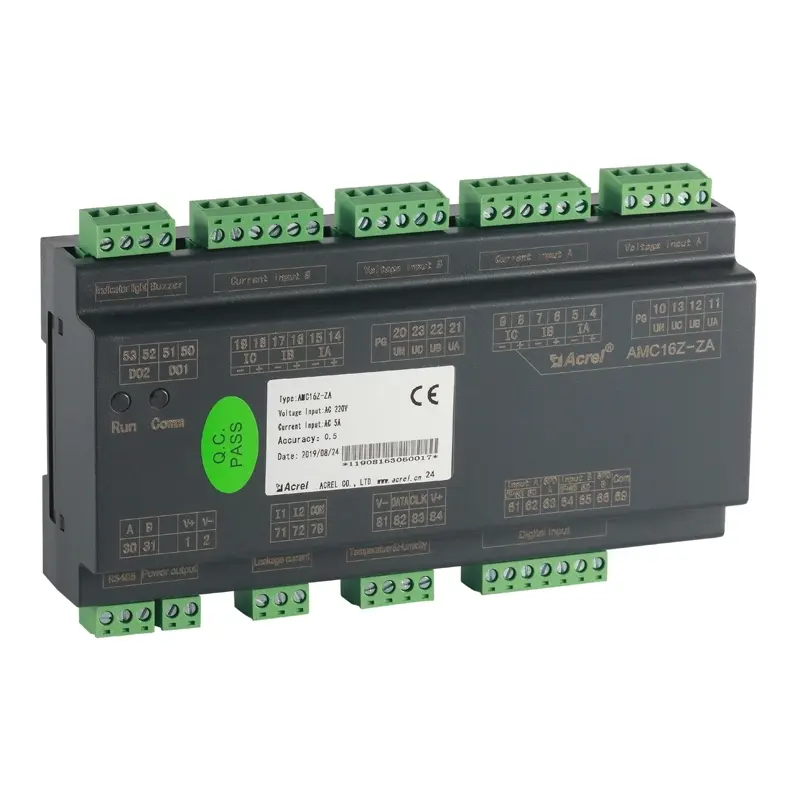

AMC16Z-ZA AC Mehrkreis-Energiezähler

AMC16Z-ZA AC multi-circuit energy meter

It is an AMC16Z electrical panel specially designed for power management of data center computers. The sophisticated design of the device provides electrical parameters for an A+B 2 line and 96 stops by monitoring the state of the entry and exit fuses in real time. The alarm threshold for each measurable line can be set separately. An overload will trigger the system's alarm. There are integrated monitoring circuits in the volume of the traditional equipment.

Specially designed for computer power management by data centers

A+B olive B towards route 2

U, I, P, Q, S, PF, kWh, kvarh

The two nd 63 harmonies

Certificates: LVD, EMC

Monitoring: start two separate communication circuits 3 together

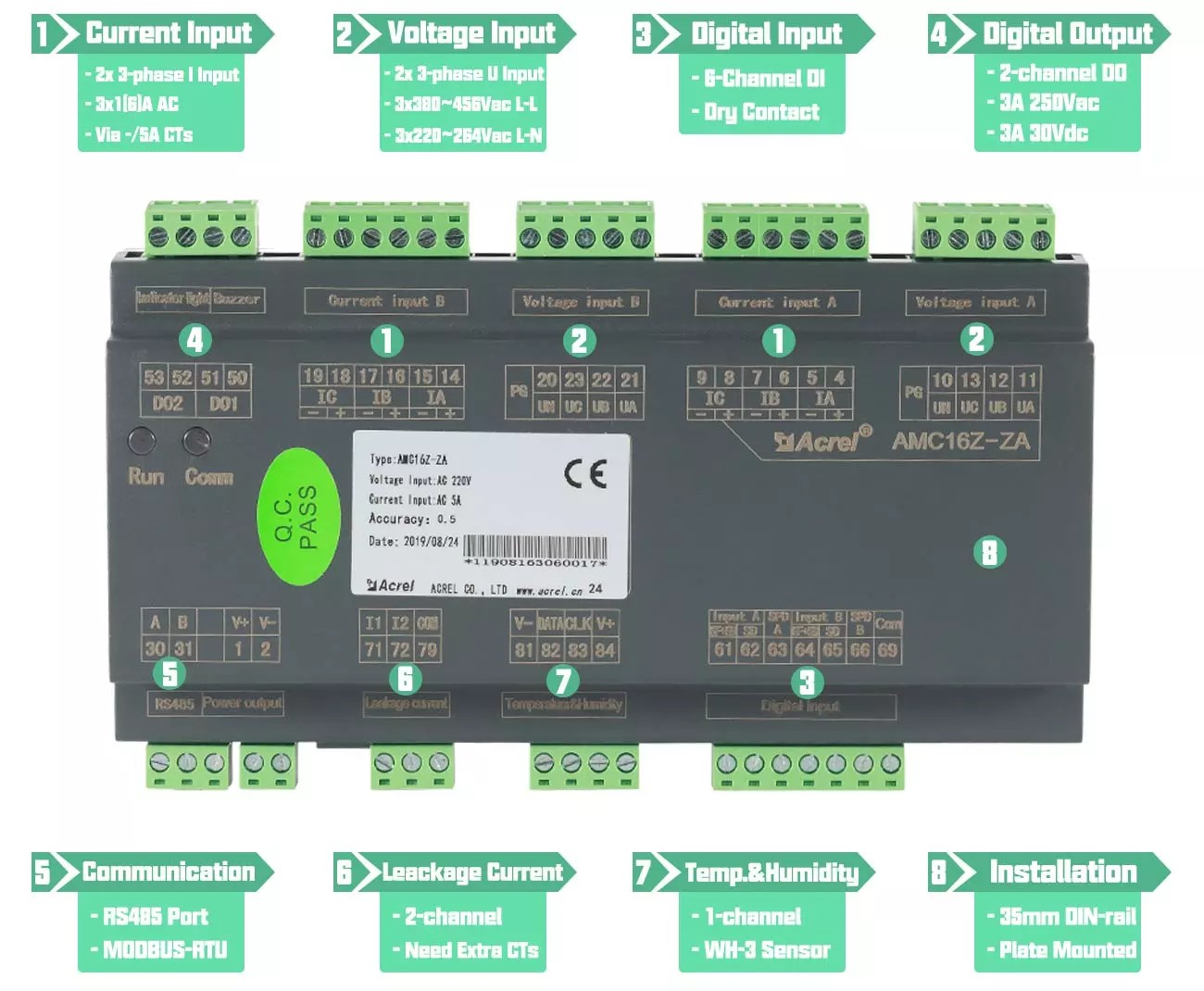

Product info

AC multi-circuit energy meter

A + B independent 2 circuits three-phase main line bus bar voltage, current, active power, reactive power, apparent power, power factor, active power, reactive power, zero ground voltage, center line current, 2-63 harmonics of voltage and current

6 passive switching input

2 switching outputs

1 RS485 communication

Installation: DIN rail 35mm

Dimensions (L*W*H):
180mm* 94.3mm* 45mm

Technical data

product features

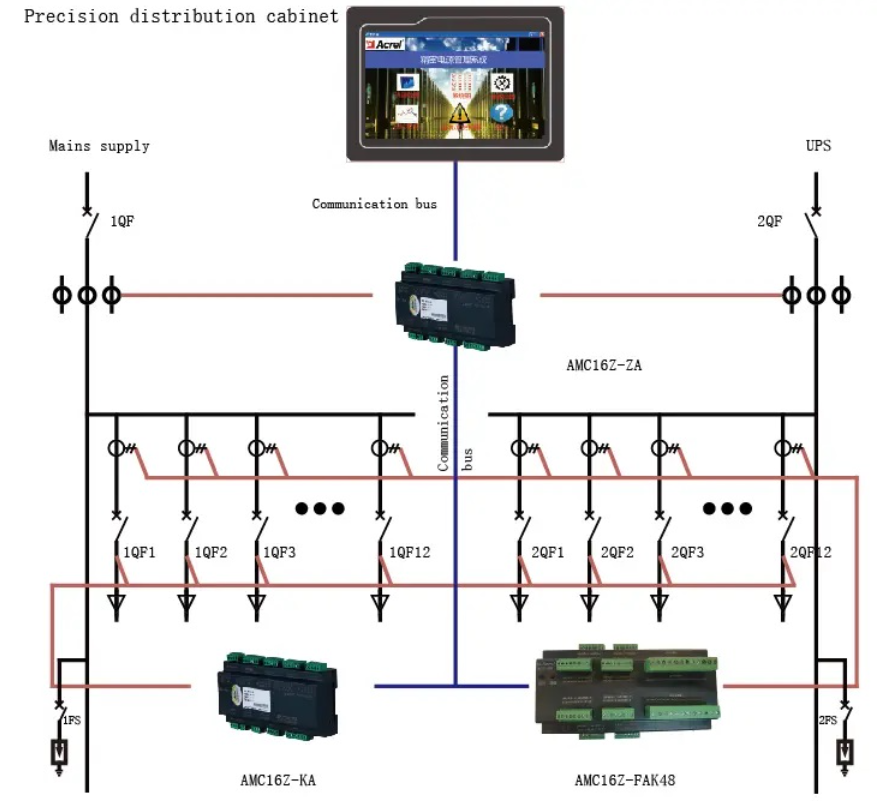

Monitoring of dual AC input circuits

● A + B monitoring of two independent AC circuits

● Complete monitoring of electrical parameters

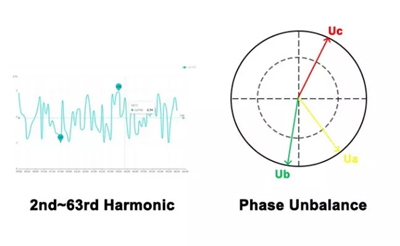

● Analysis of network quality

analysis of network quality

● 2nd ~ 63rd and entire harmonic

● Degree of current and voltage asymmetry

● Current K-coefficient (KF)

● Telephone Waveform Factor (THFF)

● Peak voltage coefficient (CF)

Several additional functions

● 6-channel DI (digital input)

● 2-channel DO (digital output)

● Temperature and humidity monitoring

● Leakage current monitoring

function overview

function	Description
measurement (Together)	Three-phase AC kWh, kVarh, Active Power, Reactivity, Current, Voltage, Power Factor, Apparent Power, Frequency, Zero Ground Voltage, Neutral Line Current
measurement (performance quality)	Total Harmonic Distortion (THD), 2-63 Harmonics, Current and Voltage Unbalance Degree, Current K Coefficient (KF), Voltage Peak Coefficient (CF), Telephone Waveform Factor (THFF), Peak Voltage, Voltage and Current Sequence Quantity
temperature and humidity surveillance	Temperature monitoring range: -40℃～+99℃ Humidity measuring range: 20%～90%
leakage current	2-channel leakage current measurement
accuracy	Measurement accuracy of the electrical parameter: Voltage/current level 0.2, Active power/electrical energy level 0.5, Reactive power/electrical energy level 1 Accuracy of temperature measurement: ±5%
communication	RS485 interface (MODBUS-RTU protocol)
DO (Switch edition)	2-channel DO (digital output); AC 3A 250V/DC 3A 30V
DI (Switch input)	6-channel DI (digital input); dry contact
temperature	Operating temperature: -20℃～+55℃; Storage temperature: -40°C ~+70°C
moisture	≤95%RH, no condensation, no corrosive gas
Height	≤ 2000m

product models

AMC16Z-ZA	A+B independent 2-channel three-phase input U, 1, P, Q, S, PF, EP, EQ, UN to PG, neutral current 2-63rd harmonic voltage and current 6-channel passive switch input 2-channel switch output RS485 (Modbus RTU) communication
AMC16Z-ZD	Measuring voltage and current of A+B independent bidirectional DC bus Kw、Kwh、6DI+2DO+1 RS485(Modbus-RTU)
AMC16Z-KA	A+ B independent 2-way one-sidedness 24 active switching states
AMC16Z-KD	A+ B independent 2-way single-sided 24-pole switching state
AMC16Z-FAK24	Measurement of A+B two-way AC socket, total 24 branches fully electrical parameters and switching value status, 1RS485 (Modbus-RTU)
AMC16Z-FAK48	Measurement of A+B two-way AC socket, total 48 branches full electrical parameters and switching value status, 1RS485 (Modbus-RTU)
AMC16Z-FDK24	Measure A+B two-way DC output, total 24 branches fully electrical parameters and switching value/status, 1RS485(Modbus-RTU)
AMC16Z-FDK48	A+B two-way DC output measurement, total 48 branches fully electrical parameters and switching value status, 1RS485 (Modbus-RTU)
