AMC16Z-ZD DC multi-circuit energy meter

The AMC16Z-ZD series products have a compact design and adapt to the characteristics of multiple load circuits in the data center, achieving a high level of integration of monitoring circuits that can accurately monitor any AC or DC load in the data center. Ideal for monitoring and managing the power supply of servers in the data center.

A+B independent 2-circuit busbar, DC main line

U, I, P, Q, S, PF, kWh, kvarh

Harmonic: 2~63 times

2 switching outputs

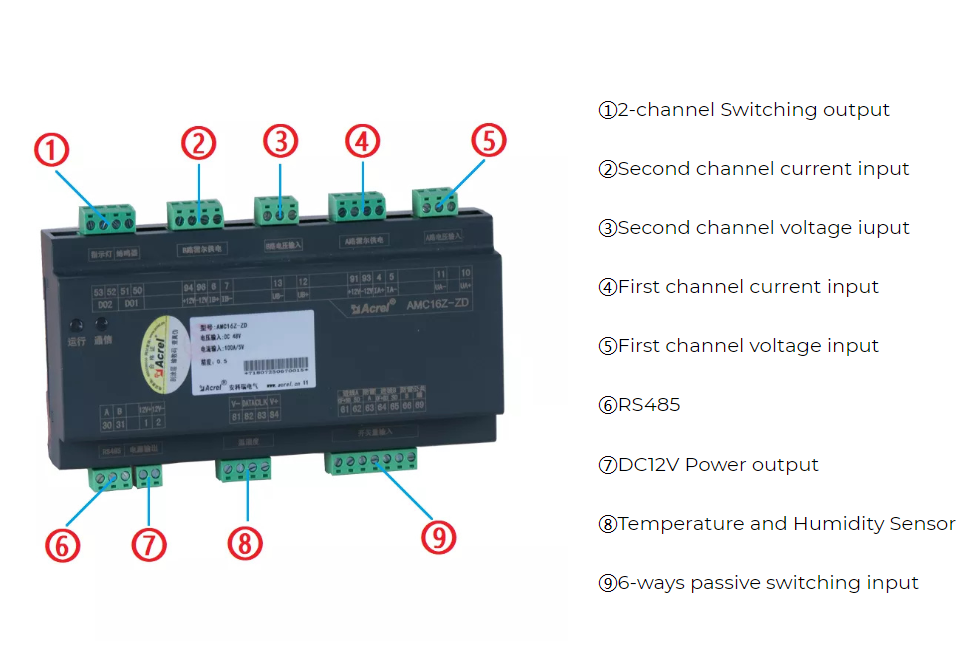

1 RS485 communication

Certificates: LVD, EMC

Product info

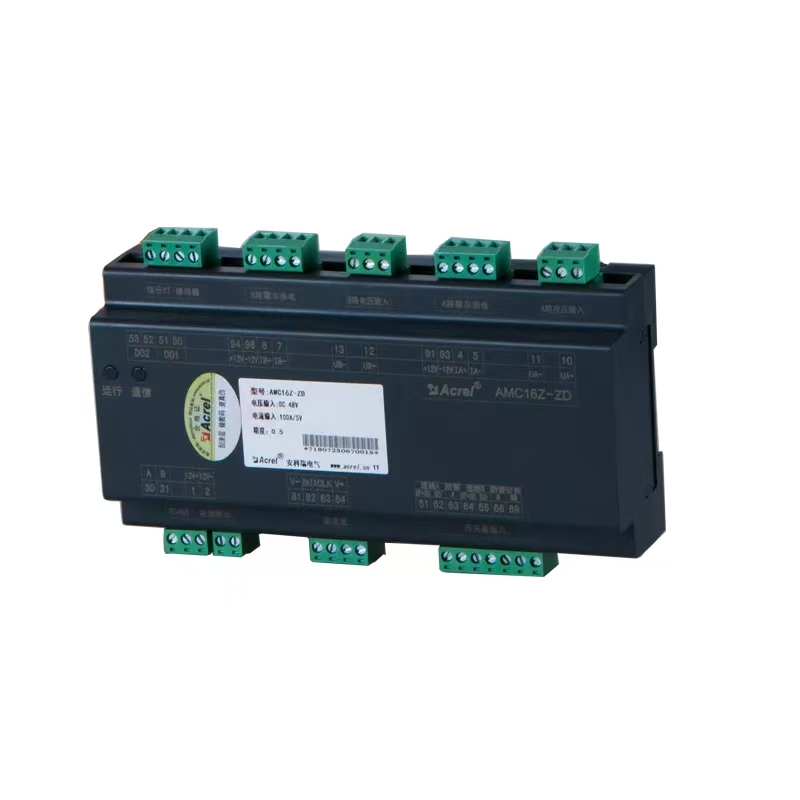

DC multi-circuit energy meter
A+B independent 2-channel three-phase inlet
U, I, P, Q, S, PF, kWh, kvarh
DC 12V output
ambient temperature and humidity
Nominal voltage:	DC 48V/240V/336V
Harmonic:	2~63 times

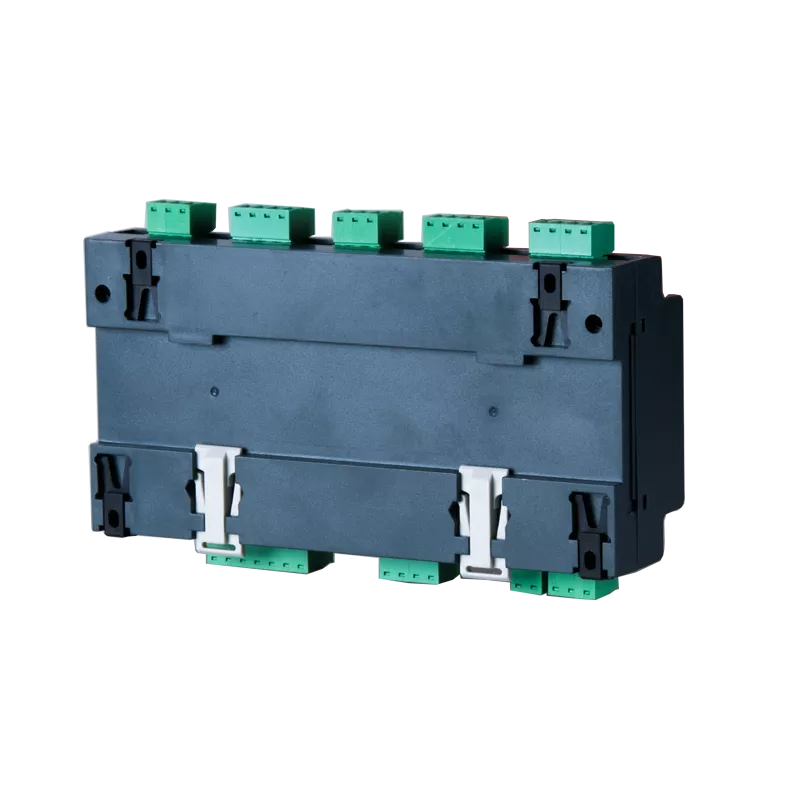

Installation:	DIN rail 35mm
Frequency:	45~65Hz
Dimension(LWH):	180mm* 94.3mm* 45mm
Auxiliary power supply:	power supply of the electrical signal
Application:	Specially designed for powering servers in data centers

Technical data

Technical parameters

bus voltage	nominal voltage	DC 48V/240V/336V
	measuring range	±20%
current input loop	5V (Hall Sensor, powered by (AMC16Z-ZD ±12V)
temperature and humidity	Temperature monitoring range: -40℃～+99℃
	Humidity measuring range: 20%～90%
Measurement accuracy	Incoming line	Voltage/Current 0.5 level, Power/Energy level 1
	temperature	±1℃
	humidity	±5%
communication	RS485 interface (MODBUS-RTU protocol)
installation method	DIN35mm rail or base plate mounting
Electromagnetic compatibility	Antistatic interference	level 4
	Electrically Resistant Rapid RorTransient outbreaks	level 3
	Overvoltage protection	level 4
	RF-resistant Electromagnetic field radiation	level 3

product models

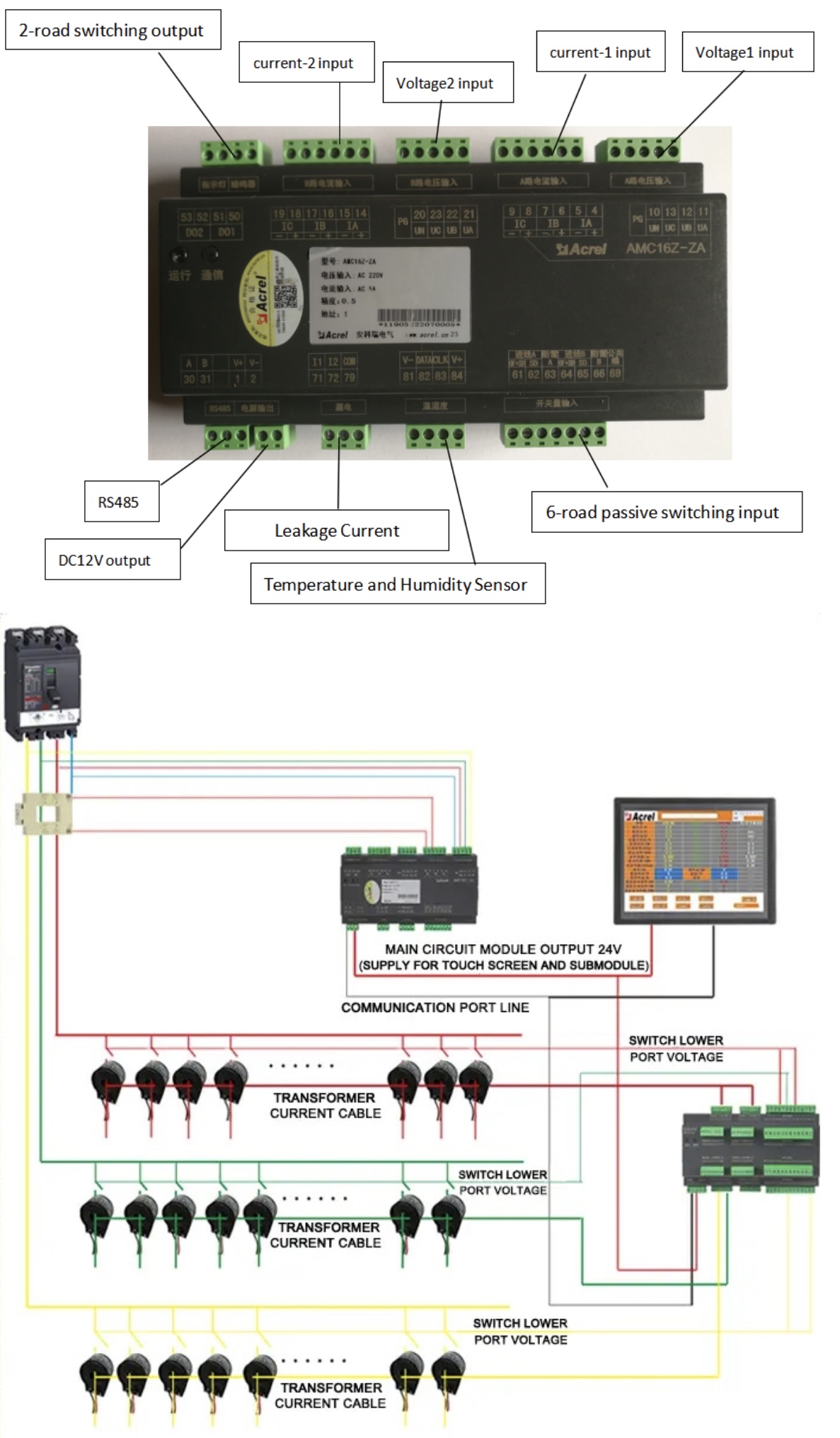

AMC16Z-ZA	A+B independent 2-channel three-phase input U, 1, P, Q, S, PF, EP, EQ, UN to PG, neutral current 2-63rd harmonic voltage and current 6-channel passive switch input 2-channel switch output RS485 (Modbus RTU) communication
AMC16Z-ZD	Measuring voltage and current of A+B independent bidirectional DC bus Kw、Kwh、6DI+2DO+1 RS485(Modbus-RTU)
AMC16Z-KA	A+ B independent 2-way one-sidedness 24 active switching states
AMC16Z-KD	A+ B independent 2-way single-sided 24-pole switching state
AMC16Z-FAK24	Measurement of A+B two-way AC socket, total 24 branches fully electrical parameters and switching value status, 1RS485 (Modbus-RTU)
AMC16Z-FAK48	Measurement of A+B two-way AC socket, total 48 branches full electrical parameters and switching value status, 1RS485 (Modbus-RTU)
AMC16Z-FDK24	Measure A+B two-way DC output, total 24 branches fully electrical parameters and switching value/status, 1RS485(Modbus-RTU)
AMC16Z-FDK48	A+B two-way DC output measurement, total 48 branches fully electrical parameters and switching value status, 1RS485 (Modbus-RTU)
