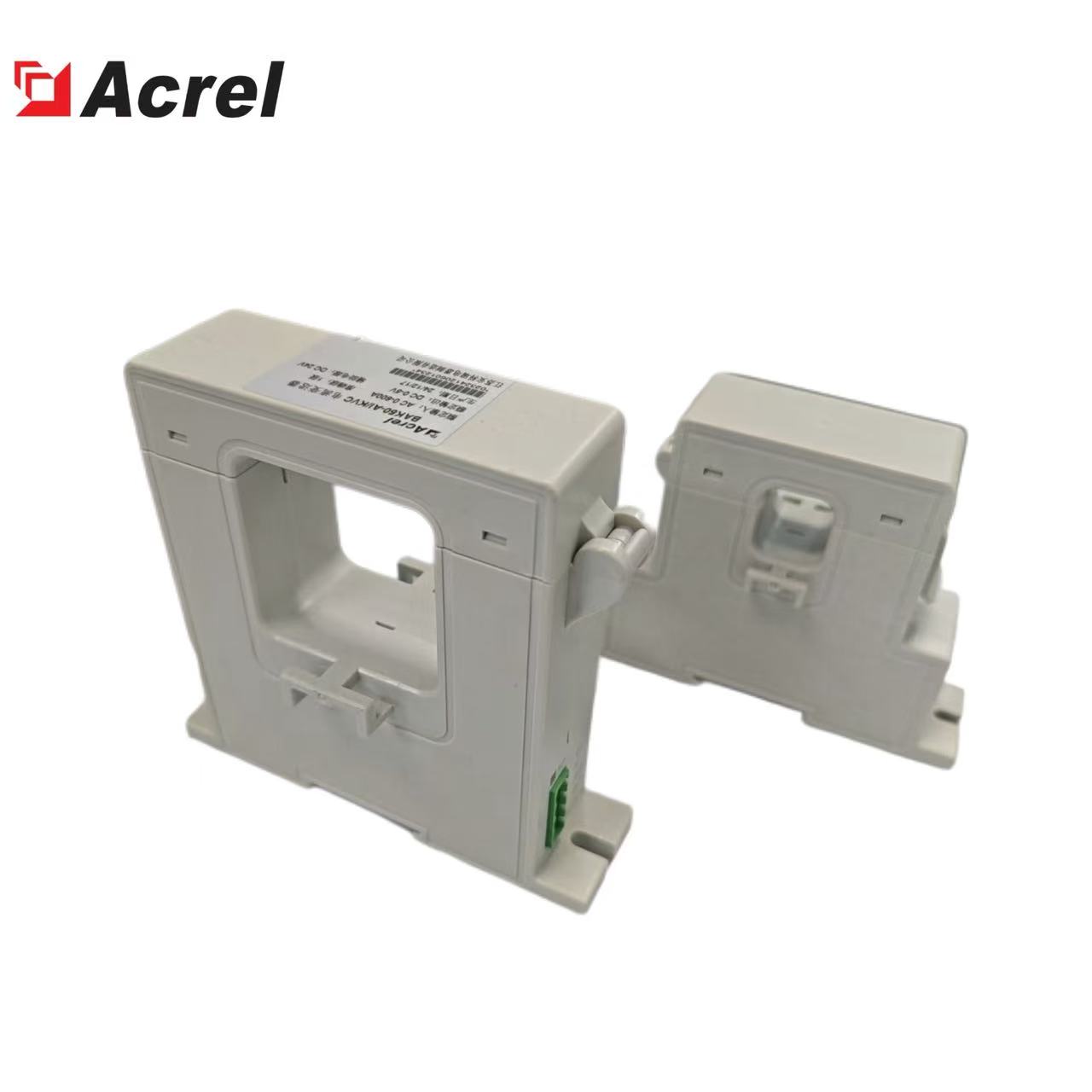

BA Series Open Current Transformers
The BA series split-core products utilize the principle of electromagnetic induction for real-time AC current measurement in power grids. Using constant current and linear compensation technology, they isolate and convert the measured current into a standardized DC signal. Thanks to their safe operation with 12 V or 24 V DC, they are suitable for a wide range of applications in industrial automation.

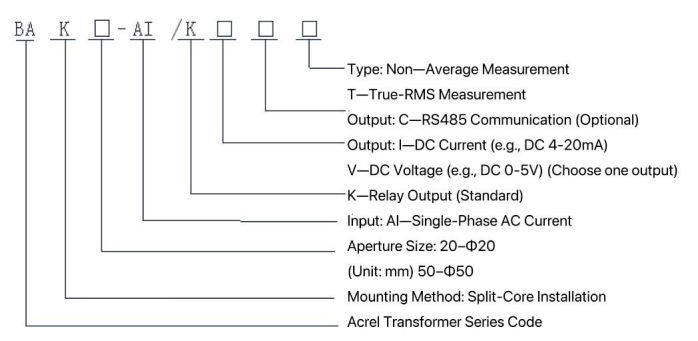

Product info
Technical data
| Technical parameter | specification | ||
| Accuracy class | class 1 | ||
| Entrance | Nominal value | BAK20-AI | Current AC 0.5A, 50A, 200A, etc. AC0～(0.5～200A) |
| BAK50-AI | Current AC 60A, 300A, 600A, etc. AC0～(60～600A) | ||
| overload | Continuous 1.2x, instantaneous current 10x/5 seconds | ||
| Power consumption | ≤1VA | ||
| Measurement frequency | 45Hz to 65Hz | ||
| Exit | Nominal value | DC0/4～20mA,0～5/10V | |
| Load resistance | ≤500Ω for current output, ≥10KΩ for voltage output | ||
| communication | RS485 interface / Modbus RTU protocol | ||
| Digital Edition (DO) | 1 relay output, normally open (NO) contacts Capacity 2A/30VDC or 2A/250VAC |
||
| Indicators | 2 indicators: RUN (operational status), Alarm (DO status) | ||
| reaction time | ≤400ms | ||
| Power supply | Tension | DC 12V or 24V | |
| Power consumption | ≤1W | ||
| Insulation resistance | > 100MΩ | ||
| Dielectric strength | 2.0kV / 1min, 50Hz between input / output / power supply | ||
| temperature coefficient | ≤400ppm / ℃ when -10 ℃ ~ 55 ℃ | ||
| Environment | temperature | Operating temperature: -10 ℃ ~ + 55 ℃ Storage temperature: -25 ℃ ~ + 70 ℃ | |
| humidity | ≤93% RH, non-condensing, non-corrosive gas environment | ||
| Height | ≤2000m | ||
|

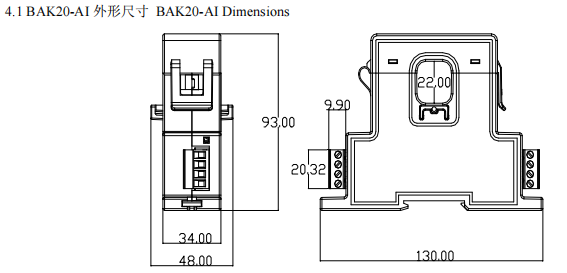

Weight |
BAK20-AI approx. 242g |
BAK50-AI approx. 468g | |
| Assembly | TS35 rail, or attached to the cabinet with screws | ||
