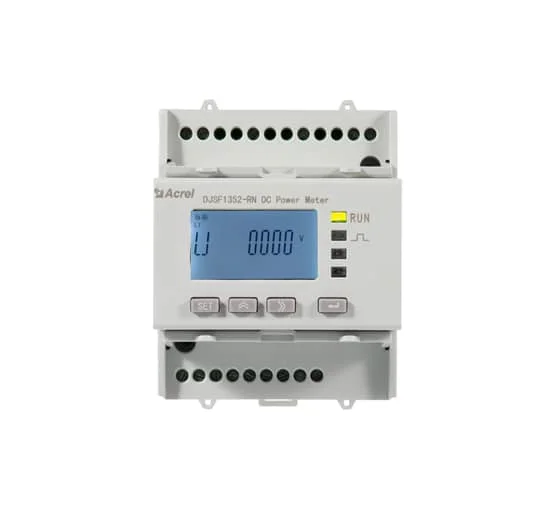

DJSF1352-RN DIN-rail DC energy meter

DJSF1352-RN dual input DC energy meter is mainly designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications. This series of meters can measure voltage, current, power and positive and negative energy in the DC system. In the actual use of the site, it can measure the total energy, and can measure the energy within the specified time period. The detection results can be used for local display and can be connected to industrial control equipment, computers, measurement and control systems.

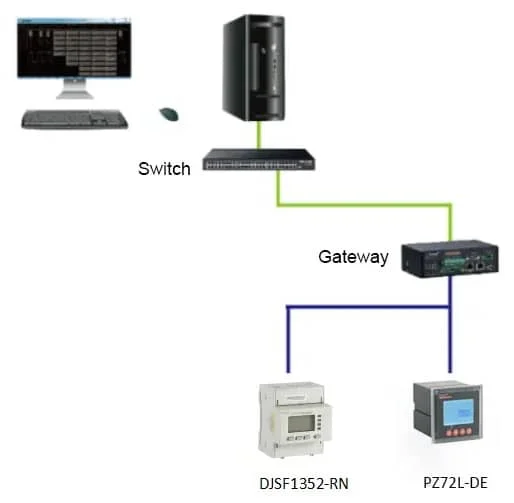

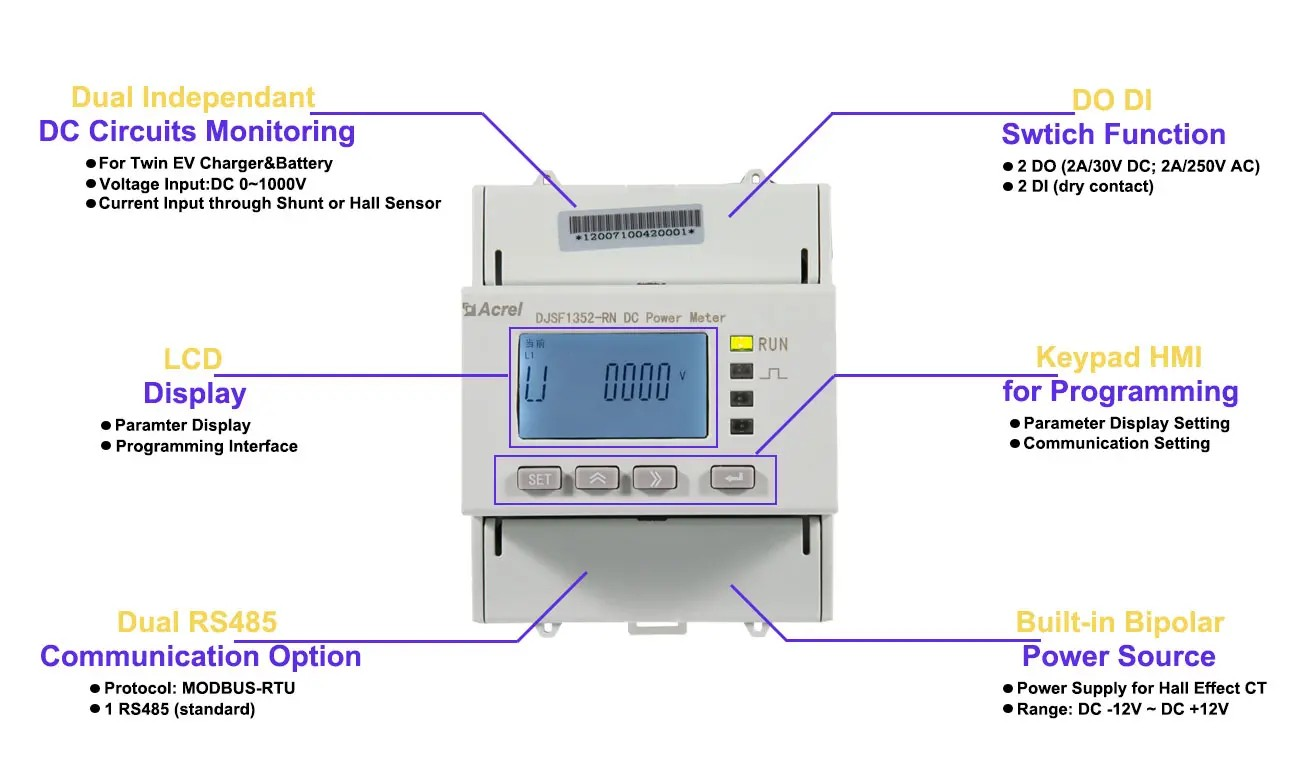

  • RS485 communication interface
  • Support Modbus RTU protocol
  • Relay alarm output and digital input function
  • Setting the ratio, alarm and communication parameters via one button
  • Event recording of switch, programming, maximum and minimum value recording

Offer

Product info

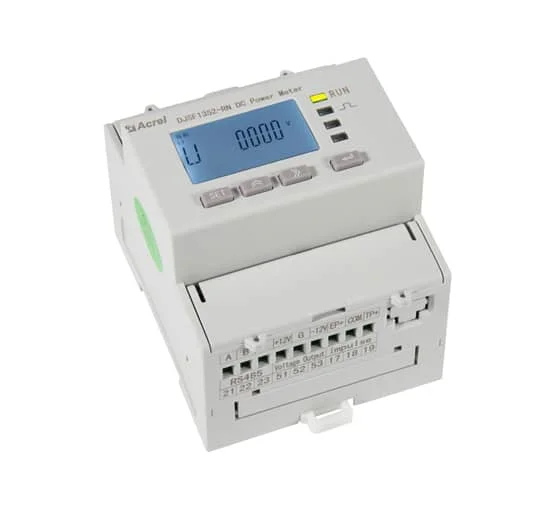

DIN rail DC energy meter
Measurement accuracy:Class 1.0
Frequency:/
Power supply (self-supply):AC/DC 85-265V or DC 24V(±10%) or DC 48V(±10%）
Pulse output:/
Input consumption:Voltage<0.2VA, Current<0.1VA
Installation:35mm
Switching relay:DC 30V/3A AC 220V/3A

Technical data

Technical parameters Indicators
Entrance Nominal value Voltage input Power input
DC0-1000V Shunt:0-75mV

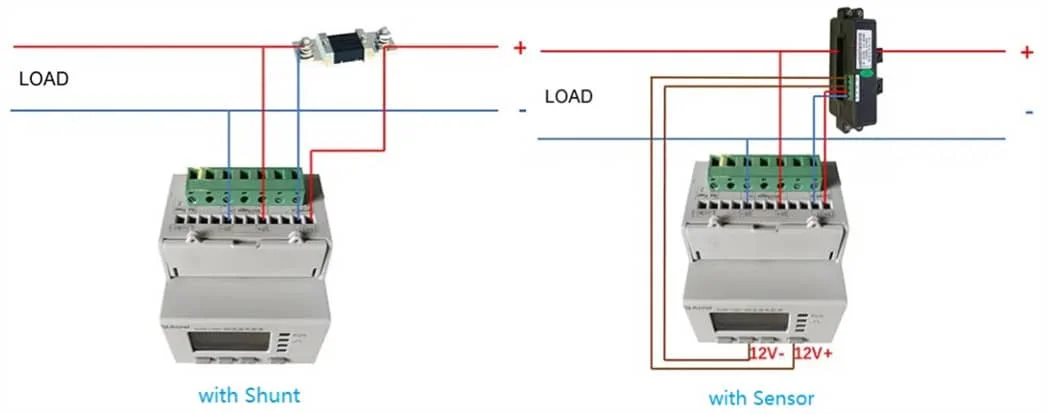

See the physical circuit diagram Hall sensor: 0-20mA,4-20mA,0-5V,0-10V etc.
overload 1.2 times rated power (continuous); 2 times rated power/1 second
Power consumption Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class class 1

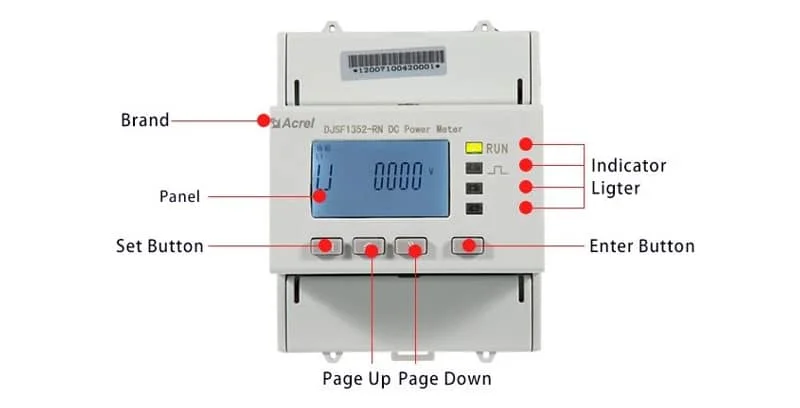

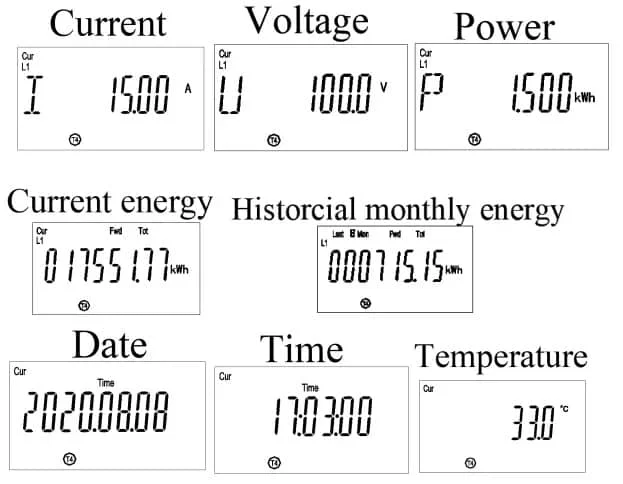

Features Advertisement 8-bit segment LCD display (LCD)
Communication interface RS485, infrared RS485, infrared
Communication protocol Modbus RTU，DL/T 645-2007
Switch Switching output 2 relay outputs, 2A/30VDC or 2A/250VA
Switch input 2 potential-free contact inputs
Pulse output A second pulse output, an energy pulse output
See the display SYS->PLUS in the menu setting of the meter
For example: The meter shows 100, which corresponds to 100 Imp/kWH
Power supply Voltage range AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
Power consumption ≤ 3W
Mains frequency withstand voltage Power supply // Voltage input // Current input // Relay output and switching input // Communication interface // Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switching input 2kV/1min
Insulation resistance ≥ 40MΩ
Average barrier-free working hours ≥50000h
Vicinity temperature Normal operating temperature: -25 °C ~ +65 °C;
Limit operating temperature: -40 °C ~ +70 °C;
Storage temperature: -40℃～+80℃
humidity ≤93%RH, no condensation, no corrosive gas
Altitude ≤2500m
