Solar energy storage project in a temple in Myanmar

Project features:

1. Full utilization of sunlight resources to generate green electricity;
2. Ensuring the safe operation of substations, photovoltaic systems, energy storage systems and other facilities;
3. Ensuring the normal operation of certain consumers in off-grid mode;
4. Use of certain energy storage systems to reduce peak loads and bridge load dips in order to reduce electricity costs;
5. Ensuring that excess electricity is not fed into the grid.

Site information:

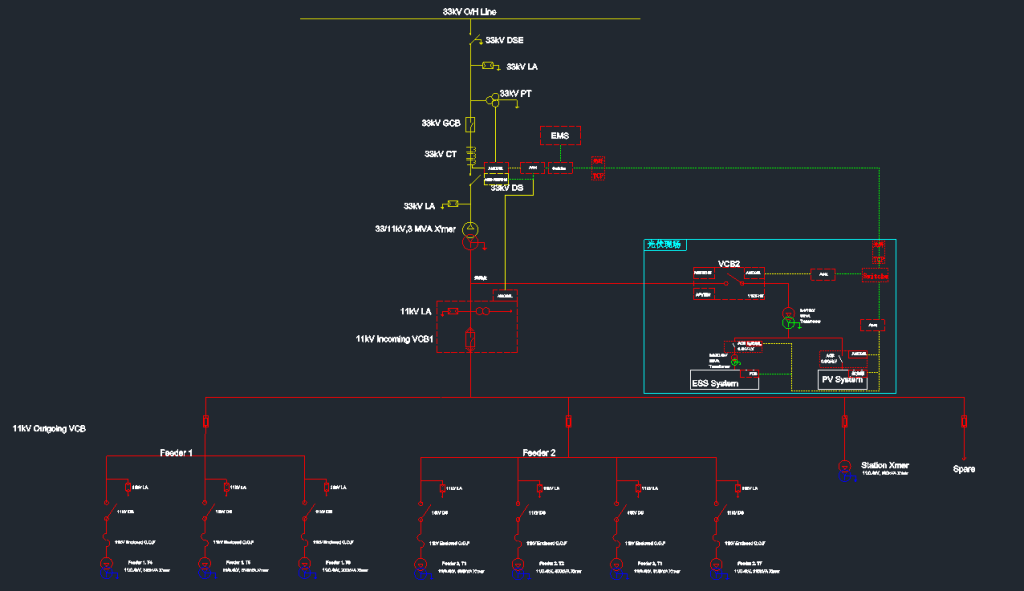

1. The substation is 33kV incoming line and equipped with Ankerui meter;
2. The energy storage is converted to 0.4kV through the step-down transformer, and after merging with the photovoltaic, it is connected to the 11kV grid through the step-up transformer and the grid-connected cabinet. The energy storage circuit and photovoltaic circuit are equipped with Ankerui meters; the grid-connected cabinet is equipped with power quality and anti-islanding devices;
3. The load is powered by a 11/0.4kV step-down transformer, with a total of 7 circuits, and equipped with Ankerui meter.

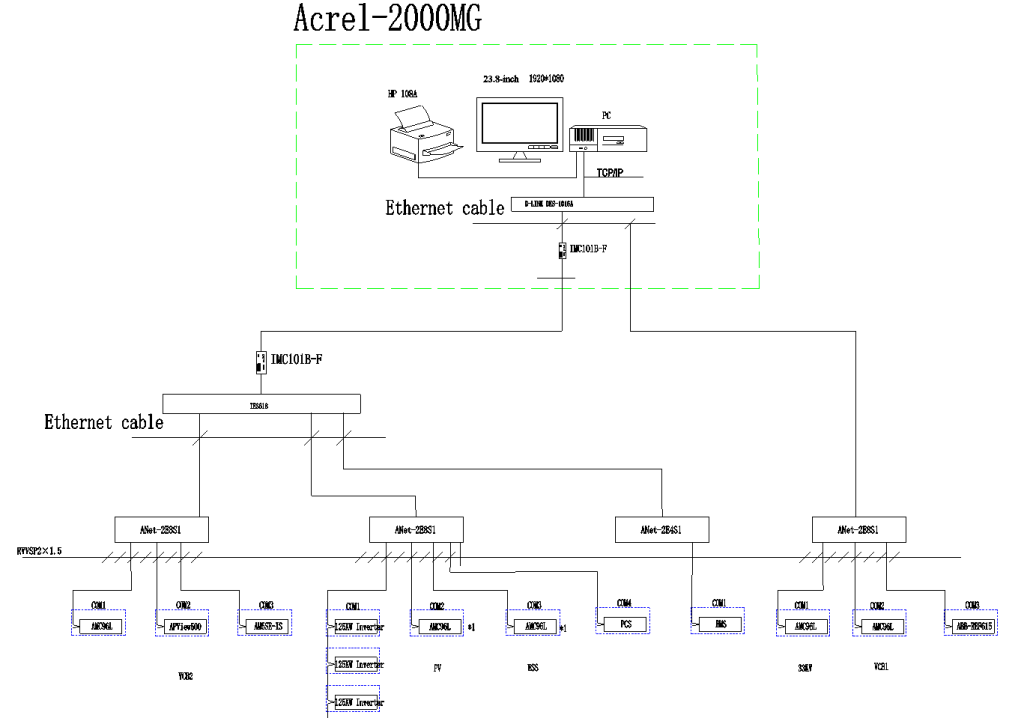

Platform layer:
Acrel-2000MG with printer

Communication layer:
Anet gateway, switch

Device layer:
Electricity meters, inverters, energy storage PCS, BMS, power quality, anti-islanding, comprehensive ABB protection equipment;
