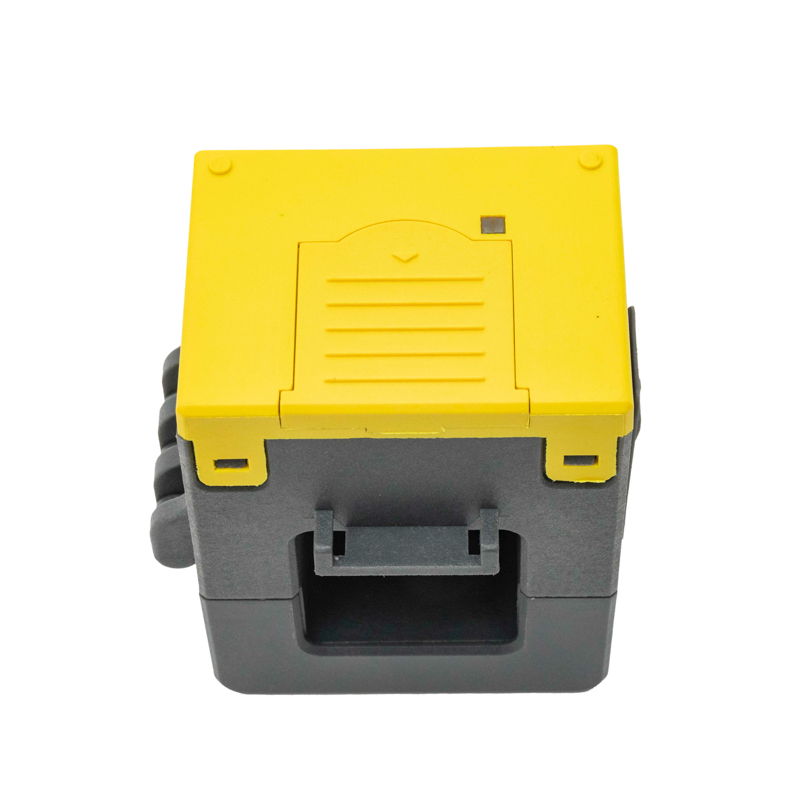

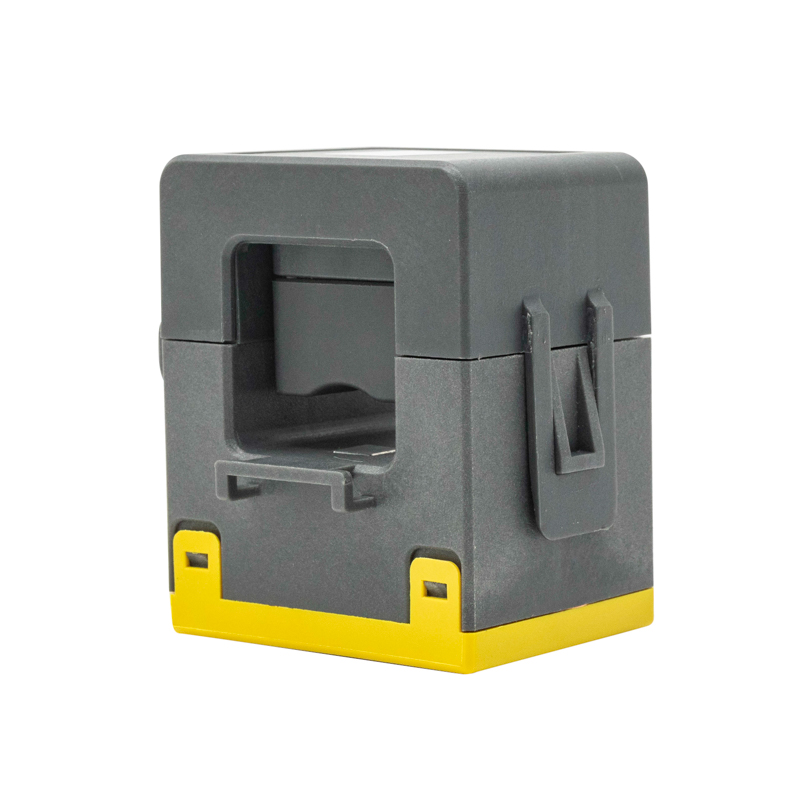

ACE100-29 Wireless Temperature Measurement Sensor

The ACE100 wireless temperature and current sensor is primarily used for monitoring temperature and current in low-voltage switchgear transmission cables. Utilizing a dual power supply model with an internal battery and electromagnetic energy harvesting, the sensor quickly and accurately measures temperature and current data from low-voltage cables and transmits it wirelessly to a receiver. The product is easy to install and captures comprehensive cable data. This allows users to identify hidden hazards in the line early, ensure supply reliability, and implement a smart distribution network.

• Measuring range: -50 ℃ ~ + 125 ℃; Accuracy: ± 1 ℃

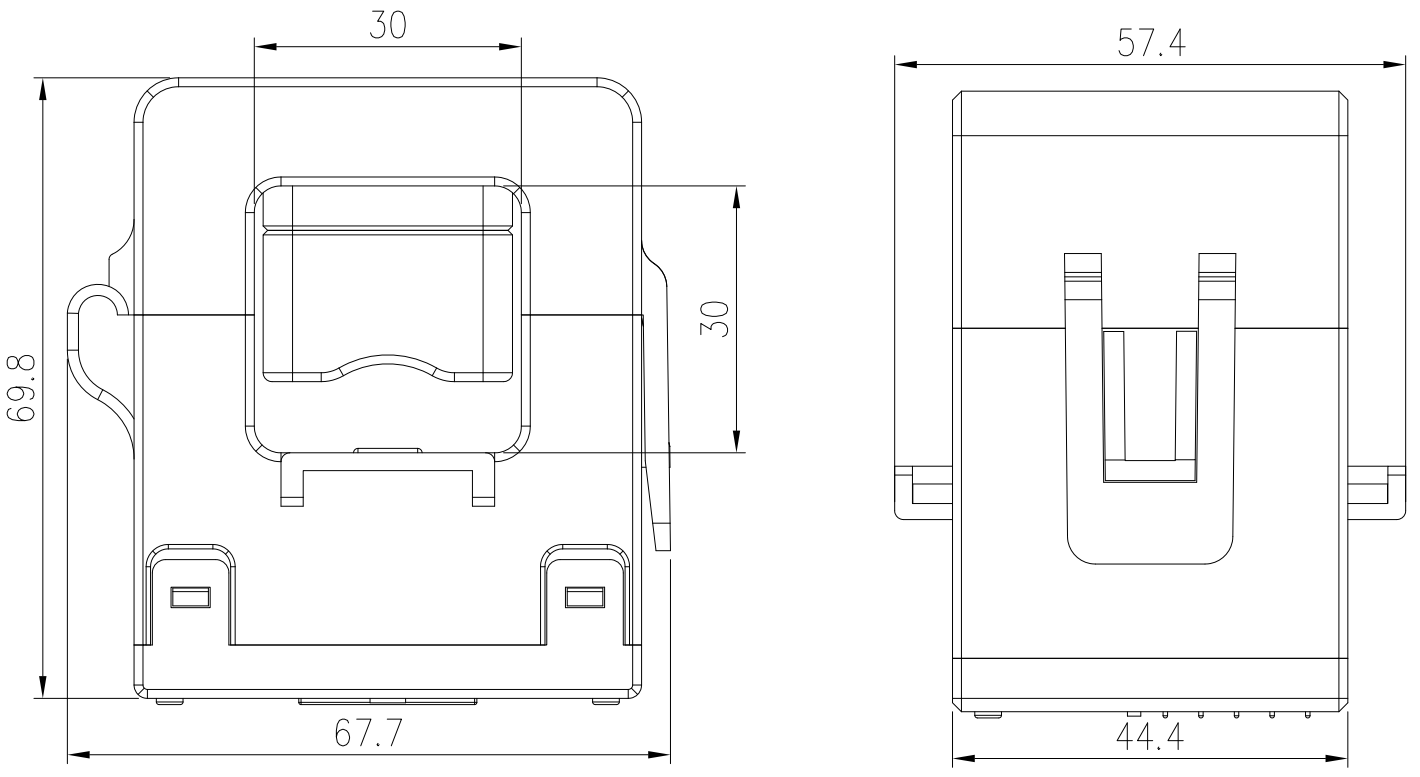

• Diameter: 6~29mm
• Current range: AC 1 ~ 400A
• Power supply: Battery or current sensor power (2.5A or higher)
• Wireless transmission: 433MHz or 470MHz
• Transmission range: 150 meters in open areas

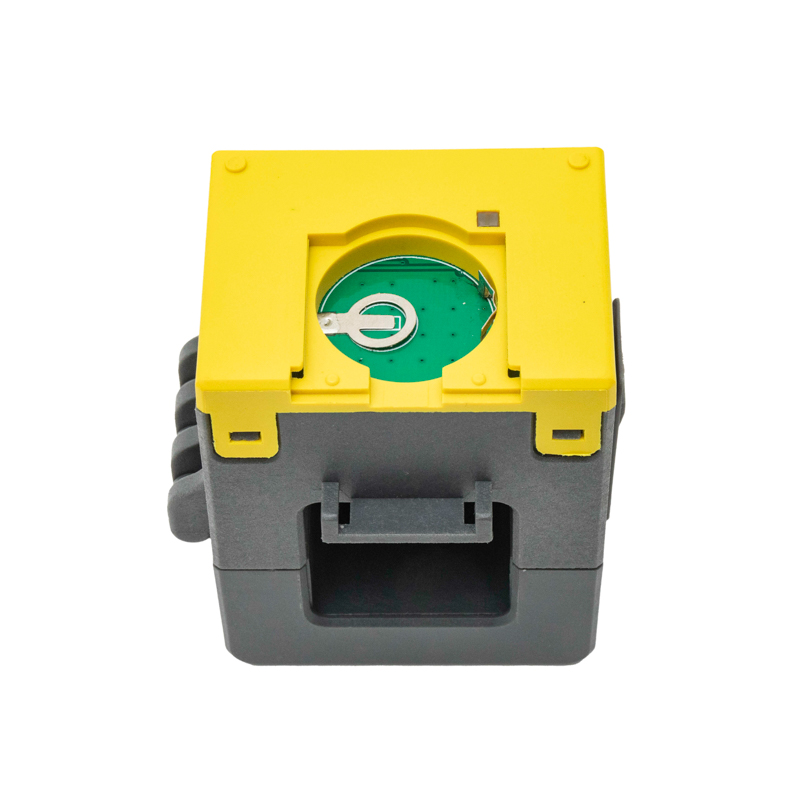

• Battery-operated, more than 5 years (25°C)
• CE certified
