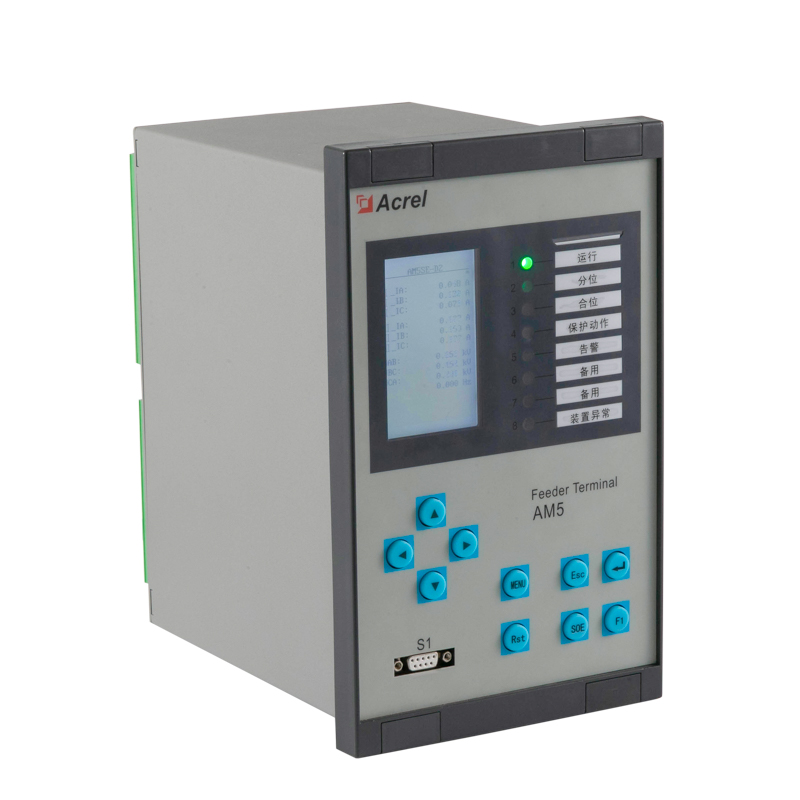

AM5SE Series Medium Voltage Protection Relays

The AM5SE relay is modular in design and can be optimized for virtually all types of branch circuit protection applications in medium-voltage distribution systems. It can be optimized for line, transformer, distribution transformer, motor, capacitor, busbar, and PT protection applications in medium-voltage distribution systems.

  • 3 phase currents, 2 differential currents
  • 3 phase voltages, 1 differential voltage
  • 20 digital inputs, 10 digital outputs
  • 2 programmable 4–20 mA DC outputs
  • Trip and close circuit monitoring, adjustable to 0.25–5 A trip and close current.
  • 2 RS485 ports, 2 Ethernet ports
  • 1 IRIG/B port, 1 USB port for the AM5SE setting software
  • 1 RS232 port, powerful CPU supports Modbus-RTU/TCP, IEC 60870-5-103,101

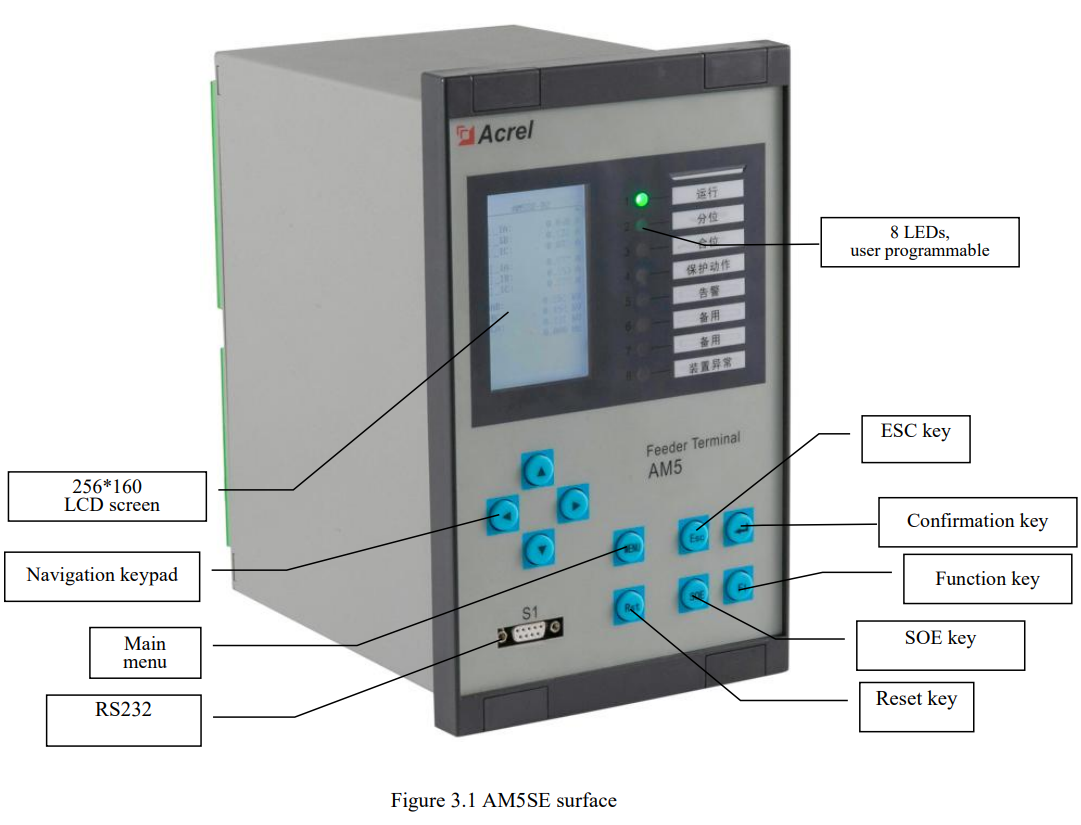

  • Clear LCD display for alarms and events, programmable function keys and LEDs, programmable trigger output matrix
  • The relay has a sequence of event recordings and fault recordings.

Offer

Product info

Power supply:AC/DC220V or AC/DC110V or DC48V
Nominal voltage: AC 100V/100/√3V
Accuracy: ±0.5 %
Rated current: AC 5 A/1 A
Nominal frequency: 50 Hz or 60 Hz
Mechanical life: ≥10000 times
Switching capacity: ≥1000 W, L/R = 40 ms
Inrush current:continuous ≥ 5 A, short-term (200 ms) ≥ 30 A

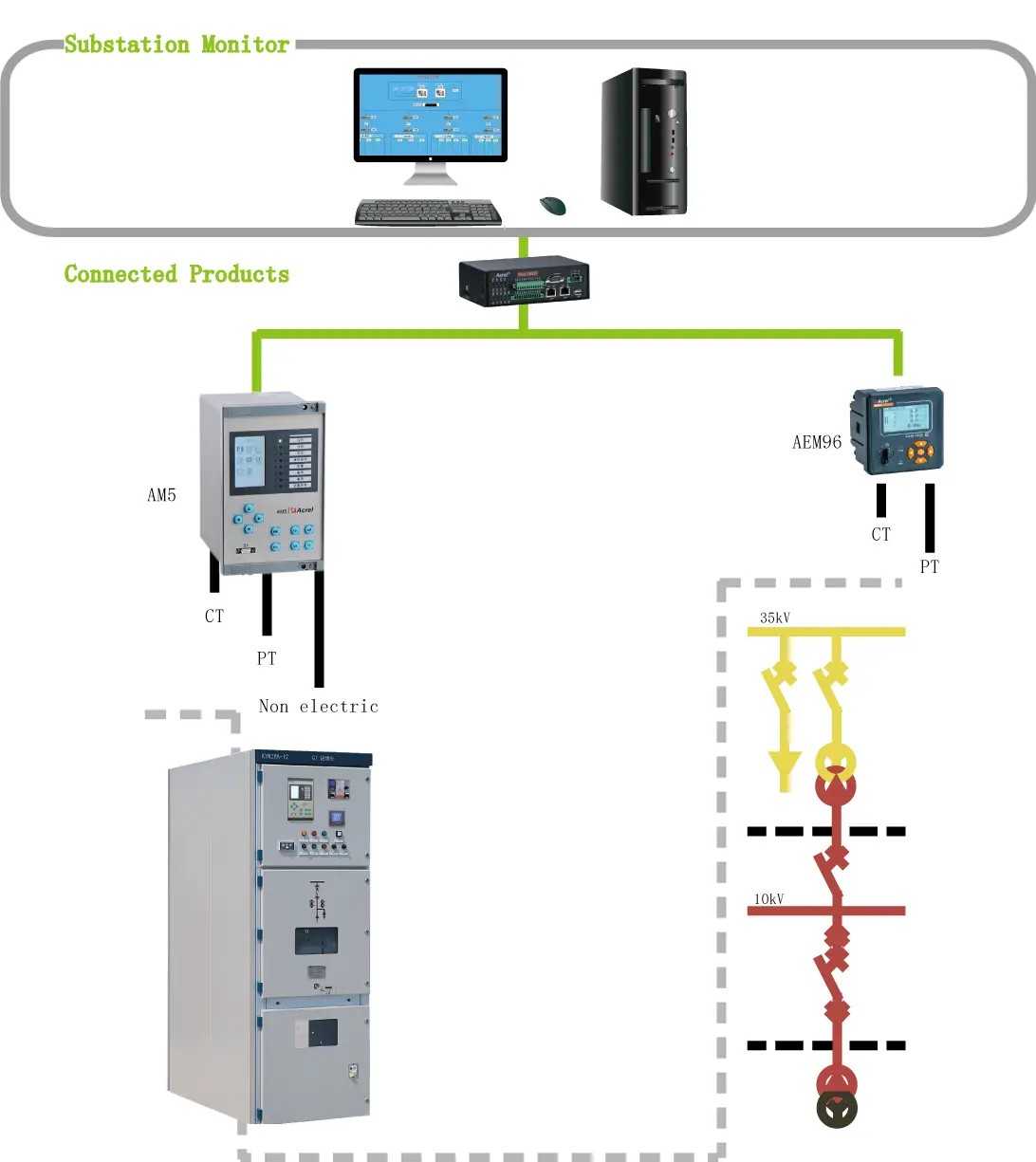

Widely used in substations

Technical data

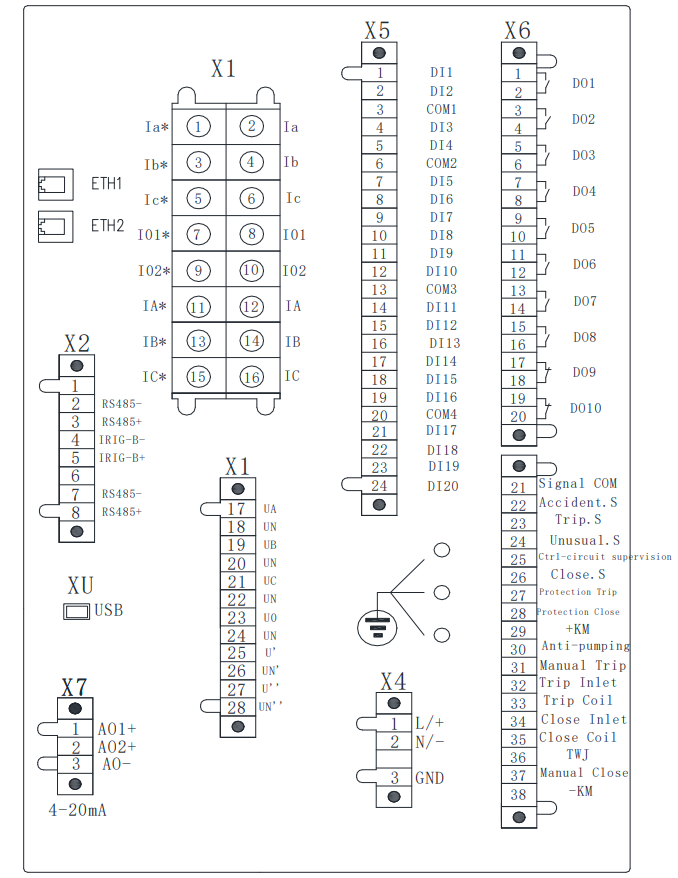

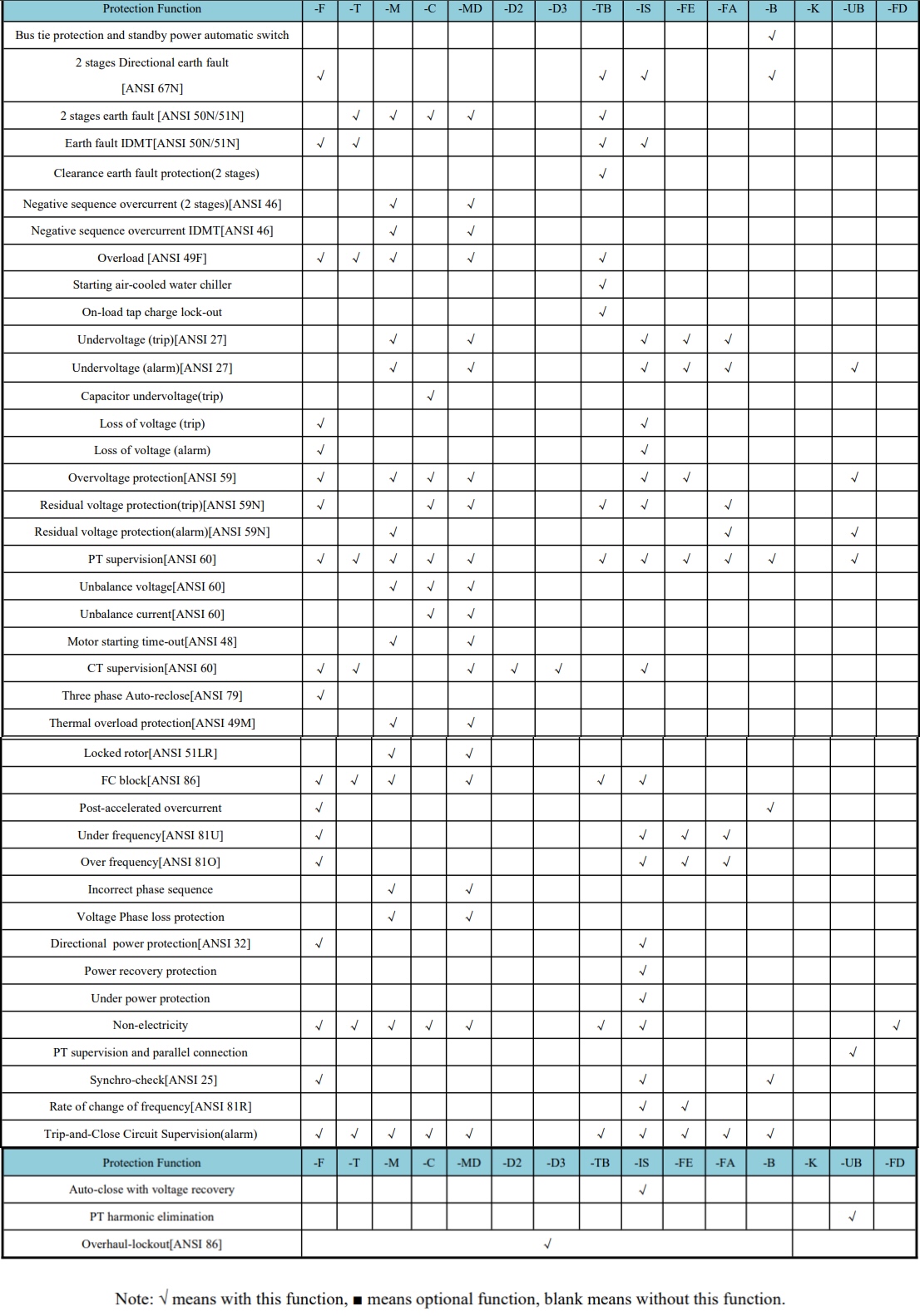

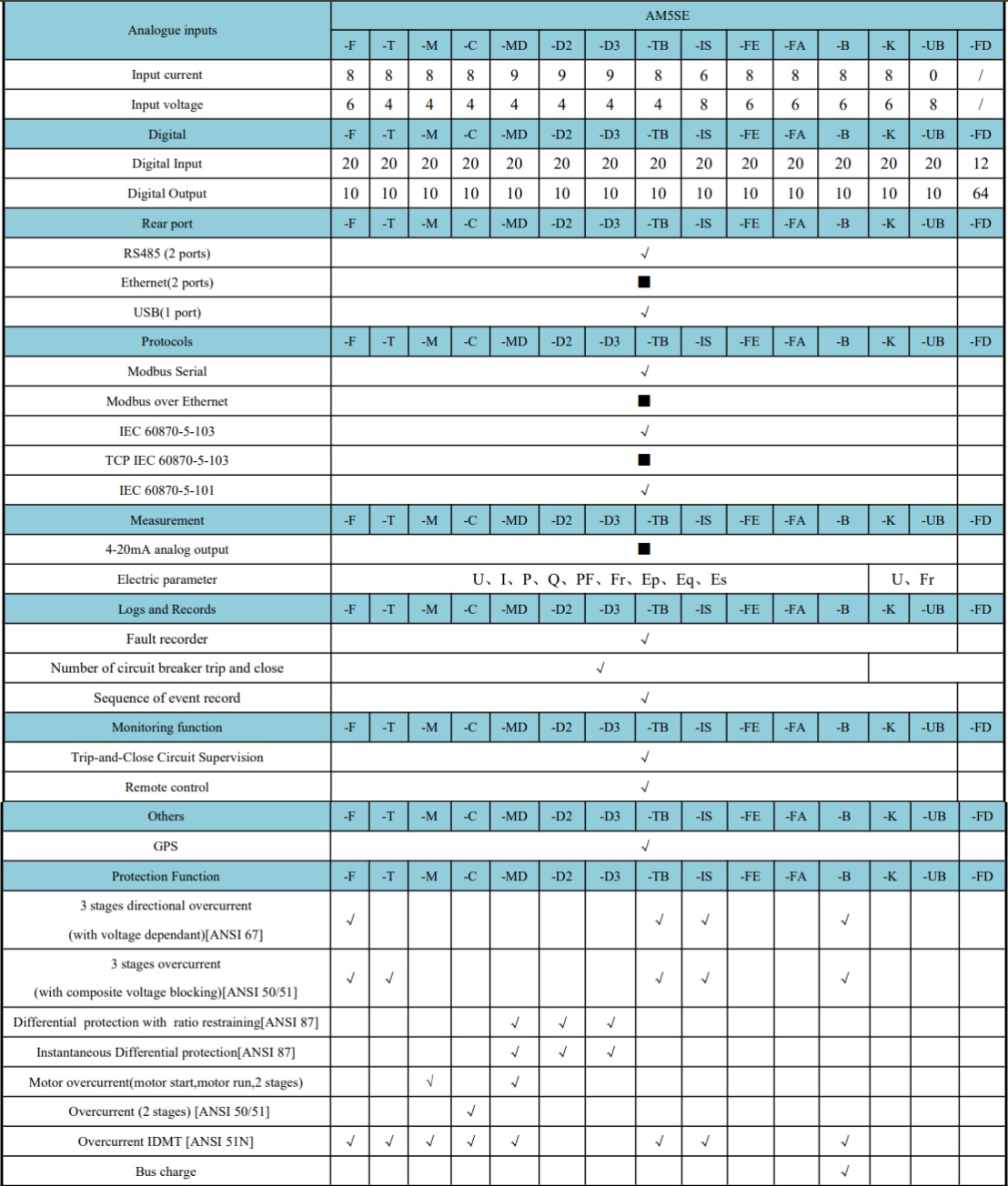

version AM5SE-F, AM5SE-T, AM5SE-M, AM5SE-C, AM5SE-B, AM5SE-D2, AM5SE-D3, AM5SE-TB, AM5SE-MD AM5SE-UB, AM5SE-IS, AM5SE-FE, AM5SE-FA, AM5SE-K
Power supply
nominal voltage AC/DC 110 V or AC/DC 220 V
PT inputs
Nominal value AC 100V/100/√3V AC 380V or 220V
PT-rated secondary area 0.1V～120V 0.1V ~ 456V
accuracy 0.5S
Phase CT inputs (protective current)
CT nominal value secondary range AC 5 A or 1 A
Dynamic 20 × CT rated current
accuracy 0.5S
frequency
Nominal frequency 50Hz or 60Hz
Frequency range 40 ~ 70Hz
Environmental properties
Operating temperature: 10 °C ~ +55 °C; Humidity: 5 °C ~ 95 °C; Storage: -25 °C ~ +70 °C
Protection class: IP20 (local control panel)

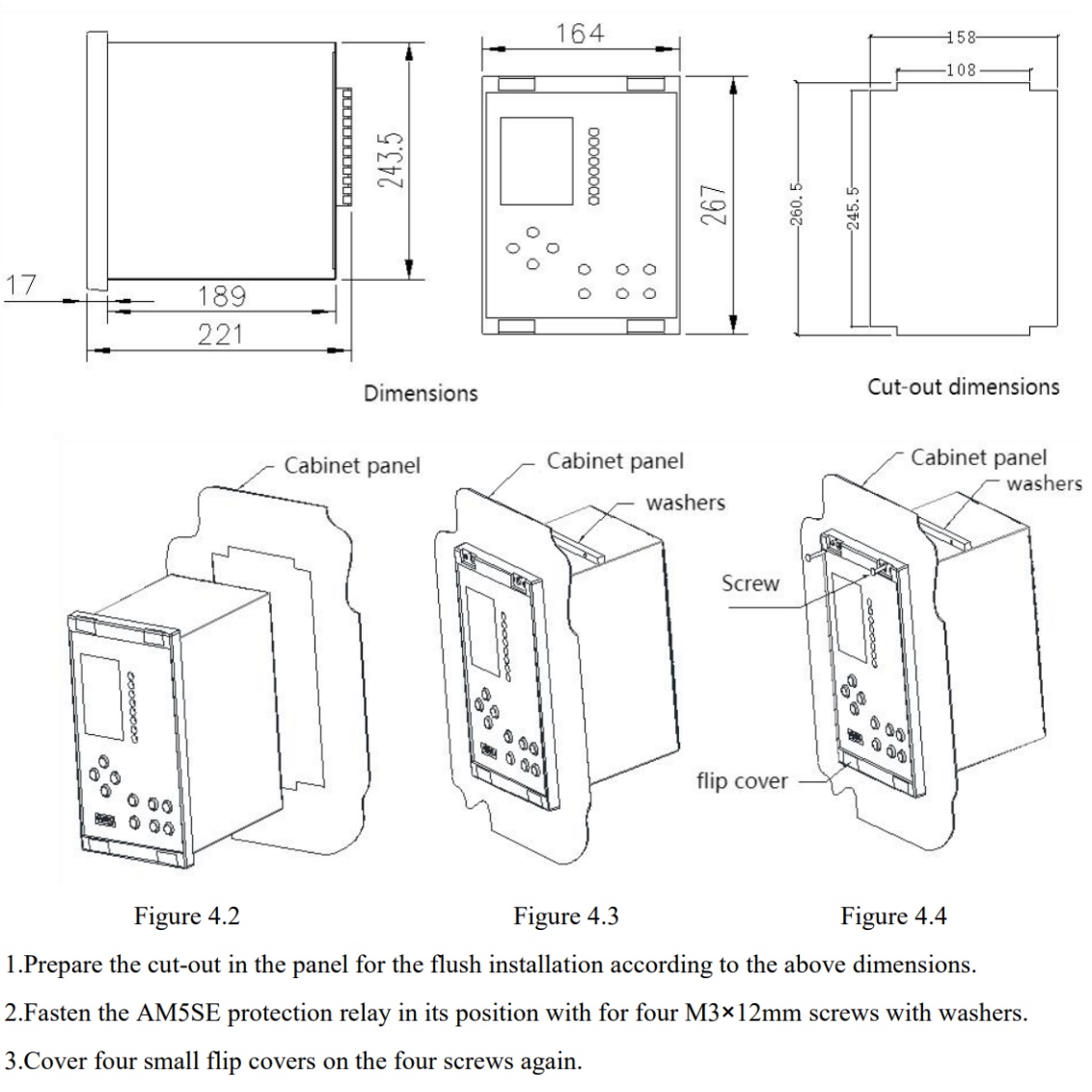

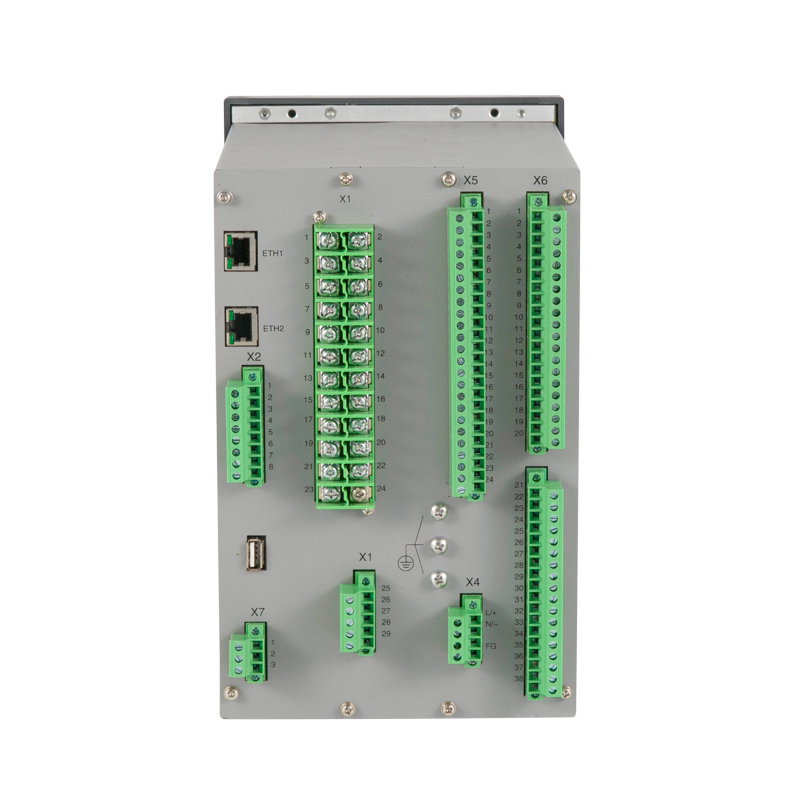

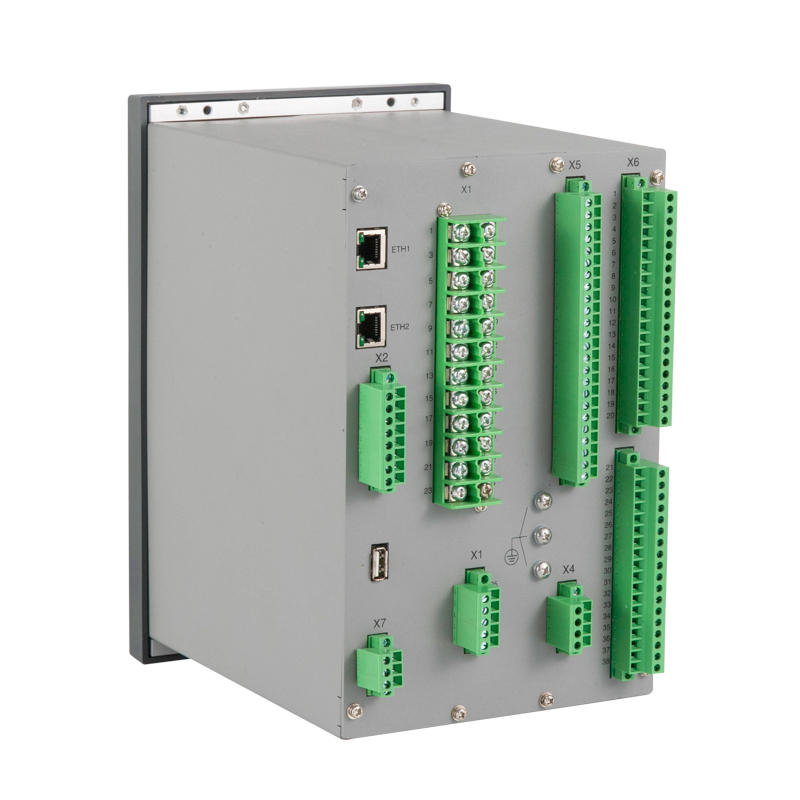

Product display
