ARTU100 Fernbedienungseinheit

ARTU100 remote control unit

Adaptive Ethernet communication with 10-100 Mbps, supports IPV4 and IPV6.

Configuration of website parameters, UDP broadcast, SNMMP network management and automatic DHCP IP access.

8-way server/client functionality as well as simultaneous 8-way client and 8-way server connections are possible.

8-way RS485 communication, adjustable baud rate from 1200–115200, data bit, check bit, and stop bit; each 485 port can connect to 30 counters.

Protocol conversion between MODBUS TCP and MODBUS RTU possible.

Power supply	AC/DC 85-265V, DC48V
Power consumption	≤9 W (without modules); ≤15 W (with modules, up to 3 modules)
Model	ARTU100-K32	32-way DI (active/passive, optional)
	ARTU100-K16	16-way DI (active/passive, optional)
	ARTU100-KJ8	8-way DI (active/passive, optional); 8-way DO, Output mode: Relay normally open contact output, Contact capacity: AC 250 V/3 A, DC 30 V/3 A
communication	RS485 communication	RS485 interface	2-way 485 communication; Modbus RTU protocol; baud rate 1200 – 38400 bps
Other	selector switch	10 bits

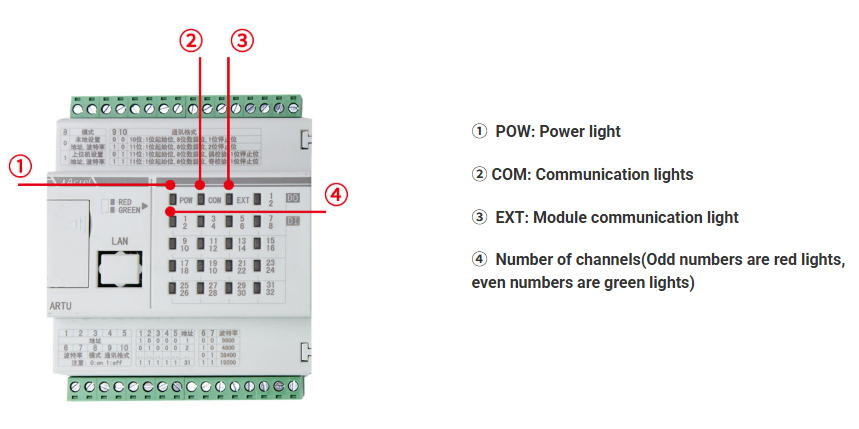

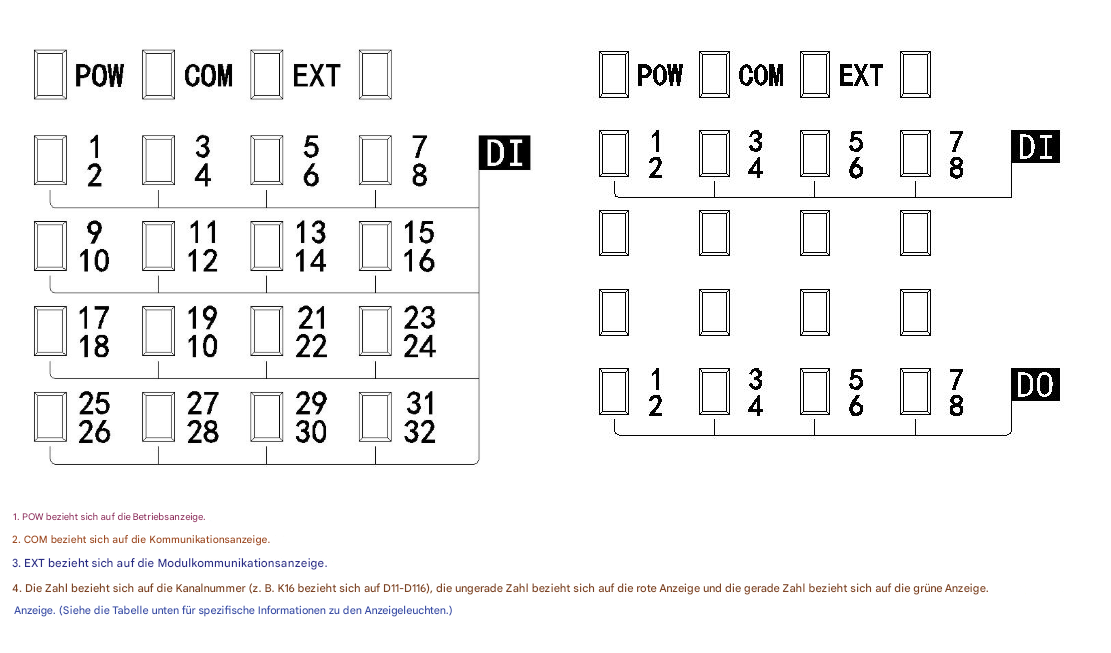

	Indicator light	20 indicator lights
Security	Operating voltage strength	Mains frequency withstand voltage: Housing and power supply, switching input, switching output, analog input, analog output, communication, AC 2 kV 1 min; AC 2 kV 1 min between power supply and switching output; AC 1 kV 1 min between analog input and analog output and between communication and switching input
	Insulation resistance	Input and output side to the housing > 100MΩ
Electromagnetic compatibility	Better than level 3
Vicinity	Operating temperature: -20 °C to +60 °C; Storage temperature: -40 °C to +70 °C; Relative humidity: ≤ 95 ℃ (without condensation); Altitude: ≤ 2500 m

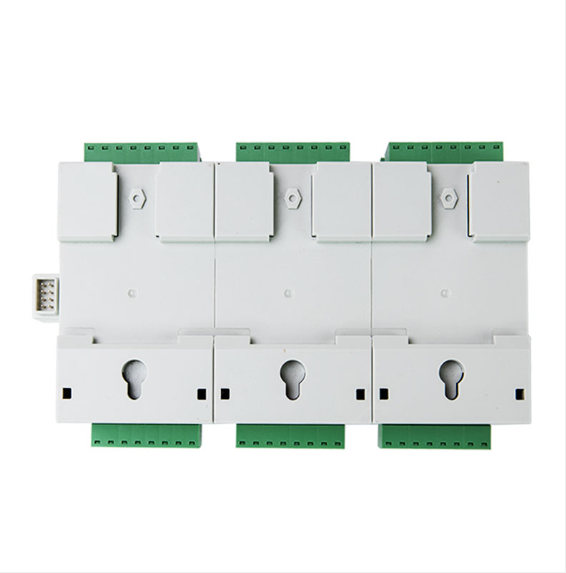

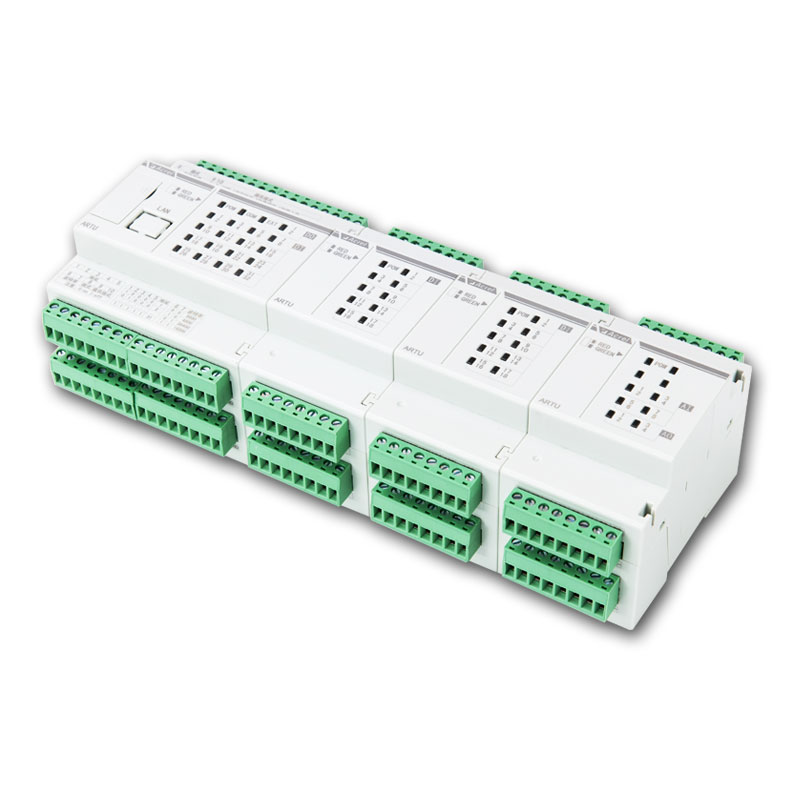

Product display
