| DC voltage/current input | |
| Use of magnetic insulation technology | |
| Response time <400 ms | |
| TS35 rail mounting | |
| Plug-in terminals | |
| Temperature drift coefficient: ≤200 ppm/℃ at level 0.5 |

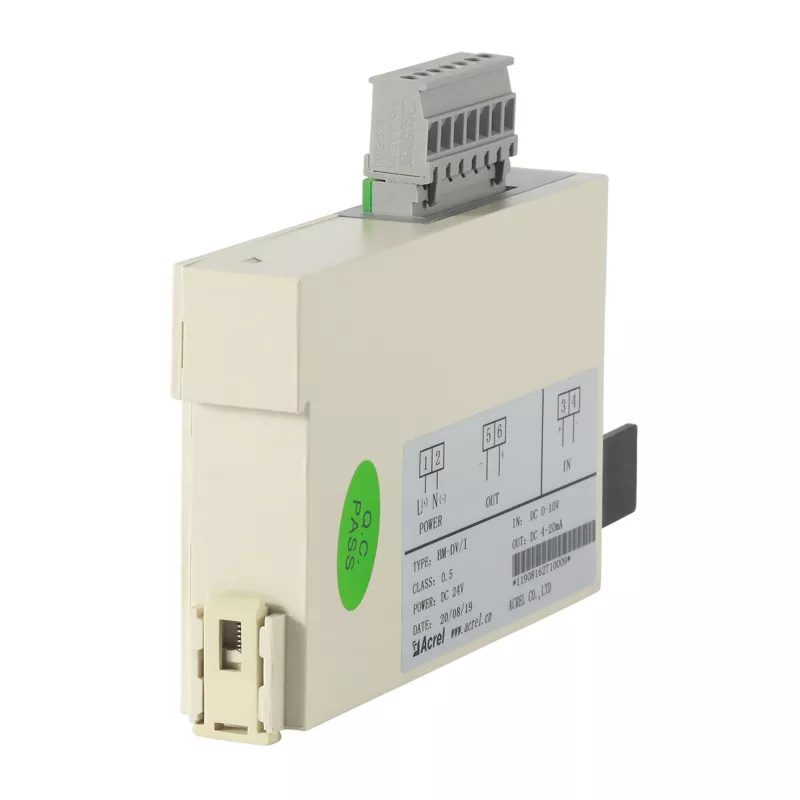

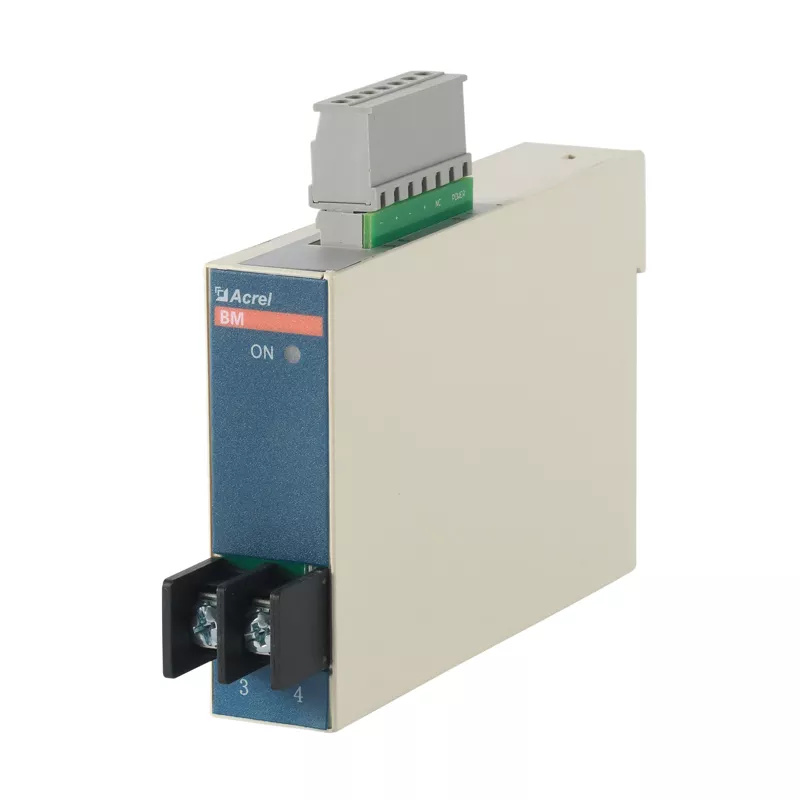

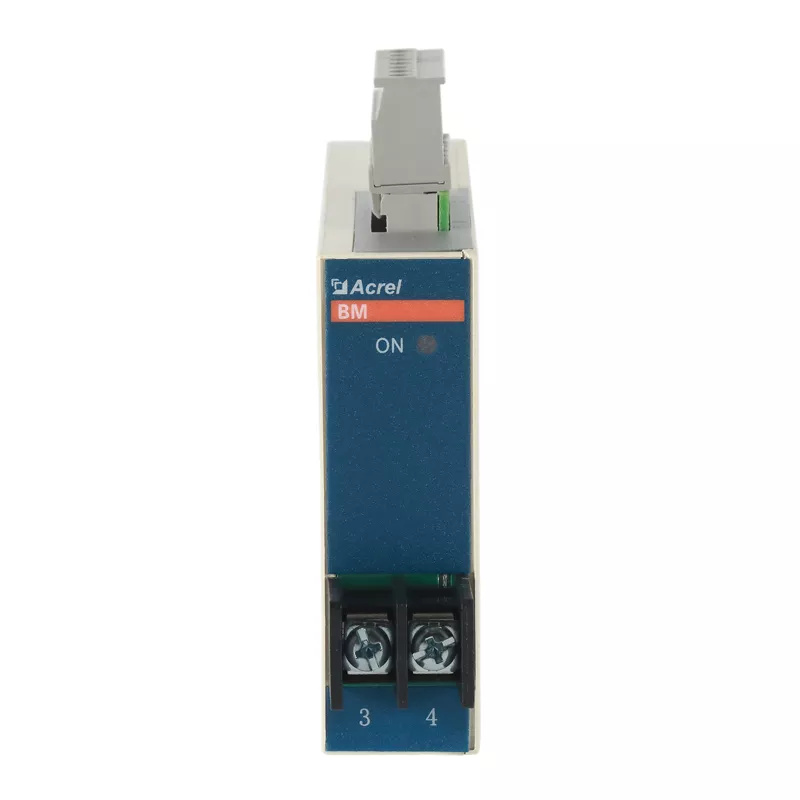

BM-DV/I Analog signal isolator

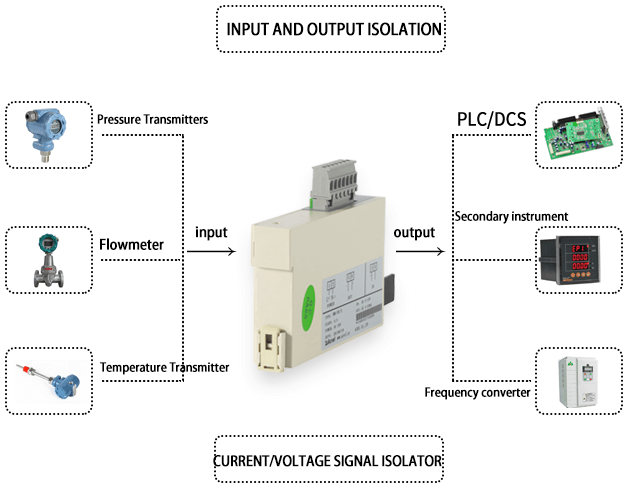

The Acrel BM-DV/I analog signal isolator is a 4-wire isolator with 2 kV, 3-port isolation for all DC and voltage signals, eliminating grounding. It can be equipped with power supplies of various standards. The housing is compact. Mounting is via a TS35 guide rail.
Product info

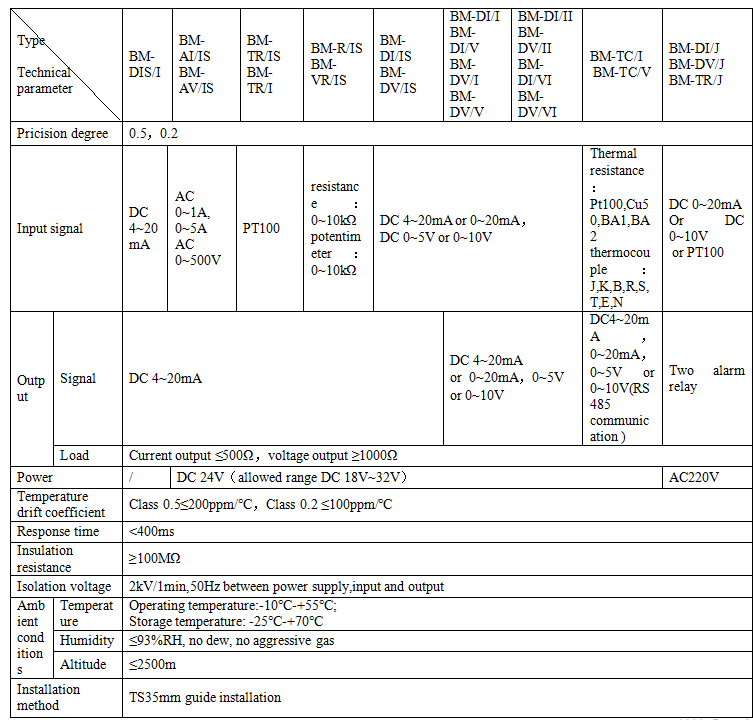

Technical data
| Technical parameters | index | |||
| Entrance | input area |
Current 4-20mA, 0-1mA, 0-20mA
Voltage: 0-1V, 0-5V, 0-10V, 0-75mV, etc.
|
||
| Impedance |
Current: 0(4)-20mA, 100Ω
0-1mA, 1kΩ, voltage≥100Ω
|
|||
| Overload |
Current: 100mA or 1W
Storm voltage: 50V at 0-10V
|
|||
| output | Output area |
DC 4~20mA
|
||
| Load |
<500 Ω
|
|||
| Zero point adjustment |
5%
|
|||
| Span adjustment |
5%
|
|||
| Protection | Short-circuit protection | |||
| Power supply |
Area
|
DC voltage: 8.5-40VDC, normally 24VDC/2W | ||
| Max. current |
24mA
|
|||
| Other | Accuracy/Linearity | Max. 0.5 % of the full span | ||
| Temperature effect |
≤200ppm/℃
|
|||
| response time |
≤400ms
|
|||
| Insulation voltage | 2kV between input and output | |||
| Operating/storage temperature |
-10℃ ~+55℃/-25 ~+70℃
|
|||
| installation method | With guide rail TS35 | |||
