| DC voltage/current input | |
| Use of magnetic insulation technology | |
| Response time <400 ms | |
| TS35 rail mounting | |
| Plug-in terminals | |
| Temperature drift coefficient: ≤200 ppm/℃ at level 0.5 |

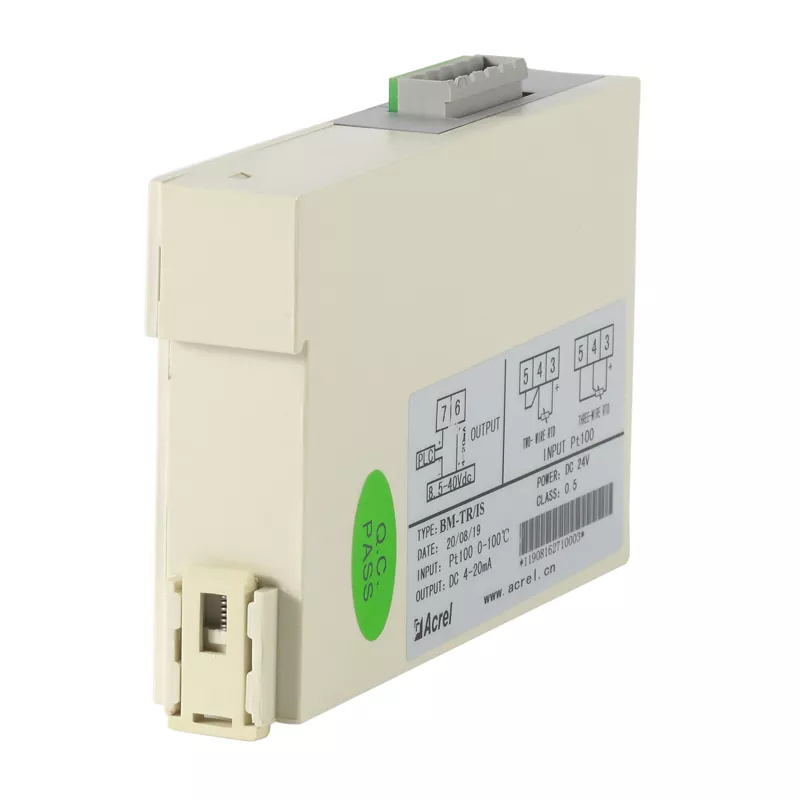

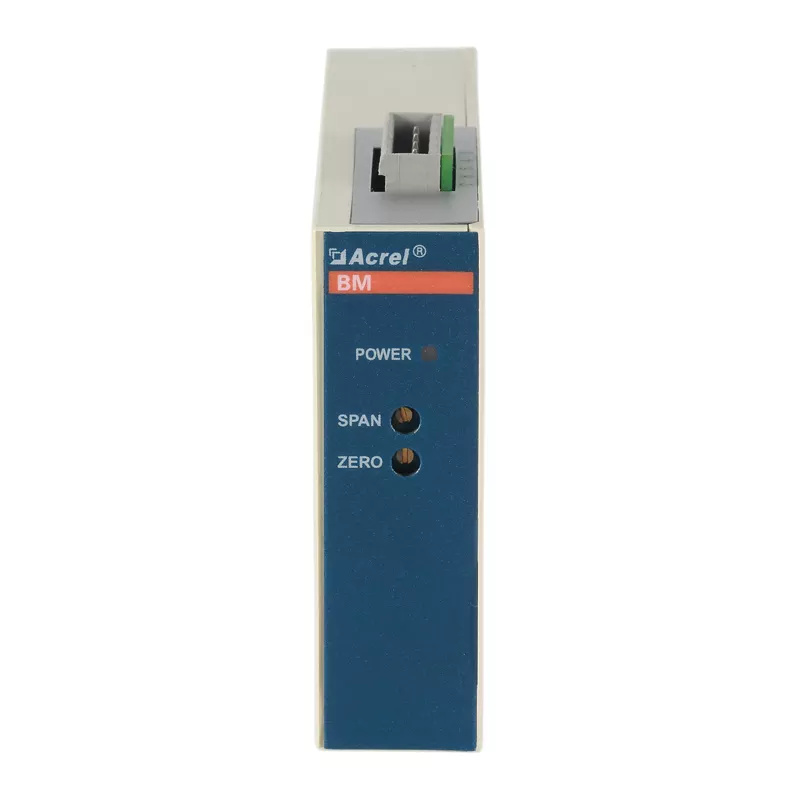

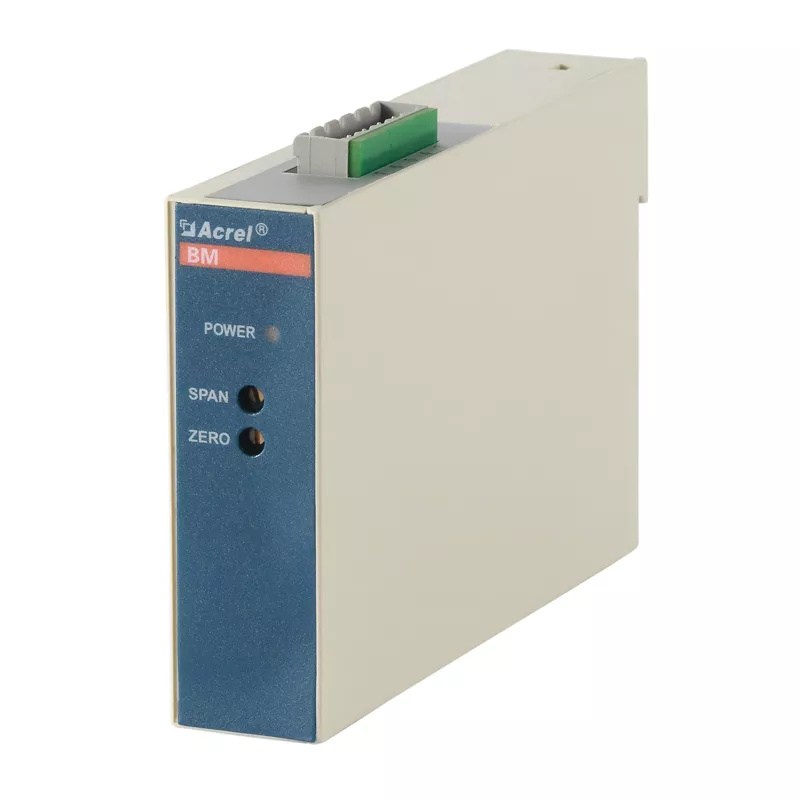

BM-TR/IS Thermal Resistance Isolator BM Analog Signal Isolator

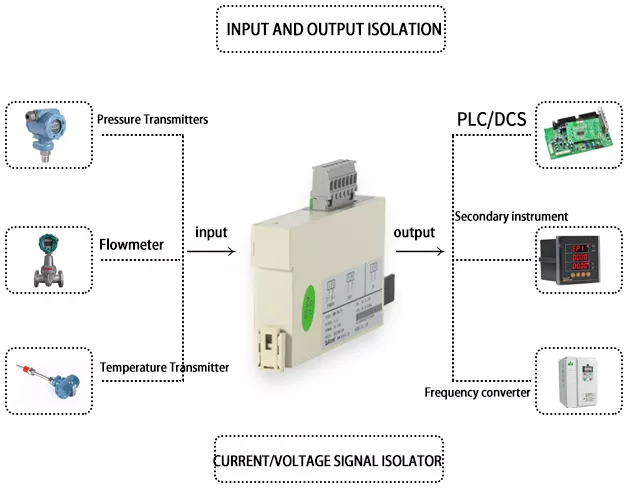

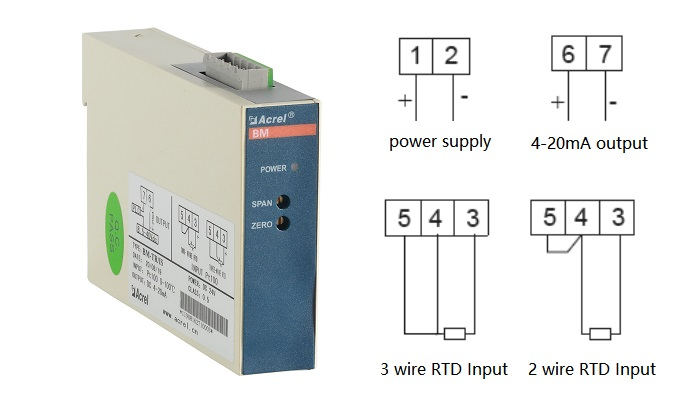

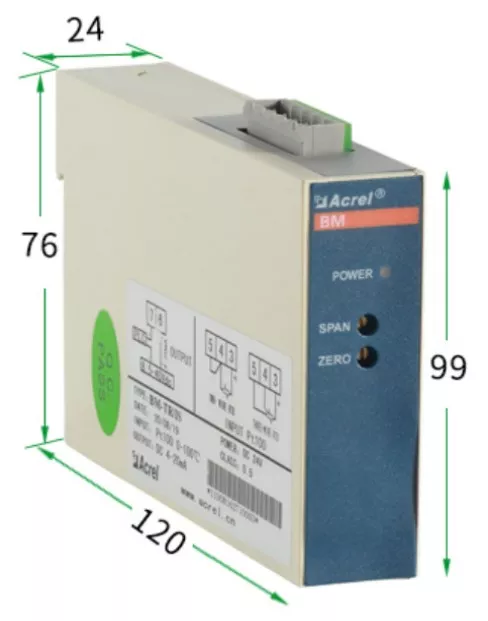

The Acrel BM-TR/IS PT100 input analog signal isolator converts PT100 thermal resistance signals into various standard analog signals such as current and voltage. These can be connected to PCs, PLCs, DCS, etc. for industrial control monitoring. Thanks to its high anti-interference capability, long-distance transmission is not affected by other devices. The input and output selection range is wide and the accuracy is high. Optional power supply is available, and guide rail mounting facilitates inspection and installation. Widely used in various monitoring systems for centralized temperature measurement. The module receives input signals from RTDs and outputs proportional 2 kV isolated 4-20 mA signals. It is equipped with surge protection, making it suitable for harsh conditions.
Product info

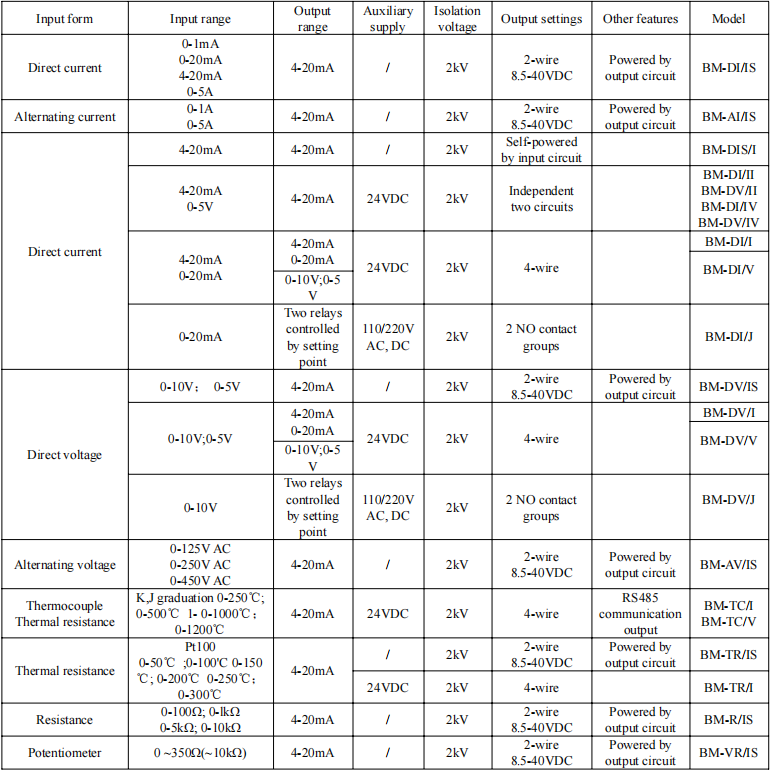

Technical data
| Technical parameters | index | |||
| Entrance | input area |
Current 4-20mA, 0-1mA, 0-20mA
Voltage: 0-1V, 0-5V, 0-10V, 0-75mV, etc.
|
||
| Impedance |
Current: 0(4)-20mA, 100Ω
0-1mA, 1kΩ, voltage≥100Ω
|
|||
| Overload |
Current: 100mA or 1W
Storm voltage: 50V at 0-10V
|
|||
| output | Output area |
DC 4~20mA
|
||
| Load |
<500 Ω
|
|||
| Zero point adjustment |
5%
|
|||
| Span adjustment |
5%
|
|||
| Protection | Short-circuit protection | |||
| Power supply |
Area
|
DC voltage: 8.5-40VDC, normally 24VDC/2W | ||
| Max. current |
24mA
|
|||
| Other | Accuracy/Linearity | Max. 0.5 % of the full span | ||
| Temperature effect |
≤200ppm/℃
|
|||
| response time |
≤400ms
|
|||
| Insulation voltage | 2kV between input and output | |||
| Operating/storage temperature |
-10℃ ~+55℃/-25 ~+70℃
|
|||
| installation method | With guide rail TS35 | |||
