Precision distribution monitoring solution for IDC

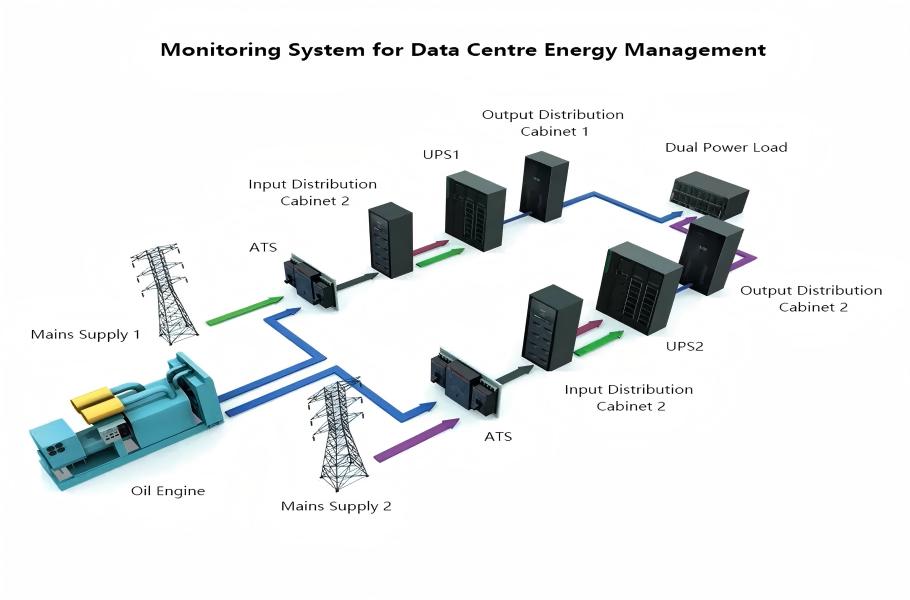

With the rapid development of data centers, energy management and power supply design have become critical areas of focus. An efficient and reliable data center power distribution solution requires improving data center and power efficiency and reducing equipment energy consumption. To achieve energy savings in the data center, the generated power must first be monitored, and there are many load circuits within a data center. Traditional meters cannot meet the requirements in terms of cost, size, installation, construction, and inspection. Therefore, multi-circuit monitoring devices are necessary for centralized monitoring.

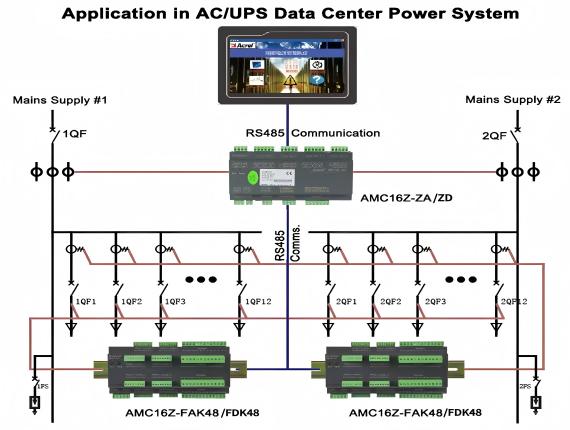

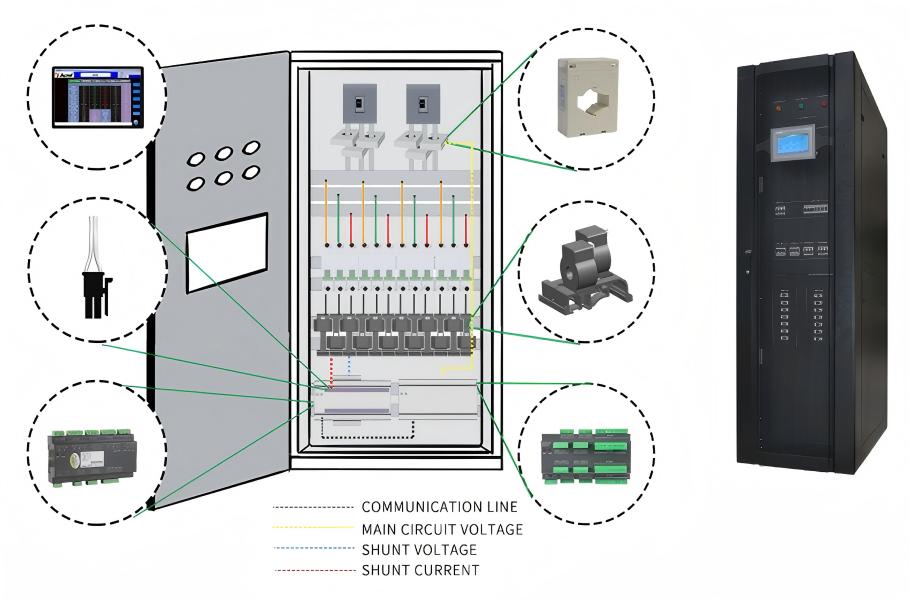

AMC's precision monitoring solution is designed for the monitoring requirements of power supply cabinets and develops a complete solution for AC systems (AC 220V) and DC systems (DC -48V/240V/336V).

• End-of-line performance monitoring in the data center
• Multi-channel power distribution boxes

Advantages

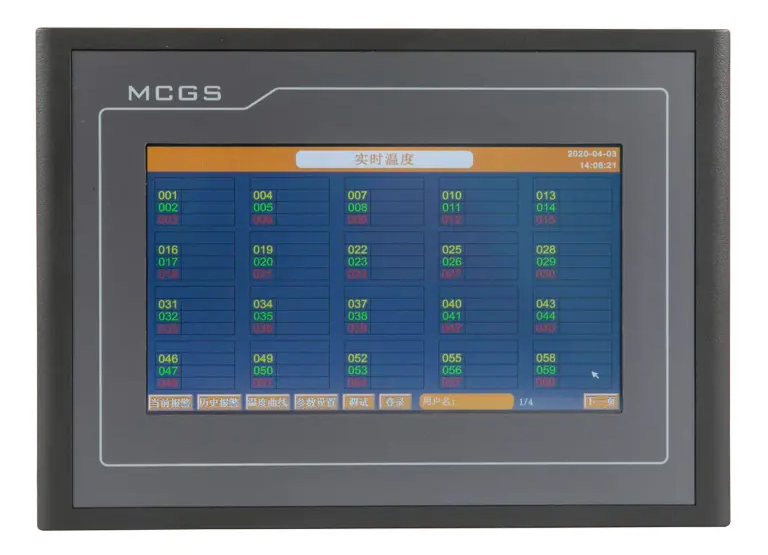

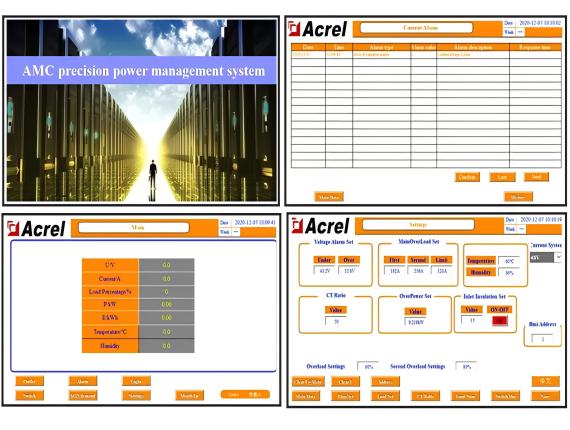

  • ATP007kt ATP010kt HMI:

    ● 7 or 10 inch touchscreen
    ● Real-time monitoring and display of voltage, current, power, energy, power quality, switch status, waveform, etc. of the busbar
    ● Monitoring device alarm, communication and other parameters can be configured on the screen.
    ● 2 RS485 and 1 Ethernet ports, and data can be uploaded via RS485 or RJ45

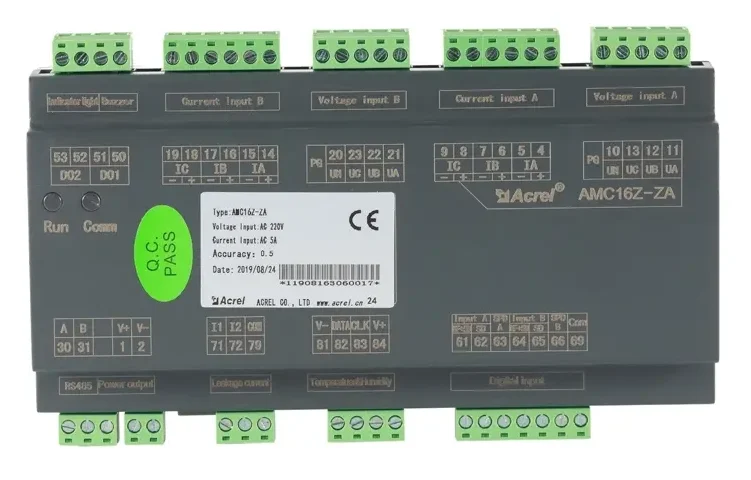

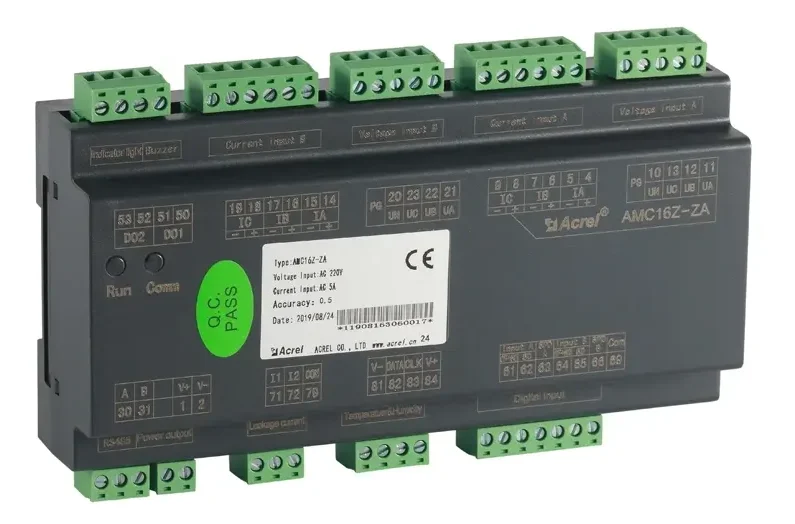

  • AMC16Z-ZA Data Center Monitoring Device:

    ● Specifically designed for power supply management of servers in the data center
    ● A+B independent 2 channels three-phase input
    ● U, I, P, Q, S, PF, kWh, kvarh
    ● 2nd-63 harmonics

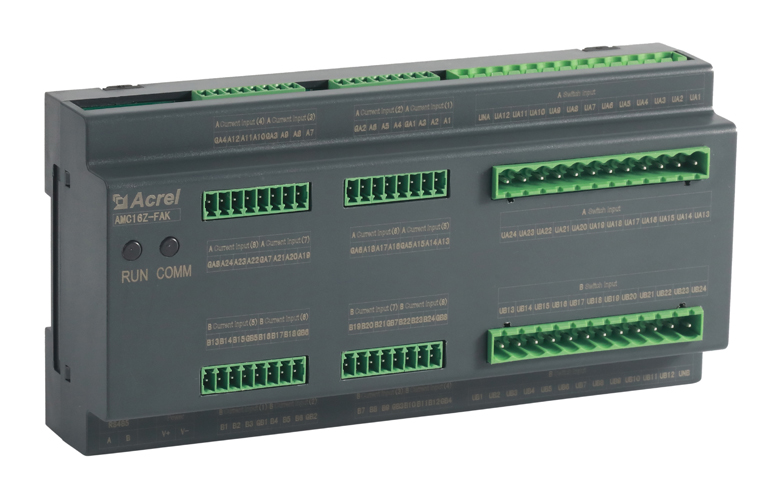

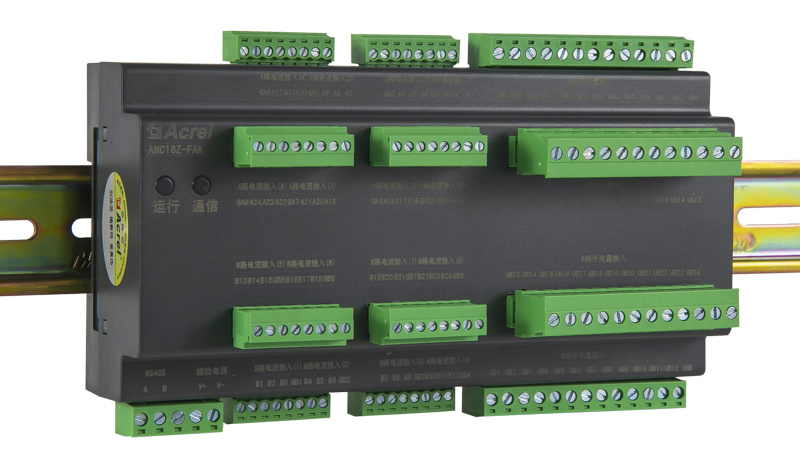

  • AMC16Z-FAK48 Data Center Monitoring Device:

    ● Specifically designed for power supply management of servers in the data center
    ● 24 independent A+B circuits (48 total)
    ● U, I, P, Q, S, PF, kWh, kvarh
    ● 2 31. Harmonic
    ● kWh Class 0.5
    ● DIN 35 mm

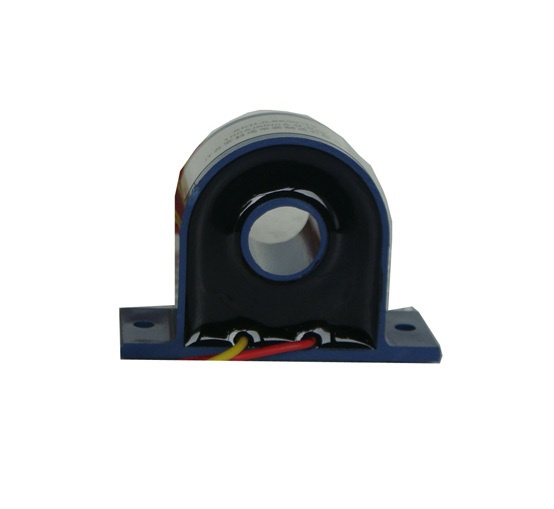

  • AKH-0.66W:

    ● Current ratio: 100A / 50mA
    ● Common specification: 100A / 50mA

  • AMC16Z-ZD DC input line monitoring module:

    ● DIN 35 mm
    ● Measurement: A+B independent circuits, 6DI 2DO, 1 temperature and humidity.

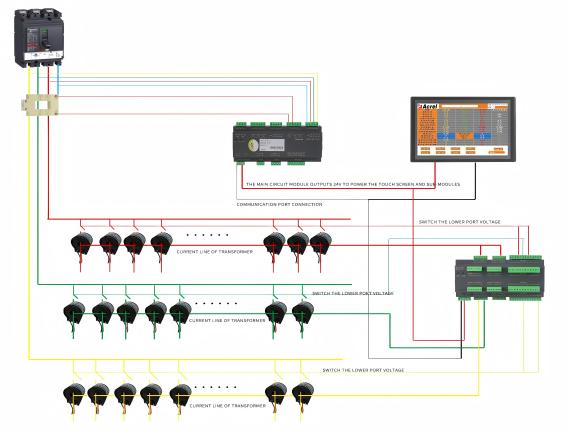

    ● With DC 24V output power supply for output line module and touchscreen.
    ● Communication:RS485 modbus RTU

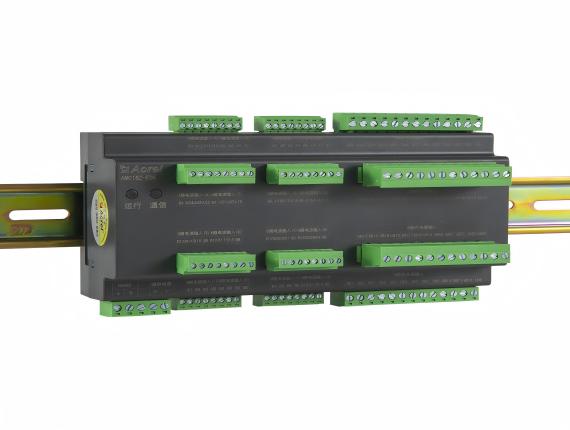

  • AMC16Z-FDK24 AMC16Z-FDK48 DC Output Line Monitoring Module:

    ● DIN 35 mm
    ● Can measure up to 48 circuits DC output lines
    ● DC24V power supply
    ● Communication:RS485 modbus RTU

  • AMC16Z-ZJY DC Input Line Isolation Monitoring Module:

    ● DIN 35 mm
    ● Measurement of A+B independent DC circuit earth insulation resistance of the main bus
    ● DC24V power supply
    ● Communication:RS485 modbus RTU

  • AMC16Z-FJY DC Output Line Insulation Monitoring Module:

    ● DIN 35 mm
    ● Measurement of the earth resistance of the DC output line in 24 circuits

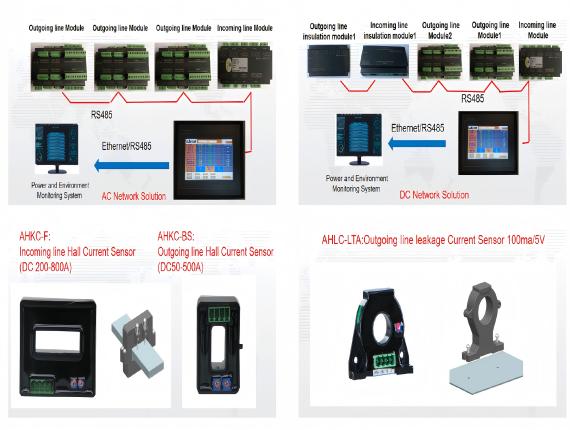

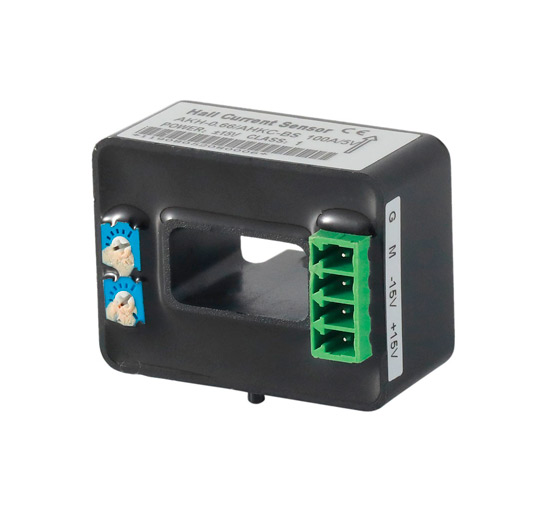

  • AHKC-BS DC output line Hall effect current sensor:

    ● Current ratio: 100A / 5V
    ● Common specification: 100A / 5V
